Carbon Canister & Fuel Lines Assembly (Page 1)

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Carbon Canister & Fuel Lines Assembly (Page 1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433410937 Valve Fuel/ Vapour Purge Electronic $76.66 IN STOCK
Photo Part No Description Price (each) Stock
12023038494AB Bracket, valve and harness $334.44 To Order
Photo Part No Description Price (each) Stock
AY939D667BB Tube Assy, fuel vapor strg constr prg inlet front $250.09 To Order
Photo Part No Description Price (each) Stock
AY939D667DB Tube Assy, fuel vapor strg constr prg inlet $253.01 To Order
Photo Part No Description Price (each) Stock
AY939F911BB Tube Assy, fuel main supply, RH $2,137.67 To Order
Photo Part No Description Price (each) Stock
AY939F911AB Tube Assy, fuel main supply, LH $2,137.67 To Order
Photo Part No Description Price (each) Stock
8D330210017 Clip & Clamp, 9mm x 15mm With Tether Enquire To Order
Photo Part No Description Price (each) Stock
7X439294AA CLIP & CLAMP- 12.5mm x 15mm WITH TETHER $3.44 To Order
Photo Part No Description Price (each) Stock
AY939D667AA Tube Assy, fuel vapor strg constr prg inlet $195.43 To Order
Photo Part No Description Price (each) Stock
AY939S284AA Tube Assy, fuel supply and vaper $948.75 To Order
Photo Part No Description Price (each) Stock
4G439293AA Clip Enquire To Order
View All

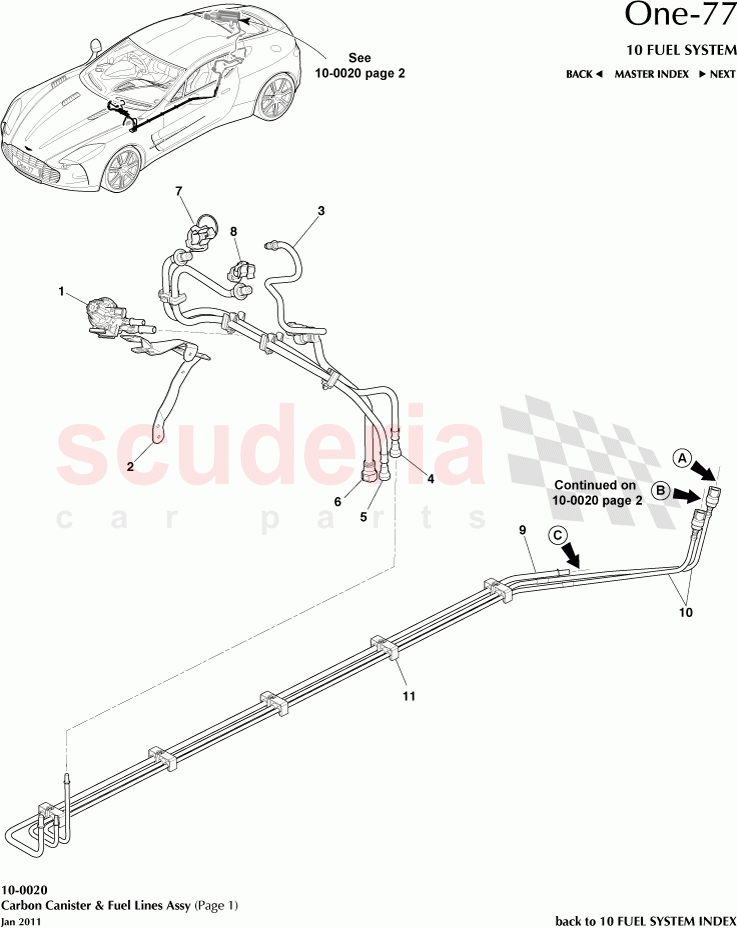

Carbon Canister & Fuel Lines Assembly (Page 1) of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433410937
Valve Fuel/ Vapour Purge Electronic
IN STOCK 		$76.66 1
2 12023038494AB
Bracket, valve and harness 		$334.44 1
3 AY939D667BB
Tube Assy, fuel vapor strg constr prg inlet front 		$250.09 1
4 AY939D667DB
Tube Assy, fuel vapor strg constr prg inlet 		$253.01 1
5 AY939F911BB
Tube Assy, fuel main supply, RH
includes 2 clips 		$2,137.67 1
6 AY939F911AB
Tube Assy, fuel main supply, LH
includes 2 clips 		$2,137.67 1
7 8D330210017
Clip & Clamp, 9mm x 15mm With Tether 		- 1 Enquire
8 7X439294AA
CLIP & CLAMP- 12.5mm x 15mm WITH TETHER 		$3.44 1
9 AY939D667AA
Tube Assy, fuel vapor strg constr prg inlet 		$195.43 1
10 AY939S284AA
Tube Assy, fuel supply and vaper
includes 3 clips 		$948.75 1
11 4G439293AA
Clip 		- 2 Enquire
