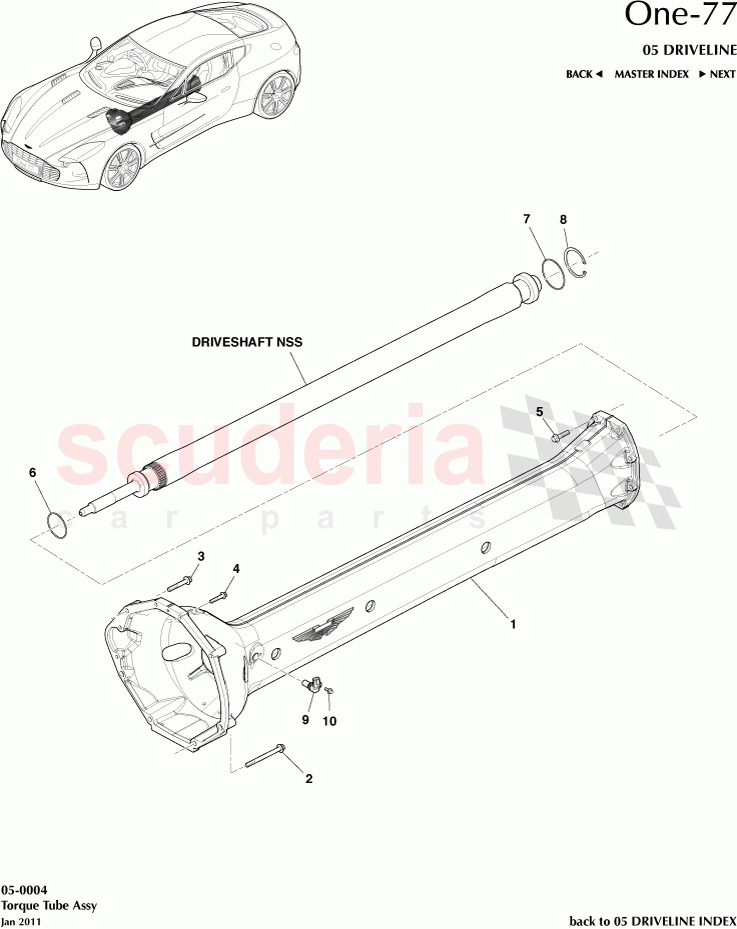

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704776	Bolt M10x120 Hex flg hd	$14.18	To Order

Photo	Part No	Description	Price (each)	Stock
	704767	Bolt M10x60 Hex flg hd	$6.99	To Order

Photo	Part No	Description	Price (each)	Stock
	703195	SCREW M8x40 FLG 8 CHROME FREE	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE	$0.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY538527AA	O-RING (PROP FR)	$7.40	To Order

Photo	Part No	Description	Price (each)	Stock
	HY538527BA	O-RING (PROP RR INR)	$7.58	To Order

Photo	Part No	Description	Price (each)	Stock
	704572	CIRCLIP 4G43-4500-AA_PIA3	$3.76	To Order

Photo	Part No	Description	Price (each)	Stock
	978F12K073AA	Sensor assy, Input Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	$0.31	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY934500AC	Torque Tube and Driveshaft assy	AY934500AC Torque Tube and Driveshaft assy	-	1	Enquire
-	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
1	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
2	704776	Bolt M10x120 Hex flg hd	704776 Bolt M10x120 Hex flg hd to Engine	$14.18	2
3	704767	Bolt M10x60 Hex flg hd	704767 Bolt M10x60 Hex flg hd to Engine	$6.99	4
4	703195	SCREW M8x40 FLG 8 CHROME FREE IN STOCK	703195 SCREW M8x40 FLG 8 CHROME FREE to Engine IN STOCK	$0.53	2
5	703192	SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE IN STOCK	703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE to Transmission IN STOCK	$0.78	8
6	HY538527AA	O-RING (PROP FR)	HY538527AA O-RING (PROP FR)	$7.40	1
7	HY538527BA	O-RING (PROP RR INR)	HY538527BA O-RING (PROP RR INR)	$7.58	1
8	704572	CIRCLIP 4G43-4500-AA_PIA3	704572 CIRCLIP 4G43-4500-AA_PIA3	$3.76	1
9	978F12K073AA	Sensor assy, Input Speed	978F12K073AA Sensor assy, Input Speed	-	1	Enquire
10	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head Input Speed Sensor IN STOCK	$0.31	1
