Rear Suspension Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Rear Suspension Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD435A971AB KNUCKLE REAR WHL LH $1,696.71 To Order
Photo Part No Description Price (each) Stock
AD432B663AA Suspension Hub and Bearing $818.27 To Order
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $24.46 IN STOCK
Photo Part No Description Price (each) Stock
AY935B531AA Arm Assy, lower, rear suspension, LH $1,031.00 To Order
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $19.40 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.25 IN STOCK
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $5.99 IN STOCK
Photo Part No Description Price (each) Stock
AD435K978AA ECCENTRIC BOLT M12 x 90 $30.08 IN STOCK
Photo Part No Description Price (each) Stock
4G433B237CA Washer, M14 eccentric $9.75 ARRIVING SOON
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.13 IN STOCK
Photo Part No Description Price (each) Stock
AY935K743AA Arm Assy, upper, rear suspension, LH $1,010.12 To Order
Photo Part No Description Price (each) Stock
AD33487029AA Bolt, M12 x 110, Hex Flange Head $8.75 IN STOCK
Photo Part No Description Price (each) Stock
703181 BOLT M12 X 85 HEX FLANGE CHROME FREE $11.17 IN STOCK
Photo Part No Description Price (each) Stock
BG435B551AA Arm Assy, Rear Toe Control $277.91 To Order
Photo Part No Description Price (each) Stock
AD435K978AA ECCENTRIC BOLT M12 x 90 $30.08 IN STOCK
View All

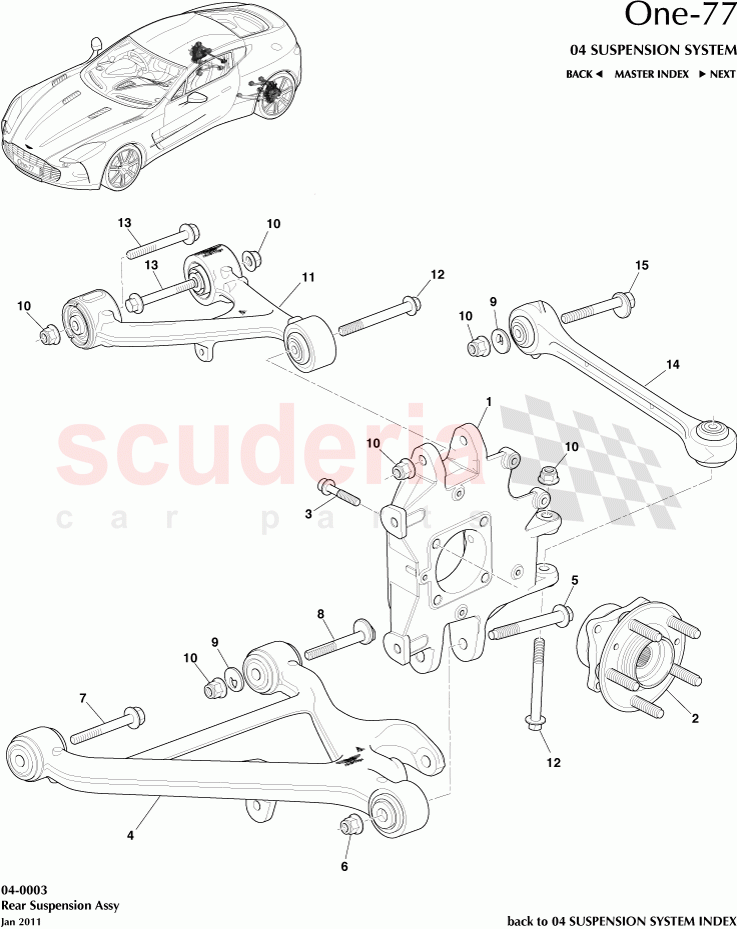

Rear Suspension Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD435A970AB
KNUCKLE REAR WHL RH 		$1,696.71 1
- AY935B530AA
Arm Assy, lower, rear suspension, RH 		$1,031.00 1
- AY935K742AA
Arm Assy, upper, rear suspension, RH 		$1,010.12 1
1 AD435A971AB
KNUCKLE REAR WHL LH 		$1,696.71 1
2 AD432B663AA
Suspension Hub and Bearing 		$818.27 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
IN STOCK 		$24.46 8
4 AY935B531AA
Arm Assy, lower, rear suspension, LH 		$1,031.00 1
5 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
IN STOCK 		$19.40 2
6 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.25 2
7 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$5.99 2
8 AD435K978AA
ECCENTRIC BOLT M12 x 90
IN STOCK 		$30.08 2
9 4G433B237CA
Washer, M14 eccentric
ARRIVING SOON 		$9.75 2
10 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.13 12
11 AY935K743AA
Arm Assy, upper, rear suspension, LH 		$1,010.12 1
12 AD33487029AA
Bolt, M12 x 110, Hex Flange Head
IN STOCK 		$8.75 2
13 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE
IN STOCK 		$11.17 4
14 BG435B551AA
Arm Assy, Rear Toe Control 		$277.91 2
15 AD435K978AA
ECCENTRIC BOLT M12 x 90
IN STOCK 		$30.08 2
