Aston Martin DBS V12 - Cooler, Hoses, and Reservoir (RHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433R700AB Reservoir and Cap Assembly $164.57 To Order
Photo Part No Description Price (each) Stock
4G4334006AA Cap assy, power steering reservoir Enquire To Order
Photo Part No Description Price (each) Stock
4G433489AC BRACKET ASSY - PAS RESERVOIR $52.24 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
8D333A713AB RETURN HOSE COOLER TO RESERVOIR $470.56 To Order
Photo Part No Description Price (each) Stock
8D333F558BC RETURN HOSE GEAR TO COOLER RHD $528.50 To Order
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE $5.34 To Order
Photo Part No Description Price (each) Stock
701349 Clamp, Hose 20 Dia $0.92 To Order
Photo Part No Description Price (each) Stock
4G436C727AA HOSE CLIP (RAYMOND 81442) $2.05 To Order
Photo Part No Description Price (each) Stock
8D333D746AB COOLING LOOP POWER STEERING $557.09 To Order
Photo Part No Description Price (each) Stock
4G433E525AA RESERVOIR TO PUMP SUCTION $110.25 To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R $2.87 To Order
Photo Part No Description Price (each) Stock
4G433A719BE Hose Assy, PAS Pressure Line, Pump to Gear, RHD $879.91 To Order
Photo Part No Description Price (each) Stock
699711 ‘P Clip, 23 x 15 x M6 $1.81 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE $2.11 IN STOCK
Photo Part No Description Price (each) Stock
4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE $89.18 To Order
View All

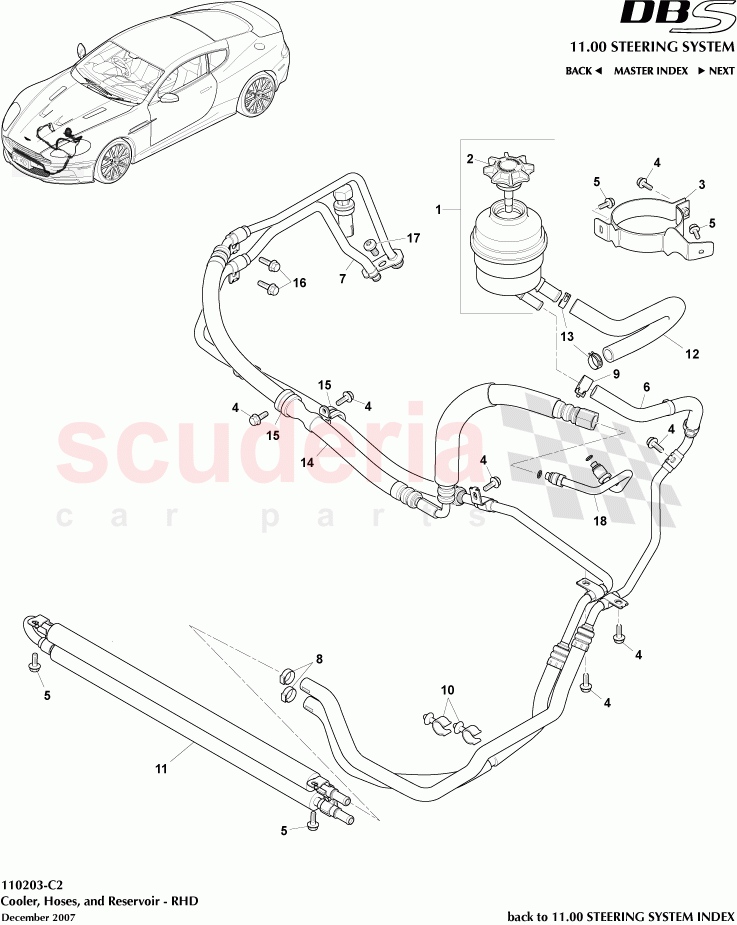

Cooler, Hoses, and Reservoir (RHD) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly 		$164.57 1
2 4G4334006AA
Cap assy, power steering reservoir 		- 1 Enquire
3 4G433489AC
BRACKET ASSY - PAS RESERVOIR 		$52.24 1
4 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 5
5 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
6 8D333A713AB
RETURN HOSE COOLER TO RESERVOIR 		$470.56 1
7 8D333F558BC
RETURN HOSE GEAR TO COOLER RHD 		$528.50 1
8 8D3360155AA
CLAMP - PAS HOSE 		$5.34 2
9 701349
Clamp, Hose 20 Dia 		$0.92 1
10 4G436C727AA
HOSE CLIP (RAYMOND 81442) 		$2.05 2
11 8D333D746AB
COOLING LOOP POWER STEERING 		$557.09 1
12 4G433E525AA
RESERVOIR TO PUMP SUCTION 		$110.25 1
13 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R 		$2.87 2
14 4G433A719BE
Hose Assy, PAS Pressure Line, Pump to Gear, RHD 		$879.91 1
15 699711
‘P Clip, 23 x 15 x M6 		$1.81 2
16 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 4
17 703141
SCREW M8 x 16 CHROME FREE
IN STOCK 		$2.11 1
18 4G433494AA
PUMP OUTLET TUBE - HIGH PRESSURE
Includes O rings 		$89.18 1
