Aston Martin DBS V12 - Manual Transaxle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91793 MANUAL TRANSMISSION $13,805.08 To Order
Photo Part No Description Price (each) Stock
4G432710611 HOUSING-DIFFERENTIAL $4,609.75 To Order
Photo Part No Description Price (each) Stock
702815 BOLT M8 x 30 $4.74 To Order
Photo Part No Description Price (each) Stock
4G432710606 COVER - DIFFERENTIAL $1,454.88 To Order
Photo Part No Description Price (each) Stock
702815 BOLT M8 x 30 $4.74 To Order
Photo Part No Description Price (each) Stock
4G432710607 SEAL - COVER $112.79 To Order
Photo Part No Description Price (each) Stock
4G432710605 Bearing, Differential Output $288.11 To Order
Photo Part No Description Price (each) Stock
702813 SHIM $4.00 To Order
Photo Part No Description Price (each) Stock
4G432710603 Bearing, Differential Output Shaft $191.49 To Order
Photo Part No Description Price (each) Stock
4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 $69.71 IN STOCK
Photo Part No Description Price (each) Stock
4G432710482 O Ring, 2.62 x 75.87 $11.30 IN STOCK
Photo Part No Description Price (each) Stock
4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND $90.19 To Order
Photo Part No Description Price (each) Stock
702812 Bolt, M6 x 16, Hex Flange Head $1.12 To Order
Photo Part No Description Price (each) Stock
4G432710600 OUTPUT SHAFT - LEFT SIDE DIF $1,118.18 To Order
Photo Part No Description Price (each) Stock
702814 SHIM $155.70 To Order
Photo Part No Description Price (each) Stock
4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 $69.02 IN STOCK
Photo Part No Description Price (each) Stock
4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF $816.50 To Order
Photo Part No Description Price (each) Stock
4G432710490 Filter, Oil $187.36 IN STOCK
Photo Part No Description Price (each) Stock
4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) $39.19 IN STOCK
Photo Part No Description Price (each) Stock
702821 Washer, 5.3 x 0.5 $3.84 To Order
Photo Part No Description Price (each) Stock
4G432710492 Screw, M5 x 12 $2.91 To Order
Photo Part No Description Price (each) Stock
702817 Set Screw, M8 x 10 $6.51 To Order
Photo Part No Description Price (each) Stock
4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) $47.99 IN STOCK
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $38.51 IN STOCK
Photo Part No Description Price (each) Stock
702818 PLUG $3.13 To Order
Photo Part No Description Price (each) Stock
4G432710609 Pipe, trans cooling, 90° Enquire To Order
Photo Part No Description Price (each) Stock
4G432710502 O Ring, 2.69 x 9.92 $1.64 To Order
Photo Part No Description Price (each) Stock
4G432710493 PLUG - OIL LEVEL M22 $13.10 IN STOCK
Photo Part No Description Price (each) Stock
4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) $38.51 IN STOCK
Photo Part No Description Price (each) Stock
4G432710488 Adaptor, Breather $87.82 To Order
Photo Part No Description Price (each) Stock
4G437A245CA TUBE ASSY - MAN TRANSMISSION BREATHE $16.51 To Order
Photo Part No Description Price (each) Stock
701575 Clip, Trans Breather Pipe $0.66 To Order
Photo Part No Description Price (each) Stock
6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT $10,085.97 To Order
Photo Part No Description Price (each) Stock
4G4319G506BA Grease, Input Shaft Spline $24.88 To Order
6G3375106AA/S OIL-MAN TRANS 1 ltr Enquire To Order
702822 BOLT M6 x 50 $5.07 To Order
View All

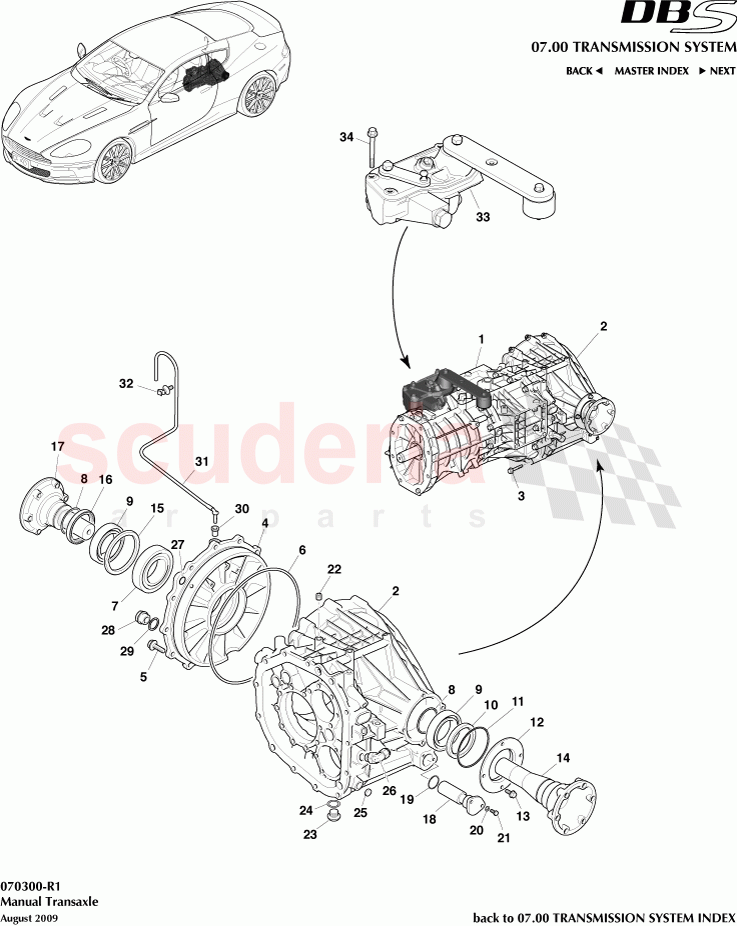

Manual Transaxle of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91793
MANUAL TRANSMISSION 		$13,805.08 1
2 4G432710611
HOUSING-DIFFERENTIAL 		$4,609.75 1
3 702815
BOLT M8 x 30
Trans to Diff 		$4.74 13
4 4G432710606
COVER - DIFFERENTIAL 		$1,454.88 1
5 702815
BOLT M8 x 30 		$4.74 12
6 4G432710607
SEAL - COVER 		$112.79 1
7 4G432710605
Bearing, Differential Output 		$288.11 1
8 702813
SHIM 		$4.00 2
9 4G432710603
Bearing, Differential Output Shaft 		$191.49 2
10 4G432710483
Seal, Differential Output Shaft, Left, 55 x 72 x 8
IN STOCK 		$69.71 1
11 4G432710482
O Ring, 2.62 x 75.87
IN STOCK 		$11.30 1
12 4G432710602
BEARING - DIF OUTPUT SHAFT LEFT HAND 		$90.19 1
13 702812
Bolt, M6 x 16, Hex Flange Head 		$1.12 4
14 4G432710600
OUTPUT SHAFT - LEFT SIDE DIF 		$1,118.18 1
15 702814
SHIM 		$155.70 1
16 4G432710604
Seal, Differential Output Shaft RH, 55 x 70 x 8
IN STOCK 		$69.02 1
17 4G432710601
OUTPUT SHAFT - RIGHT SIDE DIF 		$816.50 1
18 4G432710490
Filter, Oil
IN STOCK 		$187.36 1
19 4G432710491PK
O RING 2.62 x 20.63 (PACK OF 10)
IN STOCK 		$39.19 1
20 702821
Washer, 5.3 x 0.5 		$3.84 2
21 4G432710492
Screw, M5 x 12 		$2.91 2
22 702817
Set Screw, M8 x 10 		$6.51 6
23 4G432710244
DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)
IN STOCK 		$47.99 1
24 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10)
IN STOCK 		$38.51 1
25 702818
PLUG 		$3.13 1
26 4G432710609
Pipe, trans cooling, 90° 		- 1 Enquire
27 4G432710502
O Ring, 2.69 x 9.92 		$1.64 1
28 4G432710493
PLUG - OIL LEVEL M22
IN STOCK 		$13.10 1
29 4G432710245PK
Copper Washer Drain Plug 22x28x1.5 (Pack of 10)
IN STOCK 		$38.51 1
30 4G432710488
Adaptor, Breather 		$87.82 1
31 4G437A245CA
TUBE ASSY - MAN TRANSMISSION BREATHE 		$16.51 1
32 701575
Clip, Trans Breather Pipe 		$0.66 1
33 6G337N372AB
BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT 		$10,085.97 1
34 4G4319G506BA
Grease, Input Shaft Spline 		$24.88 -
34 6G3375106AA/S
OIL-MAN TRANS 1 ltr 		- - Enquire
34 702822
BOLT M6 x 50 		$5.07 2
