Parking Brake (Manual) (Lhd)

Aston Martin DBS V12

Find Your Part

Aston Martin DBS V12 - Parking Brake (Manual) (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433011489 Handbrake Lever Assembly, LHD $391.22 To Order
1R12302928AC HANDLE LEVER H/BRAKE $179.58 To Order
4G432C637AA Lever assy $319.71 To Order
Photo Part No Description Price (each) Stock
4G432A686AB Bracket Assembly, Handbrake Lever, LHD $794.97 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
8D332853AB Cable and Conduit $330.01 To Order
Photo Part No Description Price (each) Stock
6G33439136AA Trunnion, Handbrake Cable $2.07 To Order
Photo Part No Description Price (each) Stock
6G332K605AA PIN PIVOT CABLE HANDBRAKE $1.56 To Order
Photo Part No Description Price (each) Stock
6G33100063AAPK FIXER-PUSH ON 6mm SHAFT PACK OF 10 $11.80 To Order
Photo Part No Description Price (each) Stock
AD232C464BB Caliper, Handbrake, RH $596.21 To Order
AD232C465BB Caliper, Handbrake, LH $596.21 To Order
Photo Part No Description Price (each) Stock
4G432C564CA Bolt M10x87 Hex flange, secures EPB $2.81 IN STOCK
Photo Part No Description Price (each) Stock
8D332B296BA KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER $54.42 To Order
4G43224259BA SPRING - ANTI RATTLE HANDBRAKE CAL RH $62.97 IN STOCK
4G432B296BA PINS - PAD RETAINING $58.80 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
694891 P-CLIP $3.62 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.11 IN STOCK
Photo Part No Description Price (each) Stock
4G436510059PK Firtree Clip, for pad wear lead (Pack of 100) $61.63 IN STOCK
3784688 Switch, Handbrake $311.62 IN STOCK
8D33229047BA Pigtail Enquire To Order
View All

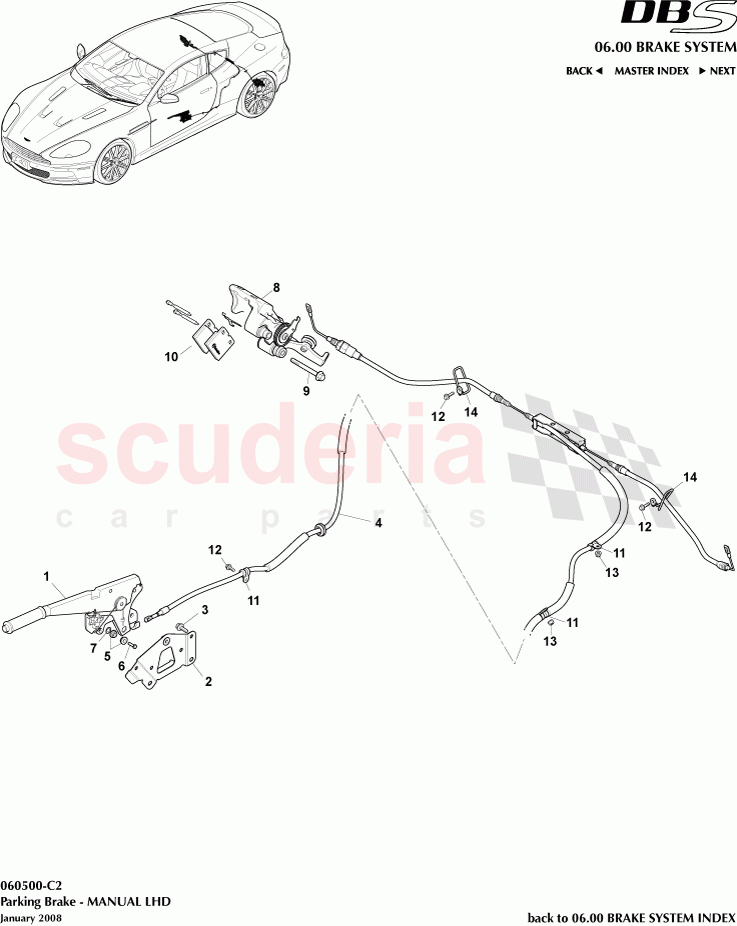

Parking Brake (Manual) (LHD) of Aston Martin Aston Martin DBS V12 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433011489
Handbrake Lever Assembly, LHD 		$391.22 1
1 1R12302928AC
HANDLE LEVER H/BRAKE 		$179.58 1
1 4G432C637AA
Lever assy 		$319.71 1
2 4G432A686AB
Bracket Assembly, Handbrake Lever, LHD 		$794.97 1
3 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 6
4 8D332853AB
Cable and Conduit 		$330.01 1
5 6G33439136AA
Trunnion, Handbrake Cable 		$2.07 2
6 6G332K605AA
PIN PIVOT CABLE HANDBRAKE 		$1.56 1
7 6G33100063AAPK
FIXER-PUSH ON 6mm SHAFT PACK OF 10 		$11.80 1
8 AD232C464BB
Caliper, Handbrake, RH 		$596.21 1
8 AD232C465BB
Caliper, Handbrake, LH 		$596.21 1
9 4G432C564CA
Bolt M10x87 Hex flange, secures EPB
IN STOCK 		$2.81 4
10 8D332B296BA
KIT PARK BRAKE PAD SPRING AND PIN PER CALIPER
(1 per caliper) 		$54.42 2
10 4G43224259BA
SPRING - ANTI RATTLE HANDBRAKE CAL RH
(1 per caliper)
IN STOCK 		$62.97 2
10 4G432B296BA
PINS - PAD RETAINING
(2 per caliper)
IN STOCK 		$58.80 4
10 4G432C562BB
PADS HANDBRAKE
(per axle)
IN STOCK 		$161.04 1
10 4G432W065AA
BOOT - SLIDING PIN 		$43.95 2
11 694891
P-CLIP 		$3.62 4
12 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 3
13 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 3
14 4G436510059PK
Firtree Clip, for pad wear lead (Pack of 100)
IN STOCK 		$61.63 1
14 3784688
Switch, Handbrake
IN STOCK 		$311.62 1
14 8D33229047BA
Pigtail 		- 2 Enquire
