Torque Tube/ Driveshaft- Auto

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Torque Tube/ Driveshaft- AUTO

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D334500BA TORQUE TUBE & PROPSH AFT ASY AUTO/TT $5,628.29 To Order
Photo Part No Description Price (each) Stock
699134 Dowel, Hollow $16.50 To Order
Photo Part No Description Price (each) Stock
4G434602BE DRIVESHAFT ASSEMBLY $4,523.13 To Order
Photo Part No Description Price (each) Stock
4G436922AA RETAINING CLIP $10.45 To Order
Photo Part No Description Price (each) Stock
704575 O RING 4G43-7B084-BA_PIA2 $3.18 To Order
Photo Part No Description Price (each) Stock
704574 O RING 4G43-7B084-BA_PIA1 $3.43 To Order
Photo Part No Description Price (each) Stock
HY538527AA O-RING (PROP FR) $7.43 To Order
Photo Part No Description Price (each) Stock
703192 SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE $0.79 IN STOCK
Photo Part No Description Price (each) Stock
703195 SCREW M8x40 FLG 8 CHROME FREE $0.54 IN STOCK
Photo Part No Description Price (each) Stock
703191 BOLT-M10x1.5x65 FLG CHROME FREE $0.88 IN STOCK
Photo Part No Description Price (each) Stock
4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE $6.11 IN STOCK
View All

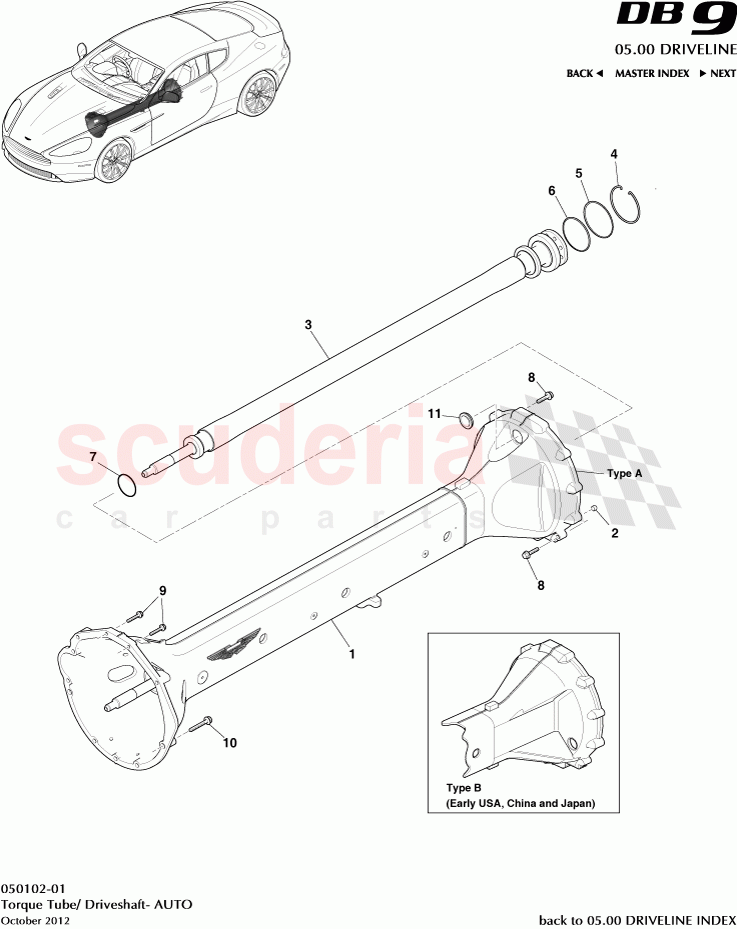

Torque Tube/ Driveshaft- AUTO of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- NSS
 Seat Belt Loops Frt/ Rear and Left/Right
Type B, Please Order Torque Tube 8D33-4500-BA With Flexplate 4G43-6K375-AA and 11 Screws 4G43-HYG10549-AA 		- 1 Enquire
- AD234602AB
Propeller shaft, Manual
Type B 		$6,602.96 1
- 704572
CIRCLIP 4G43-4500-AA_PIA3
Type B 		$3.78 1
- HY538527BA
O-RING (PROP RR INR)
Type B 		$7.62 2
1 8D334500BA
TORQUE TUBE & PROPSH AFT ASY AUTO/TT
Type A, Includes Items 2 to 7 		$5,628.29 1
2 699134
Dowel, Hollow 		$16.50 2
3 4G434602BE
DRIVESHAFT ASSEMBLY
Type A 		$4,523.13 1
4 4G436922AA
RETAINING CLIP
Type A 		$10.45 1
5 704575
O RING 4G43-7B084-BA_PIA2
Type A 		$3.18 1
6 704574
O RING 4G43-7B084-BA_PIA1
Type A 		$3.43 1
7 HY538527AA
O-RING (PROP FR)
Type A Qty 1, Type B Qty 2 		$7.43 A/R
8 703192
SCREW M10 x 40 FLANGE HEAD GRD 8 CHROME FREE
IN STOCK 		$0.79 12
9 703195
SCREW M8x40 FLG 8 CHROME FREE
IN STOCK 		$0.54 2
10 703191
BOLT-M10x1.5x65 FLG CHROME FREE
IN STOCK 		$0.88 7
11 4G434210021
PLUG-T/CONV ACCESS TORQUE TUBE
IN STOCK 		$6.11 2
