Sat Navigation Assembly

Aston Martin DB9 (2013-2016)

Find Your Part

Aston Martin DB9 (2013-2016) - Sat Navigation Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CG4310E990AD Support Assembly, Nav Screen $1,109.60 To Order
Photo Part No Description Price (each) Stock
CG4318C918AB Bezel, Navigation Screen $512.95 To Order
Photo Part No Description Price (each) Stock
CG433G4610AA Foam Strip, Navigation Screen Assy $1.30 To Order
Photo Part No Description Price (each) Stock
3790075 Cable Tie, 290mm $0.11 IN STOCK
Photo Part No Description Price (each) Stock
8D3319H474AA ANTI RATTLE HOLDER TRANSMISSION VEHICLE $0.55 To Order
Photo Part No Description Price (each) Stock
CG4356382AB SCREW-M4 x 22 PAN CLLR 6 LOBE TR $3.90 IN STOCK
Photo Part No Description Price (each) Stock
692054 WASHER M4 PLAIN MED MILD STEEL ZINC PLT $0.31 IN STOCK
Photo Part No Description Price (each) Stock
706901 SCREW M4 x 6 PAN $0.42 IN STOCK
Photo Part No Description Price (each) Stock
703178 M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE $0.33 IN STOCK
View All

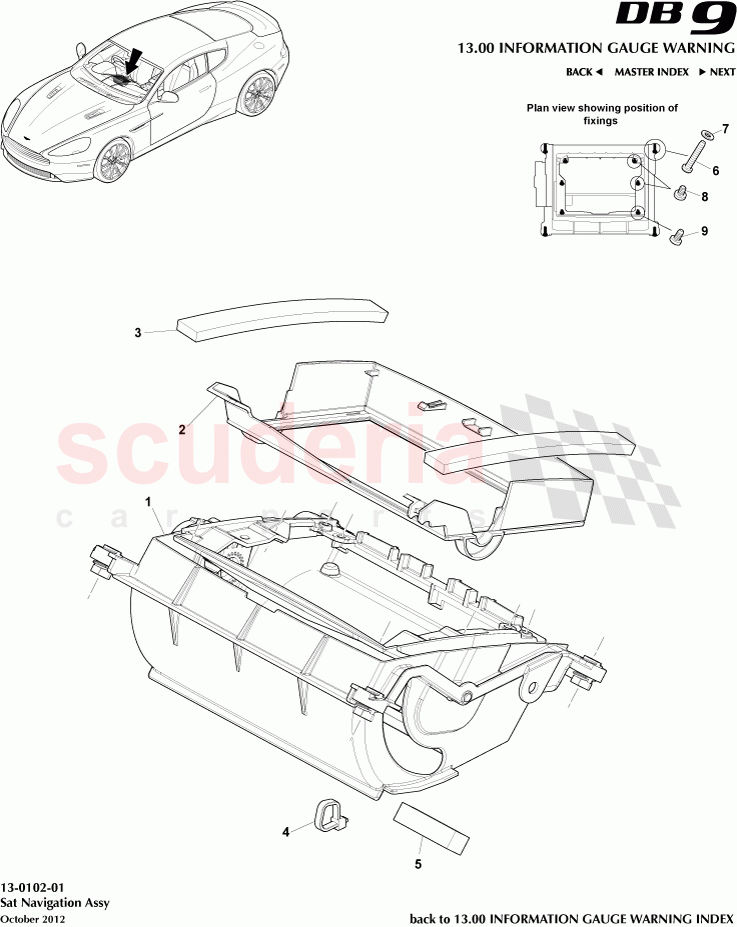

Sat Navigation Assembly of Aston Martin Aston Martin DB9 (2013-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CG4310E990AD
Support Assembly, Nav Screen 		$1,109.60 1
2 CG4318C918AB
Bezel, Navigation Screen 		$512.95 1
3 CG433G4610AA
Foam Strip, Navigation Screen Assy 		$1.30 2
4 3790075
Cable Tie, 290mm
IN STOCK 		$0.11 1
5 8D3319H474AA
ANTI RATTLE HOLDER TRANSMISSION VEHICLE 		$0.55 1
6 CG4356382AB
SCREW-M4 x 22 PAN CLLR 6 LOBE TR
IN STOCK 		$3.90 4
7 692054
WASHER M4 PLAIN MED MILD STEEL ZINC PLT
IN STOCK 		$0.31 4
8 706901
SCREW M4 x 6 PAN
IN STOCK 		$0.42 4
9 703178
M4 x 8MM SCREW THRD FORMING OAN HEAD TORQ CHROME FREE
IN STOCK 		$0.33 2
