Aston Martin DB9 (2004-2012) - Hoses and Cooler Reservoir (LHD)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433R700AB Reservoir and Cap Assembly $164.18 To Order
Photo Part No Description Price (each) Stock
4G4334006AA Cap assy, power steering reservoir Enquire To Order
Photo Part No Description Price (each) Stock
4G433489AC BRACKET ASSY - PAS RESERVOIR $52.12 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G433E525AA RESERVOIR TO PUMP SUCTION $109.98 To Order
Photo Part No Description Price (each) Stock
4G433A713AC ASSY TUBE PAS RETURN - LHD $239.80 To Order
Photo Part No Description Price (each) Stock
FD333A719AB HOSE ASY PAS PMP LHD $1,633.79 To Order
Photo Part No Description Price (each) Stock
4G433494AA PUMP OUTLET TUBE - HIGH PRESSURE $88.97 To Order
Photo Part No Description Price (each) Stock
4G433D746AC COOLING LOOP (LHD) POWER STEERING $321.31 To Order
Photo Part No Description Price (each) Stock
4G436C727AA HOSE CLIP (RAYMOND 81442) $2.04 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE $2.10 IN STOCK
703141 SCREW M8 x 16 CHROME FREE $2.10 IN STOCK
Photo Part No Description Price (each) Stock
701349 Clamp, Hose 20 Dia $0.92 To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R $2.86 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.24 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE $5.33 To Order
Photo Part No Description Price (each) Stock
4G43105050AA CLIP - DOUBLE REYMOND REF 80476 $2.31 To Order
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.28 To Order
Photo Part No Description Price (each) Stock
694891 P-CLIP $3.62 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
8D333A713AB RETURN HOSE COOLER TO RESERVOIR $469.45 To Order
Photo Part No Description Price (each) Stock
8D333F558AC Hose Return Gear to Cooler LHD $627.71 IN STOCK
Photo Part No Description Price (each) Stock
8D333D746AB COOLING LOOP POWER STEERING $555.78 To Order
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE $5.33 To Order
Photo Part No Description Price (each) Stock
3786250 Edge Protection, Switch Harness, 150mm Enquire To Order
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
View All

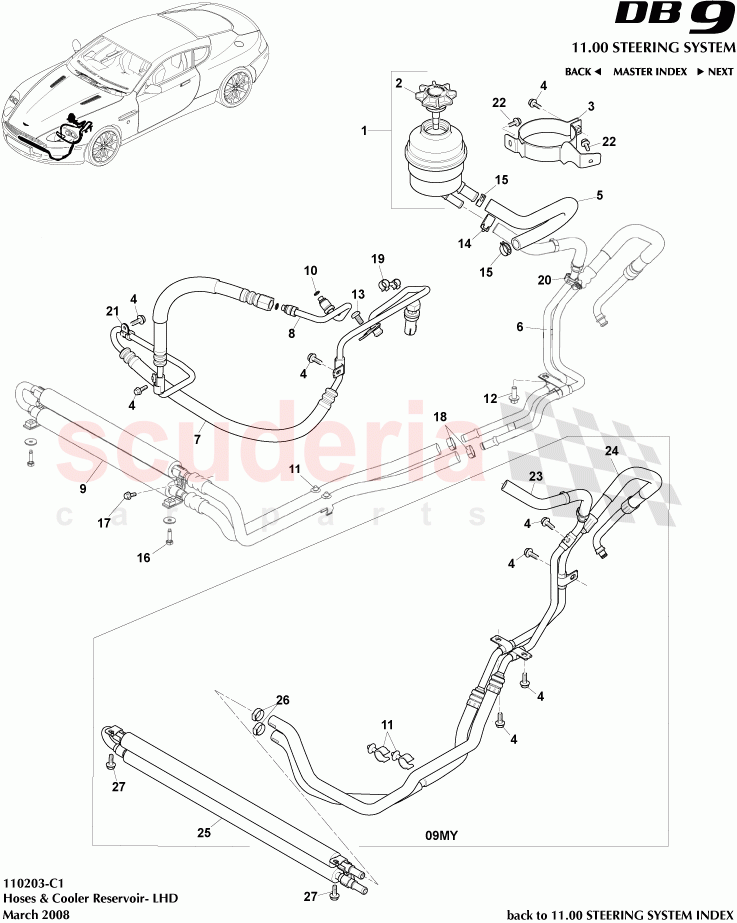

Hoses and Cooler Reservoir (LHD) of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly 		$164.18 1
2 4G4334006AA
Cap assy, power steering reservoir 		- 1 Enquire
3 4G433489AC
BRACKET ASSY - PAS RESERVOIR 		$52.12 1
4 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
08MY From (V) A09110
IN STOCK 		$0.19 3
4 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
07MY
IN STOCK 		$0.19 3
5 4G433E525AA
RESERVOIR TO PUMP SUCTION
Reservoir to Pump 		$109.98 1
6 4G433A713AC
ASSY TUBE PAS RETURN - LHD 		$239.80 1
7 FD333A719AB
HOSE ASY PAS PMP LHD
Pump to GR LH 		$1,633.79 1
8 4G433494AA
PUMP OUTLET TUBE - HIGH PRESSURE 		$88.97 1
9 4G433D746AC
COOLING LOOP (LHD) POWER STEERING 		$321.31 1
11 4G436C727AA
HOSE CLIP (RAYMOND 81442) 		$2.04 3
12 703121
Screw, M8 x 25, Hex Flange Head
08MY From (V) A09110
IN STOCK 		$0.25 6
12 703121
Screw, M8 x 25, Hex Flange Head
07MY
IN STOCK 		$0.25 6
13 703141
SCREW M8 x 16 CHROME FREE
08MY From (V) A09110
IN STOCK 		$2.10 1
13 703141
SCREW M8 x 16 CHROME FREE
07MY
IN STOCK 		$2.10 1
14 701349
Clamp, Hose 20 Dia 		$0.92 1
15 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R 		$2.86 2
16 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.24 2
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 2
18 8D3360155AA
CLAMP - PAS HOSE 		$5.33 2
19 4G43105050AA
CLIP - DOUBLE REYMOND REF 80476 		$2.31 1
20 701180
Clip, 14 x 4, Push In 		$1.28 1
21 694891
P-CLIP 		$3.62 1
22 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
23 8D333A713AB
RETURN HOSE COOLER TO RESERVOIR
09MY 		$469.45 1
24 8D333F558AC
Hose Return Gear to Cooler LHD
09MY
IN STOCK 		$627.71 1
25 8D333D746AB
COOLING LOOP POWER STEERING
09MY 		$555.78 1
26 8D3360155AA
CLAMP - PAS HOSE
09MY 		$5.33 2
27 3786250
Edge Protection, Switch Harness, 150mm
Not illustrated 		- 1 Enquire
27 703265
Screw, M6 x 16, Hex Flange Head
09MY
IN STOCK 		$0.32 2
