Fuel Tank

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Fuel Tank

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG433411297 TNK & CNSTR ASY FUEL $5,402.49 To Order
BG433411296 F/TNK & CNSTR KT ROW $5,402.49 To Order
Photo Part No Description Price (each) Stock
4G43M2D28AB FOAM PAD - TANK FRONT $4.54 To Order
Photo Part No Description Price (each) Stock
4G43482550AA FOAM PAD - TANK UPPER $22.62 To Order
Photo Part No Description Price (each) Stock
4G43XC468090AB FOAM PAD - TANK BASE $47.12 To Order
Photo Part No Description Price (each) Stock
4G439D653AA CARBON CANNISTER $335.13 To Order
Photo Part No Description Price (each) Stock
4G439C133A Tie-wrap Enquire To Order
Photo Part No Description Price (each) Stock
4G439A228AB Tube, assy, fuel vap to canister Enquire To Order
Photo Part No Description Price (each) Stock
7G4314407AB FUEL TANK HARNESS $144.54 To Order
4G4314407AE FUEL TANK HARNESS $471.56 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 IN STOCK
Photo Part No Description Price (each) Stock
4G4332133BA Clamp Plate, Fuel Tank $16.23 IN STOCK
Photo Part No Description Price (each) Stock
4G439C055CA COVER - FUEL TANK SERVICE $20.88 To Order
4G439C055AD COVER-FUEL TANK SERVICE $128.90 To Order
Photo Part No Description Price (each) Stock
4G439073AA Gasket, Fuel Tank Service Cover $29.18 IN STOCK
Photo Part No Description Price (each) Stock
4G4332133BA Clamp Plate, Fuel Tank $16.23 IN STOCK
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.55 IN STOCK
Photo Part No Description Price (each) Stock
4G439074CB PLATE ASSY FUEL TANK COVER $138.94 To Order
KY639074CA PLATE ASY FU TANK CV $74.64 To Order
Photo Part No Description Price (each) Stock
KY539073AA GASKET FUEL TANK COVER $38.84 IN STOCK
Photo Part No Description Price (each) Stock
4G439047BB HOS ASY FU/TNK FILL $166.71 To Order
4G433410332 CHECK VALVE FUEL FILL $99.47 To Order
Photo Part No Description Price (each) Stock
702594 CLAMP BOX15 SPRING BAND $10.21 To Order
Photo Part No Description Price (each) Stock
4G439B260AC Pump & Reservoir Assy - Fuel RHS $884.15 To Order
6G339B260CC Fuel Pump and Reservoir RH $948.75 IN STOCK
Photo Part No Description Price (each) Stock
6G339155AB Fuel Filter RH $427.76 IN STOCK
8G439155AA Fuel Filter LH $266.52 IN STOCK
92065 Fuel Filter RHS $387.85 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G439180AB BRACKET - FUEL FILTER $62.11 To Order
Photo Part No Description Price (each) Stock
4G439180BA BRKT FU/CONN RTN $73.66 To Order
Photo Part No Description Price (each) Stock
702082 Bolt, Self Locking, M5 x 16 $1.22 IN STOCK
Photo Part No Description Price (each) Stock
4G439B035AB TUBE ASSY - FUEL VAPOUR LOWER $176.89 To Order
Photo Part No Description Price (each) Stock
4G439B260DA FUEL TANK JET PUMP $166.85 To Order
Photo Part No Description Price (each) Stock
4G439E275AA Sensor - Fuel Tank Sender $109.98 IN STOCK
Photo Part No Description Price (each) Stock
4G439B190BA ROLL OVER VALVE $29.48 IN STOCK
Photo Part No Description Price (each) Stock
4G434090BB HOSE - FUEL/VAPOUR $10.90 To Order
Photo Part No Description Price (each) Stock
4G434090AB HOSE - FUEL/VAPOUR $39.42 To Order
4G439009A Clip, Oetiker Enquire To Order
Photo Part No Description Price (each) Stock
4G439B190AA FUEL LEVEL VENT VALVE $298.28 To Order
Photo Part No Description Price (each) Stock
4G434090CA HOSE - FUEL VAPOUR $15.39 IN STOCK
Photo Part No Description Price (each) Stock
4G439009A Clip, Oetiker Enquire To Order
Photo Part No Description Price (each) Stock
4G439012A Tie warp, fir tree Enquire To Order
Photo Part No Description Price (each) Stock
1R123410013 O RING $22.05 IN STOCK
4G433710041 ELECTRICAL CONNECTOR-6 WAY SUMITOMO $65.78 To Order
View All
Fuel Tank of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BG433411297
TNK & CNSTR ASY FUEL
08MY from (V) A10560 		$5,402.49 1
1 BG433411296
F/TNK & CNSTR KT ROW
09MY 		$5,402.49 1
2 4G43M2D28AB
FOAM PAD - TANK FRONT 		$4.54 5
3 4G43482550AA
FOAM PAD - TANK UPPER 		$22.62 2
4 4G43XC468090AB
FOAM PAD - TANK BASE 		$47.12 1
5 4G439D653AA
CARBON CANNISTER 		$335.13 1
6 4G439C133A
Tie-wrap
Cannister Assy 		- 1 Enquire
7 4G439A228AB
Tube, assy, fuel vap to canister 		- 1 Enquire
8 7G4314407AB
FUEL TANK HARNESS
07MY 		$144.54 1
8 4G4314407AE
FUEL TANK HARNESS
IN STOCK 		$471.56 1
9 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.12 1
10 4G4332133BA
Clamp Plate, Fuel Tank
IN STOCK 		$16.23 1
11 4G439C055CA
COVER - FUEL TANK SERVICE
06MY from (V) A04019 		$20.88 1
11 4G439C055AD
COVER-FUEL TANK SERVICE
05MY 		$128.90 1
12 4G439073AA
Gasket, Fuel Tank Service Cover
IN STOCK 		$29.18 1
13 4G4332133BA
Clamp Plate, Fuel Tank
IN STOCK 		$16.23 4
14 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.55 8
15 4G439074CB
PLATE ASSY FUEL TANK COVER
Includes cover plate gasket 		$138.94 1
15 KY639074CA
PLATE ASY FU TANK CV
Includes cover plate gasket 		$74.64 1
16 KY539073AA
GASKET FUEL TANK COVER
Part of Plate assy, Fuel Tank Cover
IN STOCK 		$38.84 1
17 4G439047BB
HOS ASY FU/TNK FILL 		$166.71 1
17 4G433410332
CHECK VALVE FUEL FILL 		$99.47 1
18 702594
CLAMP BOX15 SPRING BAND 		$10.21 1
19 4G439B260AC
Pump & Reservoir Assy - Fuel RHS
07MY, upto (V) 10559 		$884.15 1
19 6G339B260CC

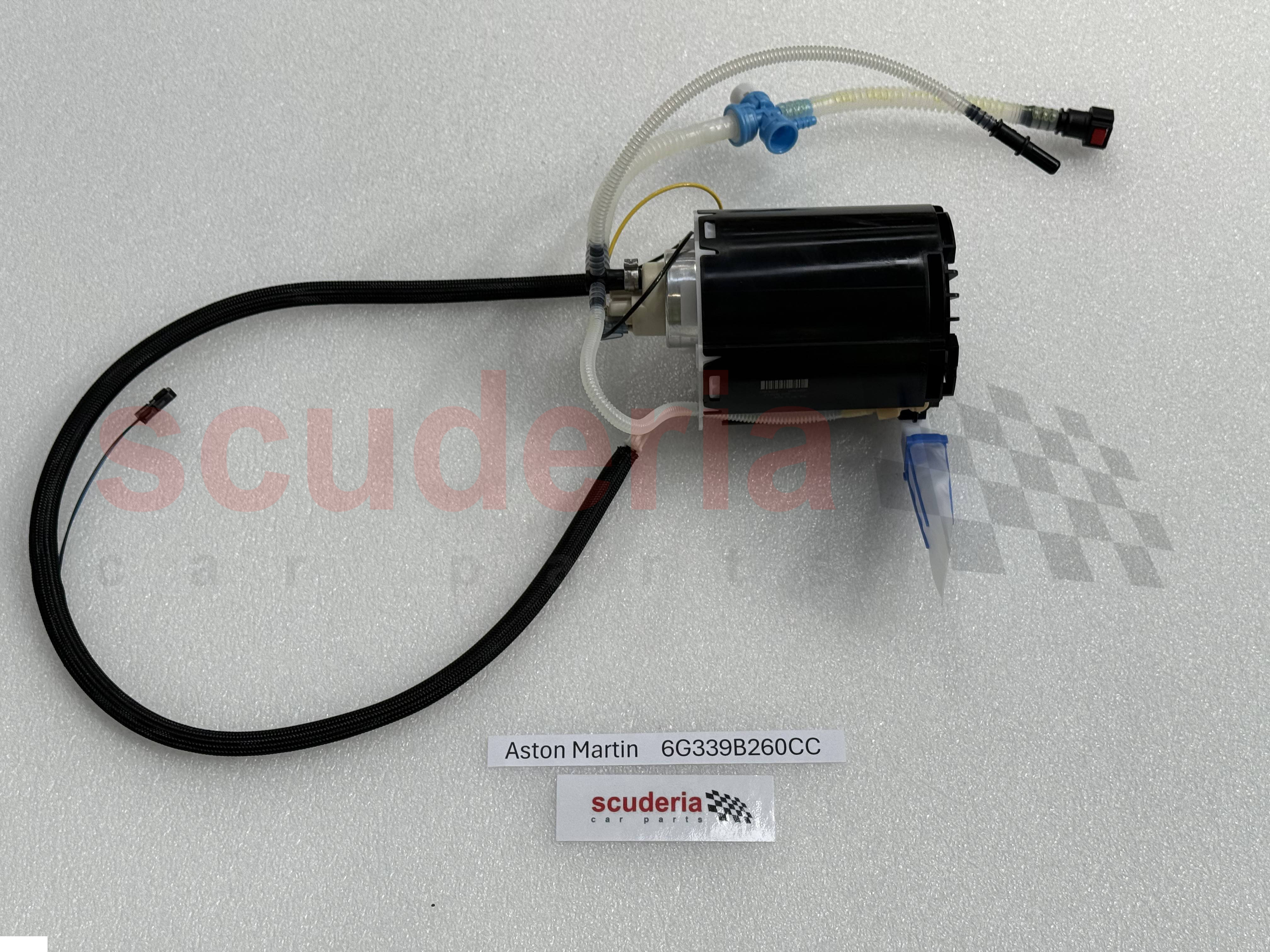

Fuel Pump and Reservoir RH
08MY, From (V) 10560
IN STOCK 		$948.75 1
20 6G339155AB
Fuel Filter RH
From (V) 10560
IN STOCK 		$427.76 2
20 8G439155AA

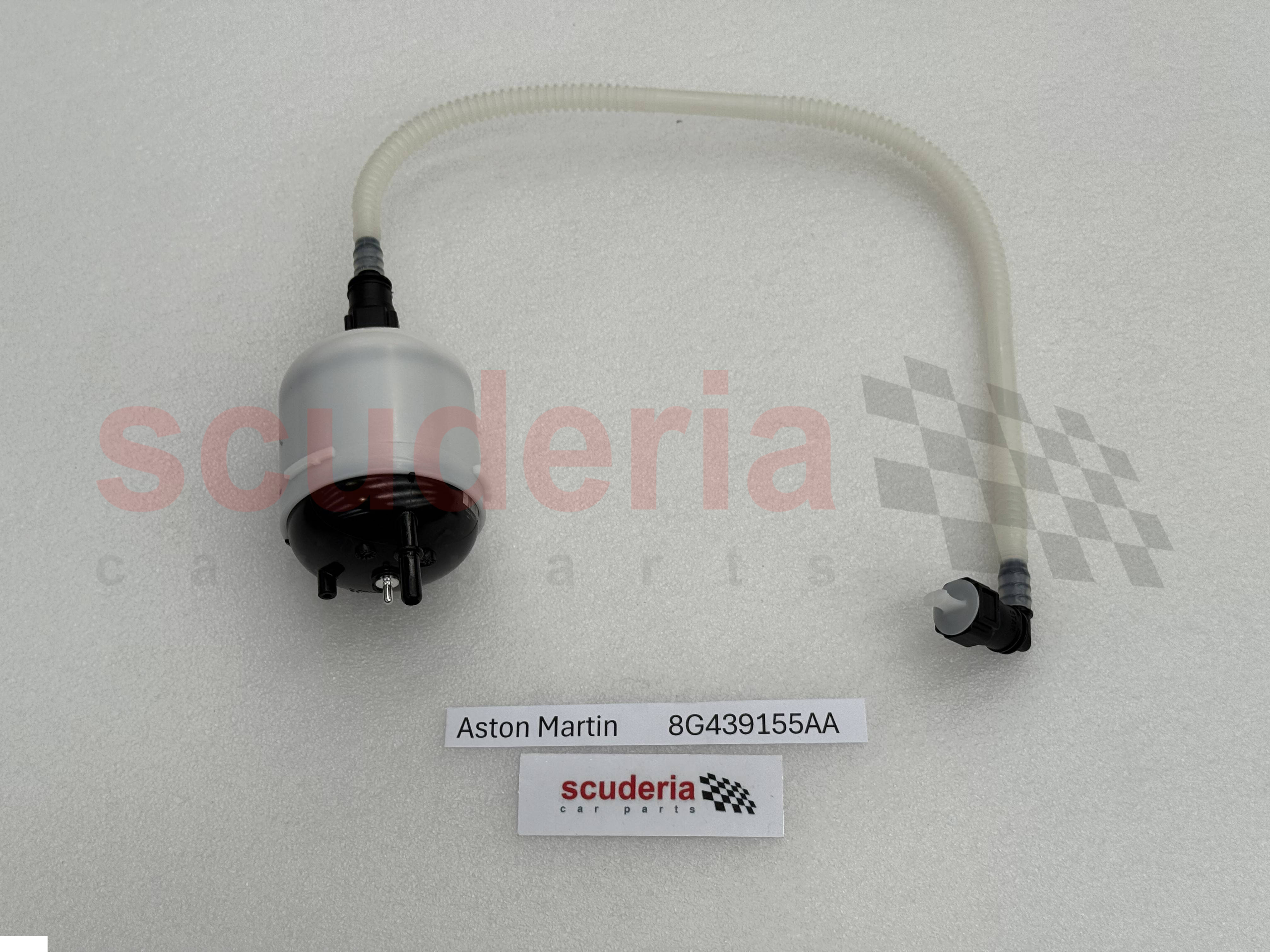

Fuel Filter LH
From (V) 10560
IN STOCK 		$266.52 2
20 92065
Fuel Filter RHS 		$387.85 2
20 92066
Fuel Filter LH 		$289.30 2
21 4G439180AB
BRACKET - FUEL FILTER 		$62.11 2
22 4G439180BA
BRKT FU/CONN RTN
Up to 07MY 		$73.66 2
23 702082
Bolt, Self Locking, M5 x 16
IN STOCK 		$1.22 2
25 4G439B035AB
TUBE ASSY - FUEL VAPOUR LOWER 		$176.89 1
27 4G439B260DA
FUEL TANK JET PUMP 		$166.85 1
28 4G439E275AA

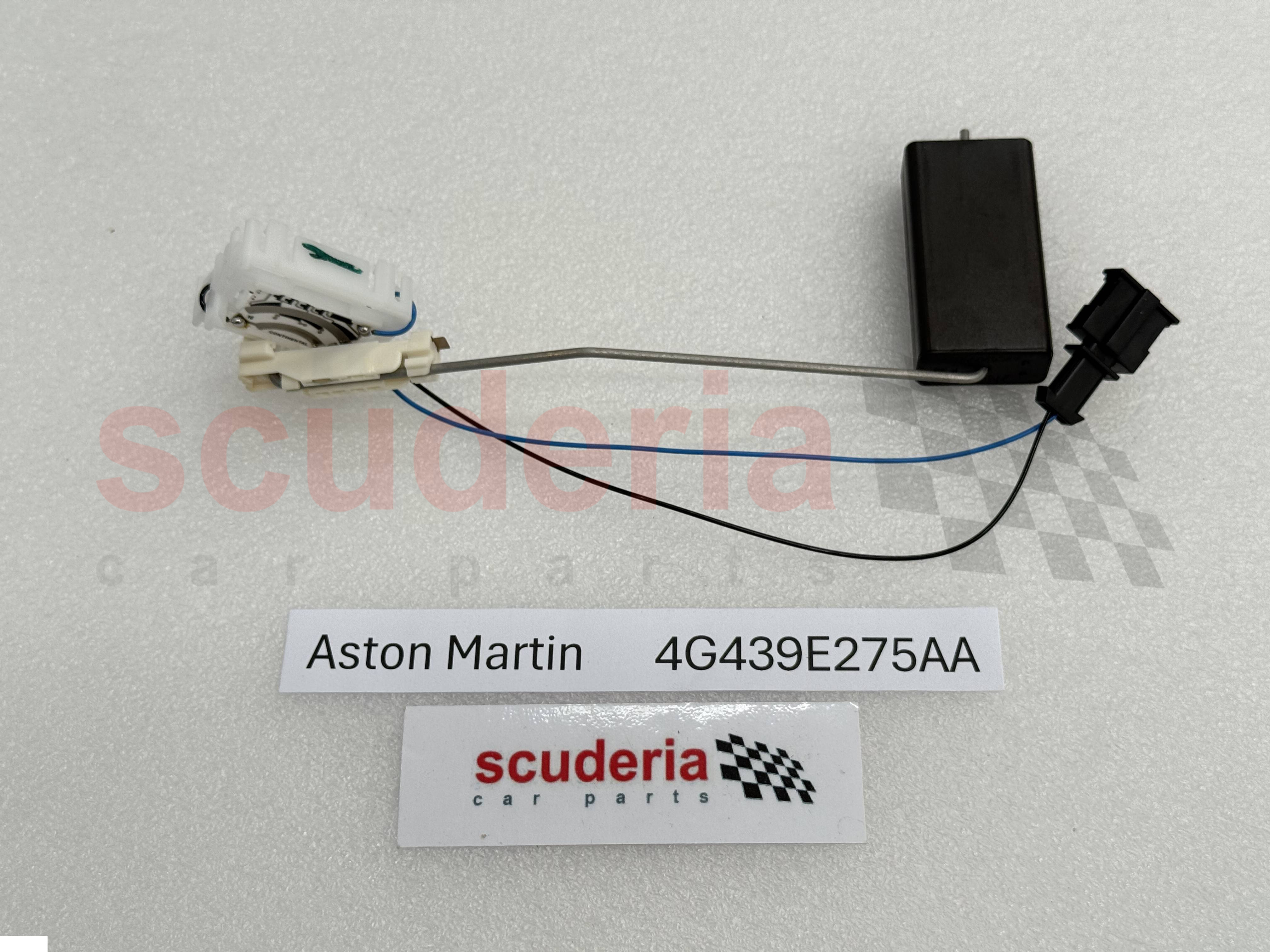

Sensor - Fuel Tank Sender
IN STOCK 		$109.98 1
29 4G439B190BA
ROLL OVER VALVE
IN STOCK 		$29.48 2
30 4G434090BB
HOSE - FUEL/VAPOUR 		$10.90 1
31 4G434090AB
HOSE - FUEL/VAPOUR 		$39.42 1
31 4G439009A
Clip, Oetiker 		- 4 Enquire
32 4G439B190AA
FUEL LEVEL VENT VALVE 		$298.28 1
33 4G434090CA
HOSE - FUEL VAPOUR
IN STOCK 		$15.39 1
34 4G439009A
Clip, Oetiker 		- 2 Enquire
35 4G439012A
Tie warp, fir tree 		- 4 Enquire
36 1R123410013
O RING
Not illustrated
IN STOCK 		$22.05 1
36 4G433710041
ELECTRICAL CONNECTOR-6 WAY SUMITOMO
less โ€˜Oโ€™ ring 		$65.78 4
