Coolant Hoses

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D338333AA HOSE RADIATOR $121.31 IN STOCK
4G438555CA TUB-WTR BYP ASY $411.38 To Order
Photo Part No Description Price (each) Stock
8D338555AB TUBE WATER BYPASS $1,208.79 IN STOCK
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
Photo Part No Description Price (each) Stock
4G438C350CA Hose, Make Up Tube to Bypass Tube $32.22 To Order
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
4G438C350CA Hose, Make Up Tube to Bypass Tube $32.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4319B518BD RADIATOR EXPANSION TANK $485.27 To Order
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
4G4319B518BD RADIATOR EXPANSION TANK $485.27 To Order
Photo Part No Description Price (each) Stock
4G4319B518BD RADIATOR EXPANSION TANK $485.27 To Order
Photo Part No Description Price (each) Stock
1R123710166 Switch, Coolant Level $77.23 ARRIVING SOON
Photo Part No Description Price (each) Stock

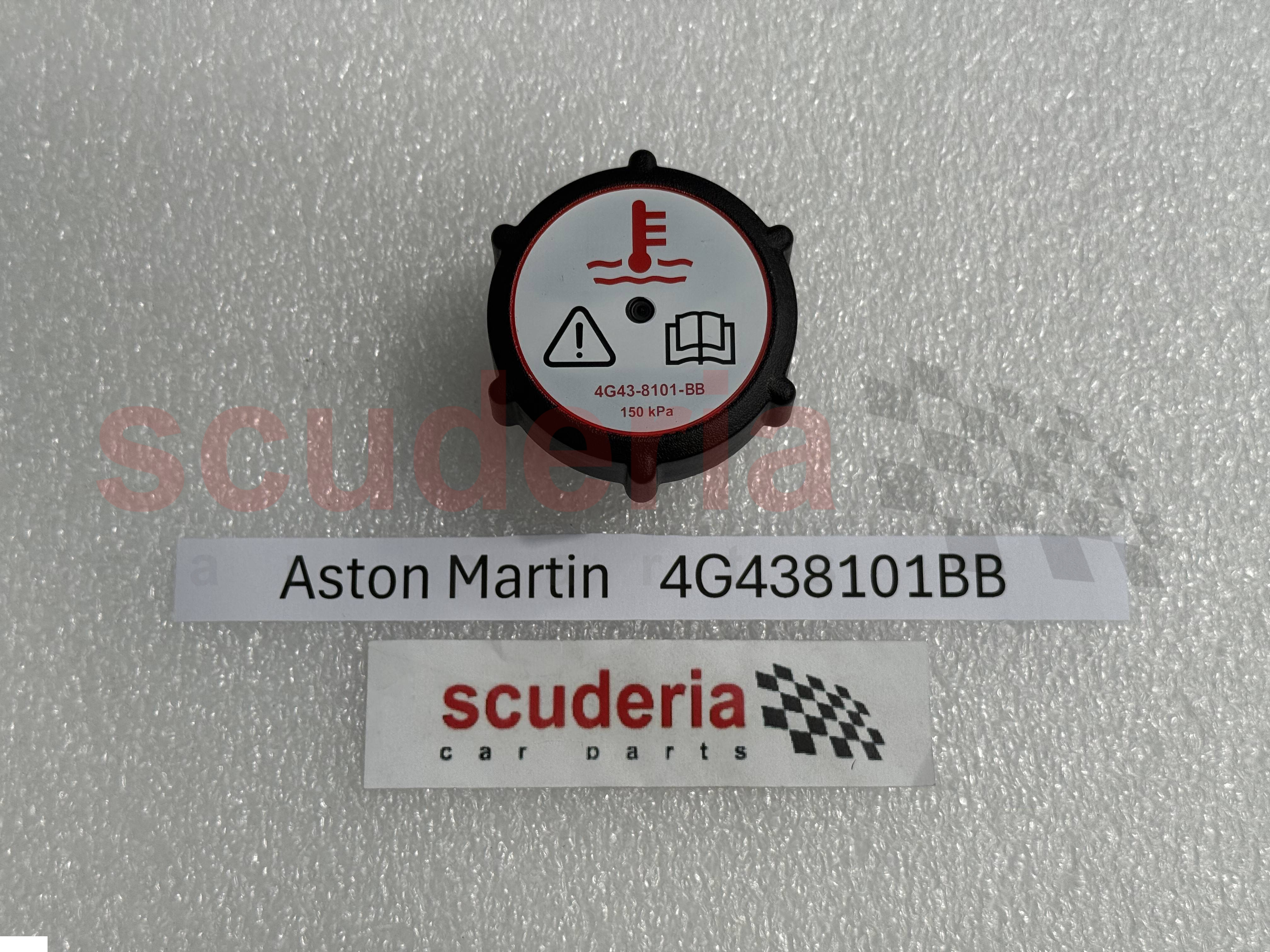

4G438101BB PRESSURE CAP 150KPA $132.80 IN STOCK
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
HY53E804349AA M6 X 14 SCREW HEX HD $0.71 IN STOCK
Photo Part No Description Price (each) Stock
4G438C363CB TUBE RADIATOR DEGAS ASSY $55.30 To Order
703612 Nut & Washer, M6, HVAC to XCB $0.47 IN STOCK
Photo Part No Description Price (each) Stock
4G438C363FC HOSE RAD DEGAS $678.10 To Order
Photo Part No Description Price (each) Stock
4G438063AE Hose, Engine to Supply Tank $87.13 IN STOCK
4G438003CA Hose, Thermo Housing, Cross Over Bleed $68.10 To Order
4G438003BA Pipe assy, Crossover bleed Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G438003EB Pipe, Cross Over Bleed $81.18 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
4G438003CA Hose, Thermo Housing, Cross Over Bleed $68.10 To Order
Photo Part No Description Price (each) Stock
702904 Spring Clamp, Hose, 17 x 15 $1.93 IN STOCK
Photo Part No Description Price (each) Stock
4G4318D334BC HEATER INLET HOSE ASSY - RHD $114.39 To Order
4G4318D334AC HEATER INLET HOSE ASSY - LHD $303.26 To Order
ED238A209AA HOS ASY THERMO UPR $370.29 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4318674EC TUBE ASSY HTR OUTLET $616.22 To Order
AD4318D334AA HOS-HTR INLT ASSY LH $291.38 To Order
AD4318D334BA HOS-HTR INLT ASSY RH $262.19 To Order
Photo Part No Description Price (each) Stock
4G4318D359AC HEATER OUTLET HOSE ASSY - LHD $205.80 To Order
4G4318D359BC HEATER OUTLET HOSE ASSY - RHD $44.85 To Order
4G4318674EC TUBE ASSY HTR OUTLET $616.22 To Order
Photo Part No Description Price (each) Stock
AD4318D359AA HOS-HTR OLET ASSY LH $382.79 To Order
AD4318D359BA HOS-HTR OLET ASSY RH $272.13 To Order
Photo Part No Description Price (each) Stock
4G434867BA Cover assy, bottom Enquire To Order
4G434867AB ENGINE HARNESS COVER BOTTOM - ASSY $68.26 To Order
Photo Part No Description Price (each) Stock
4G436793BB Top Cover, Engine Harness $14.21 IN STOCK
4G434867BC Bottom Cover, Engine Harness $19.30 IN STOCK
Photo Part No Description Price (each) Stock
700229 Bolt, M8 x 35, Hex Flange Head $0.40 To Order
Photo Part No Description Price (each) Stock
AD432A155AA BRACKET - HOSE CLIP $20.54 To Order
Photo Part No Description Price (each) Stock
701345 NUT M6 HEX FLG MTL 8 Enquire To Order
Photo Part No Description Price (each) Stock
4G438C087AC BRACKET - RADIATOR COOL RECEIVER RESERVOIR $132.80 To Order
1R123210271 TANK-COOLANT RECOVERY $123.56 To Order
1R12323639AC TUBE - COOLANT RECOVERY COUPLER $11.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G438N029AE Hose, radiator overflow Enquire To Order
703734 Bolt and Washer M6x25 hex hd $1.23 To Order
Photo Part No Description Price (each) Stock
4G438N029AG Hose Assy, Overflow $25.92 To Order
Photo Part No Description Price (each) Stock
AD4355AA DOUBLE C CLIP 18 $1.65 To Order
Photo Part No Description Price (each) Stock
4G438B081AE Hose assy, Rad Supply Tank Enquire To Order
4G438B081AG HOSE - RADIATOR SUPPLY TANK OVERFLOW $51.67 ARRIVING SOON
AD438B081AA HOSE RADIATOR SUPPLY TANK OVERFLOW $72.53 To Order
Photo Part No Description Price (each) Stock
701181 Clip, 16 x 6.5 x 1.5-6 $3.09 IN STOCK
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.42 IN STOCK
View All

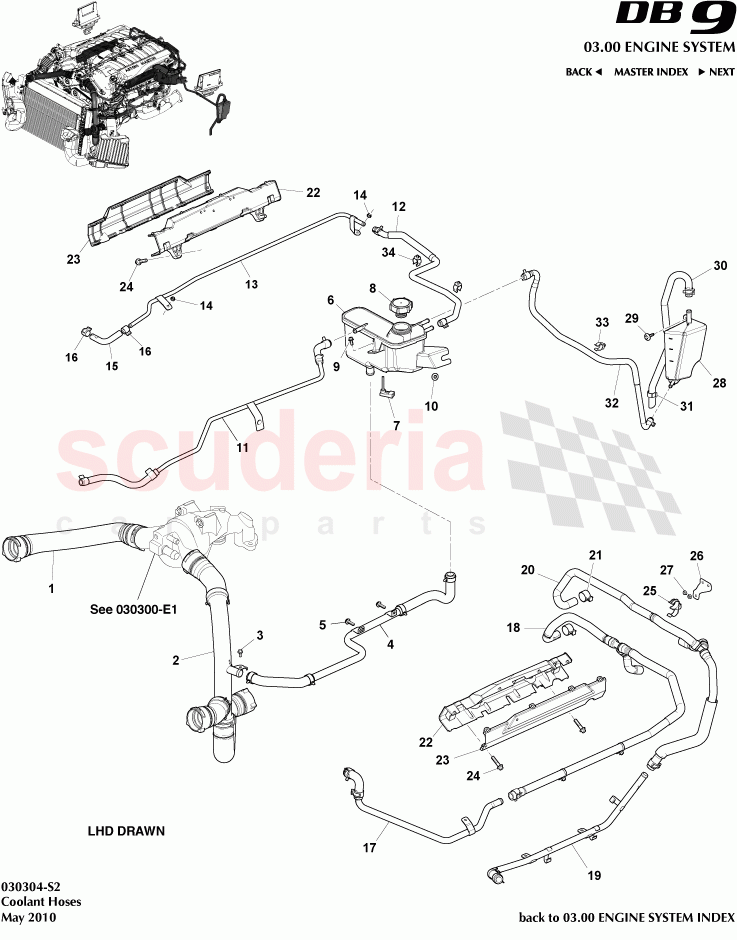

Coolant Hoses of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G438333AE
HOSE - RADIATOR
07MY 		$116.46 1
1 8D338333AA
HOSE RADIATOR
08MY
IN STOCK 		$121.31 1
1 4G438555CA
TUB-WTR BYP ASY 		$411.38 1
2 8D338555AB
TUBE WATER BYPASS
08MY
IN STOCK 		$1,208.79 1
3 HY53E804349AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.71 1
4 4G438C350CA
Hose, Make Up Tube to Bypass Tube
up to (V) A04068 		$32.22 1
4 HY53E804349AA
M6 X 14 SCREW HEX HD
07MY
IN STOCK 		$0.71 1
4 4G438C350CA
Hose, Make Up Tube to Bypass Tube 		$32.22 1
4 4G438C350GB
HOS-ENG COOL RSVR A 		$1,321.89 1
5 4G4319B518BD
RADIATOR EXPANSION TANK
up to (V) A04068 		$485.27 1
5 HY53E804349AA
M6 X 14 SCREW HEX HD
08MY
IN STOCK 		$0.71 2
5 4G4319B518BD
RADIATOR EXPANSION TANK 		$485.27 1
6 4G4319B518BD
RADIATOR EXPANSION TANK 		$485.27 1
7 1R123710166
Switch, Coolant Level
ARRIVING SOON 		$77.23 1
8 4G438101BB
PRESSURE CAP 150KPA
IN STOCK 		$132.80 1
9 HY53E804349AA
M6 X 14 SCREW HEX HD
08MY
IN STOCK 		$0.71 1
9 HY53E804349AA
M6 X 14 SCREW HEX HD
07MY
IN STOCK 		$0.71 2
10 4G438C363CB
TUBE RADIATOR DEGAS ASSY
up to (V) A04068 		$55.30 1
10 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.47 1
11 4G438C363FC
HOSE RAD DEGAS 		$678.10 1
12 4G438063AE
Hose, Engine to Supply Tank
up to (V) A04068
IN STOCK 		$87.13 1
12 4G438003CA
Hose, Thermo Housing, Cross Over Bleed
up to (V) A04068 		$68.10 1
12 4G438003BA
Pipe assy, Crossover bleed
up to (V) A04068 		- 1 Enquire
12 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.93 4
13 4G438003EB
Pipe, Cross Over Bleed 		$81.18 1
14 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.10 2
15 4G438003CA
Hose, Thermo Housing, Cross Over Bleed 		$68.10 1
16 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.93 2
17 4G4318D334BC
HEATER INLET HOSE ASSY - RHD
up to (V) A04068 		$114.39 1
17 4G4318D334AC
HEATER INLET HOSE ASSY - LHD
up to (V) A04068 		$303.26 1
17 ED238A209AA
HOS ASY THERMO UPR
up to (V) A04068 		$370.29 1
17 4G438584EB
HOSE ASY THERMO UPR 		$239.71 1
17 4G438584AE
Hose, Thermo upper 		- 1 Enquire
18 4G4318674EC
TUBE ASSY HTR OUTLET
up to (V) A04068 		$616.22 1
18 AD4318D334AA
HOS-HTR INLT ASSY LH 		$291.38 1
18 AD4318D334BA
HOS-HTR INLT ASSY RH 		$262.19 1
19 4G4318D359AC
HEATER OUTLET HOSE ASSY - LHD
up to (V) A04068 		$205.80 1
19 4G4318D359BC
HEATER OUTLET HOSE ASSY - RHD
up to (V) A04068 		$44.85 1
19 4G4318674EC
TUBE ASSY HTR OUTLET 		$616.22 1
20 AD4318D359AA
HOS-HTR OLET ASSY LH 		$382.79 1
20 AD4318D359BA
HOS-HTR OLET ASSY RH 		$272.13 1
21 701335
Clip, Hose Spring, 20 x 15 		$1.13 2
21 702901
HEAVY DUTY SPRING BAND CLAMP 23 x 15 		$2.10 3
22 4G434867BA
Cover assy, bottom 		- 2 Enquire
22 4G434867AB
ENGINE HARNESS COVER BOTTOM - ASSY 		$68.26 2
23 4G436793BB
Top Cover, Engine Harness
IN STOCK 		$14.21 2
23 4G434867BC
Bottom Cover, Engine Harness
IN STOCK 		$19.30 2
24 700229
Bolt, M8 x 35, Hex Flange Head 		$0.40 4
25 4G4358AA
HOSE CLIP SPACER PLATE 		$22.51 1
26 AD432A155AA
BRACKET - HOSE CLIP 		$20.54 1
27 701345
NUT M6 HEX FLG MTL 8 		- 2 Enquire
28 4G438C087AC
BRACKET - RADIATOR COOL RECEIVER RESERVOIR
up to (V) A04068 		$132.80 1
28 1R123210271
TANK-COOLANT RECOVERY
up to (V) A04068 		$123.56 1
28 1R12323639AC
TUBE - COOLANT RECOVERY COUPLER
up to (V) A04068 		$11.10 1
28 6G33TBD2BA
Reservoir, Coolant Expansion 		$60.02 1
29 4G438N029AE
Hose, radiator overflow
up to (V) A04068 		- 1 Enquire
29 703734
Bolt and Washer M6x25 hex hd
Overflow tank 		$1.23 3
30 4G438N029AG
Hose Assy, Overflow 		$25.92 1
31 AD4355AA
DOUBLE C CLIP 18 		$1.65 1
32 4G438B081AE
Hose assy, Rad Supply Tank
up to (V) A04068 		- 1 Enquire
32 4G438B081AG
HOSE - RADIATOR SUPPLY TANK OVERFLOW
ARRIVING SOON 		$51.67 1
32 AD438B081AA
HOSE RADIATOR SUPPLY TANK OVERFLOW 		$72.53 1
33 701181
Clip, 16 x 6.5 x 1.5-6
IN STOCK 		$3.09 1
34 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.42 2
