Aston Martin DB9 (2004-2012) - Automatic Transaxle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91821 Transmission, Automatic $14,255.20 To Order
91725 AUTO GEARBOX 6 SPD $12,345.31 To Order
4G434210272 Housing, AUTO Gearbox $1,378.14 To Order
Photo Part No Description Price (each) Stock

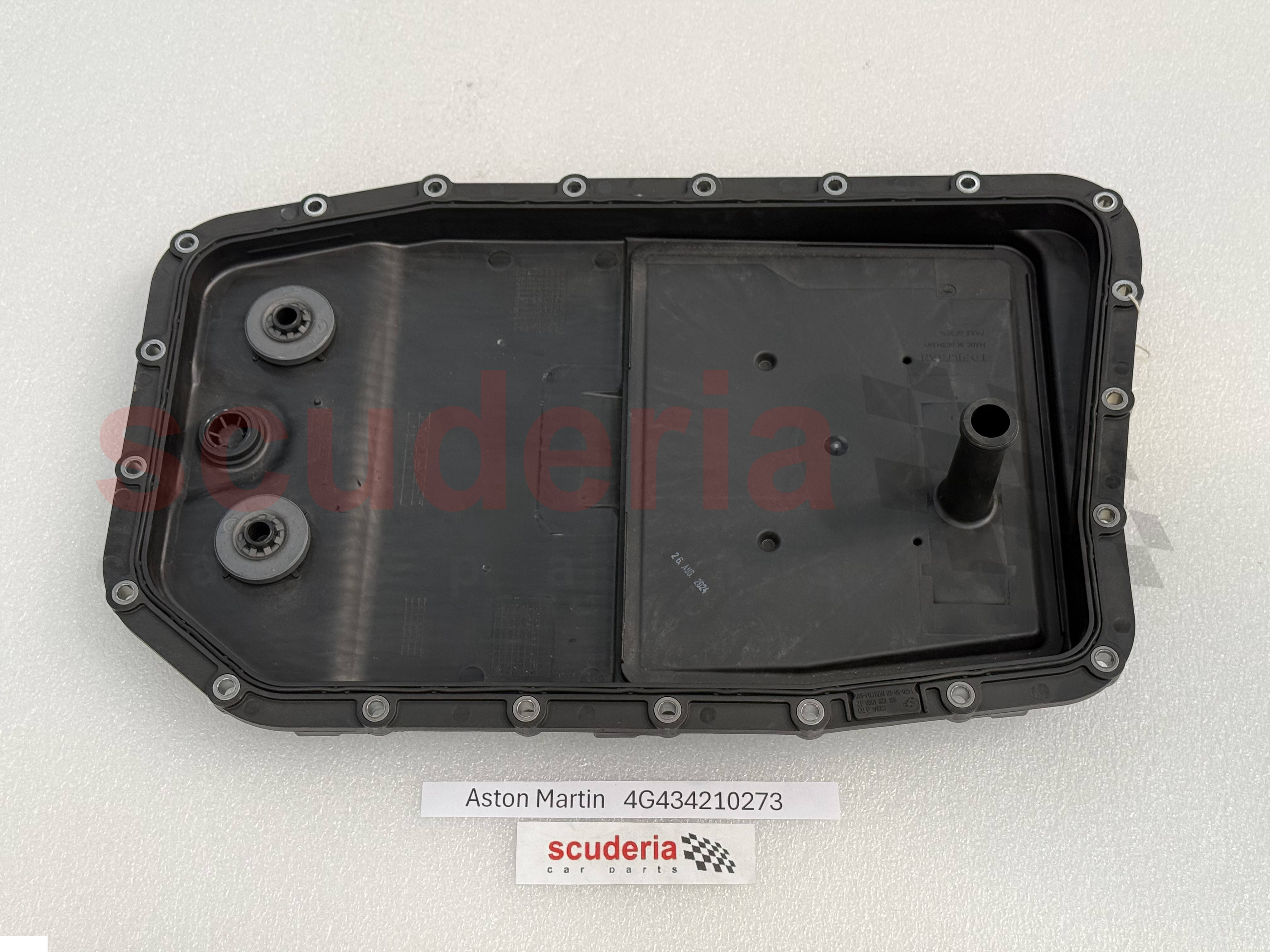

4G434210273 Oil Sump $268.56 IN STOCK
Photo Part No Description Price (each) Stock
4G434210274 Screw, Torx Head $9.42 IN STOCK
Photo Part No Description Price (each) Stock
4G43184391AA Transmission Sump Seal $45.39 IN STOCK
Photo Part No Description Price (each) Stock
4G434210277 SCREW PLUG -OIL SUMP $7.38 IN STOCK
Photo Part No Description Price (each) Stock
4G437D741AA Transmission Sump O ring $1.36 IN STOCK
Photo Part No Description Price (each) Stock
8G4314C247AA HARDWARE TRANS CONTROL MODULE (ZF 6HP26) $6,819.30 To Order
4G434210344 MECHOTRONIC UNIT/TCM $5,271.71 To Order
Photo Part No Description Price (each) Stock
4G43807199DA Screw, M6 x 20, Torx Head $1.14 To Order
Photo Part No Description Price (each) Stock
4G43807199CA Screw, M6 x 59, Torx Head $1.14 To Order
Photo Part No Description Price (each) Stock

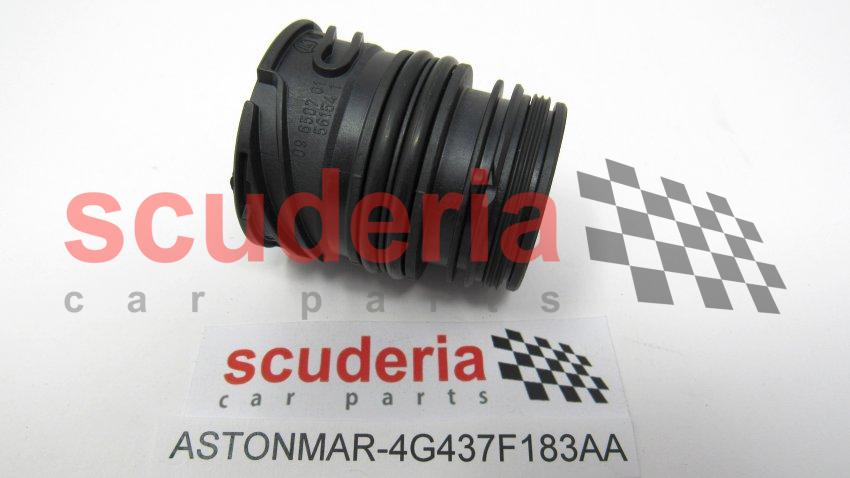

4G437F183AA Guide Sleeve, Transmission Controller $16.35 IN STOCK
Photo Part No Description Price (each) Stock
4G437H586AA TRANSMISSION MECHATRONIC MODULE ADAPTOR $42.34 IN STOCK
Photo Part No Description Price (each) Stock
4G436K375AA FLEX PLATE - REAR $126.11 To Order
Photo Part No Description Price (each) Stock
4G43HYG10549AA SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK $2.23 IN STOCK
Photo Part No Description Price (each) Stock
4G434210280 TORQUE CONVERTER $2,038.73 To Order
Photo Part No Description Price (each) Stock
4G43HYG10549AA SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK $2.23 IN STOCK
Photo Part No Description Price (each) Stock
4G437A238AA TRANSMISSION INPUT SHAFT SEAL $9.24 IN STOCK
Photo Part No Description Price (each) Stock
4G43184335AA TRANSMISSION HOUSING O RING $17.30 IN STOCK
Photo Part No Description Price (each) Stock
4G43807199BA TORX SCREW $5.13 IN STOCK
Photo Part No Description Price (each) Stock
4G437L015AA TRANSMISSION HOUSING WASHER $1.91 IN STOCK
Photo Part No Description Price (each) Stock
4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE $6.51 IN STOCK
Photo Part No Description Price (each) Stock
4G434210276 SCREW PLUG $4.90 To Order
Photo Part No Description Price (each) Stock
4G4337521BA TRANSMISSION BLANKING PLUG $1.38 To Order
Photo Part No Description Price (each) Stock
4G4329401AA SEALING SLEEVE $3.32 IN STOCK
Photo Part No Description Price (each) Stock
4G4329401BA SEALING SLEEVE $3.99 IN STOCK
Photo Part No Description Price (each) Stock
4G4329401CA SEALING SLEEVE $4.85 IN STOCK
Photo Part No Description Price (each) Stock
4G437Z036AA TRANSMISSION SELECTOR SHAFT SEAL $2.97 To Order
Photo Part No Description Price (each) Stock
4G437Z309AC Insulation, Transmission Case Cover $79.28 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
4G4318801AB RFI CAPACITOR MOUNTING PLATE $38.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE $10.65 To Order
Photo Part No Description Price (each) Stock
4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER $10.65 To Order
Photo Part No Description Price (each) Stock
701565 CLIP 4-6 DUx6.5 $0.91 To Order
Photo Part No Description Price (each) Stock
4G437179AA Plug, Transmission Breather $12.04 To Order
Photo Part No Description Price (each) Stock
4G432860AB CLIP P LOCK DISENGAGE CABLE $0.87 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE $0.79 To Order
Photo Part No Description Price (each) Stock
703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE $1.21 To Order
Photo Part No Description Price (each) Stock
4G437J271AB O Ring, Transmission Adapter Plate, Rear $15.98 IN STOCK
Photo Part No Description Price (each) Stock
4G434210979 Oil Seal, 60 x 44 x 7mm $78.84 To Order
Photo Part No Description Price (each) Stock
4G434210278 SCREW PLUG $9.22 To Order
Photo Part No Description Price (each) Stock
4G434210279 SCREW PLUG $18.14 IN STOCK
Photo Part No Description Price (each) Stock
4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 $8.47 To Order
Photo Part No Description Price (each) Stock
4G434210977 Screw M10x50, adaptor plate Enquire To Order
Photo Part No Description Price (each) Stock
4G434210978 Usit ring Enquire To Order
Photo Part No Description Price (each) Stock
4G434210267 OIL SEAL-TAIL SHAFT $9.57 To Order
4G434211252 O RING-SHAFT $25.69 To Order
4G434211251 Shaft, Output $754.44 To Order
Photo Part No Description Price (each) Stock
8G437J168AC BRKT ASSY AUTO PARK BRAKE RELEASE $275.17 To Order
9D337J168CB BRKT ASSY AUTO PARK BRAKE RELEASE $258.97 To Order
4G437J168AC BRACKET - TRANS PARK LOCK DISENGAGE CABLE $324.02 To Order
Photo Part No Description Price (each) Stock
9D337J167CA Cable assy Enquire To Order
8G437J167AD CABLE ASSY AUTO PARK BRAKE RELEASE $104.92 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
4G437A257AB Lever Arm, Auto Transmission to Disengage P Lock $3.12 To Order
Photo Part No Description Price (each) Stock
703149 SCREW M6x16 PAN FLG TORX CHROME FRE $0.70 IN STOCK
4G4319A509AA/S TRANSMISSION FLUID AUTO-1ltr Enquire To Order
View All
Automatic Transaxle of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91821
Transmission, Automatic
From 09MY - Includes item 14. You must also order item 42. 		$14,255.20 1
1 91725
AUTO GEARBOX 6 SPD
Upto 08MY - Includes item 14. You must also order item 42. 		$12,345.31 1
1 4G434210272
Housing, AUTO Gearbox 		$1,378.14 1
2 4G434210273
Oil Sump
IN STOCK 		$268.56 1
3 4G434210274
Screw, Torx Head
IN STOCK 		$9.42 21
4 4G43184391AA
Transmission Sump Seal
IN STOCK 		$45.39 1
5 4G434210277
SCREW PLUG -OIL SUMP
IN STOCK 		$7.38 1
6 4G437D741AA
Transmission Sump O ring
IN STOCK 		$1.36 1
7 8G4314C247AA
HARDWARE TRANS CONTROL MODULE (ZF 6HP26)
09MY 		$6,819.30 1
7 4G434210344
MECHOTRONIC UNIT/TCM 		$5,271.71 1
8 4G43807199DA
Screw, M6 x 20, Torx Head 		$1.14 3
9 4G43807199CA
Screw, M6 x 59, Torx Head 		$1.14 7
10 4G437F183AA
Guide Sleeve, Transmission Controller
IN STOCK 		$16.35 1
11 4G437H586AA
TRANSMISSION MECHATRONIC MODULE ADAPTOR
IN STOCK 		$42.34 1
12 4G436K375AA
FLEX PLATE - REAR 		$126.11 1
13 4G43HYG10549AA
SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK
Flex plate to converter
IN STOCK 		$2.23 3
14 4G434210280
TORQUE CONVERTER 		$2,038.73 1
15 4G43HYG10549AA
SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK
Flex plate to crankshaft
IN STOCK 		$2.23 8
16 4G437A238AA
TRANSMISSION INPUT SHAFT SEAL
IN STOCK 		$9.24 1
17 4G43184335AA
TRANSMISSION HOUSING O RING
IN STOCK 		$17.30 1
18 4G43807199BA
TORX SCREW
IN STOCK 		$5.13 13
19 4G437L015AA
TRANSMISSION HOUSING WASHER
IN STOCK 		$1.91 13
20 4G434210021
PLUG-T/CONV ACCESS TORQUE TUBE
IN STOCK 		$6.51 1
21 4G434210276
SCREW PLUG 		$4.90 1
22 4G4337521BA
TRANSMISSION BLANKING PLUG 		$1.38 1
23 4G4329401AA
SEALING SLEEVE
IN STOCK 		$3.32 2
24 4G4329401BA
SEALING SLEEVE
IN STOCK 		$3.99 2
25 4G4329401CA
SEALING SLEEVE
IN STOCK 		$4.85 2
26 4G437Z036AA
TRANSMISSION SELECTOR SHAFT SEAL 		$2.97 1
27 4G437Z309AC
Insulation, Transmission Case Cover 		$79.28 1
28 703265
Screw, M6 x 16, Hex Flange Head
07MY
IN STOCK 		$0.34 2
28 703265
Screw, M6 x 16, Hex Flange Head
08MY
IN STOCK 		$0.34 2
28 4G4318801AB
RFI CAPACITOR MOUNTING PLATE 		$38.65 1
28 4G433710250
TRANSMISSION ECU EMC CAPACITOR 		$66.67 1
29 4G437A245AA
TUBE ASSY - AUTO TRANSMISSION BREATHE 		$10.65 1
30 4G437A245BA
TUBE AUTOMATIC DIFFERENTIAL BREATHER 		$10.65 1
31 701565
CLIP 4-6 DUx6.5 		$0.91 2
32 4G437179AA
Plug, Transmission Breather 		$12.04 1
33 4G432860AB
CLIP P LOCK DISENGAGE CABLE
Park brake cable 		$0.87 1
34 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.20 1
36 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		$0.79 4
37 703182
BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE 		$1.21 1
38 4G437J271AB
O Ring, Transmission Adapter Plate, Rear
Trans. Adaptor Plate
IN STOCK 		$15.98 1
39 4G434210979
Oil Seal, 60 x 44 x 7mm 		$78.84 1
40 4G434210278
SCREW PLUG 		$9.22 1
41 4G434210279
SCREW PLUG
IN STOCK 		$18.14 1
42 4G439912553AA
BOLT M8 X 80 CAP SKT HD GD 10
Must be ordered with new transmission 		$8.47 1
43 4G434210977
Screw M10x50, adaptor plate 		- 5 Enquire
44 4G434210978
Usit ring 		- 5 Enquire
45 4G434210267
OIL SEAL-TAIL SHAFT 		$9.57 1
45 4G434211252
O RING-SHAFT 		$25.69 1
45 4G434211251
Shaft, Output 		$754.44 1
46 8G437J168AC
BRKT ASSY AUTO PARK BRAKE RELEASE
08MY 		$275.17 1
46 9D337J168CB
BRKT ASSY AUTO PARK BRAKE RELEASE
09MY 		$258.97 1
46 4G437J168AC
BRACKET - TRANS PARK LOCK DISENGAGE CABLE 		$324.02 1
47 9D337J167CA
Cable assy
09MY 		- 1 Enquire
47 8G437J167AD
CABLE ASSY AUTO PARK BRAKE RELEASE 		$104.92 1
48 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.20 2
49 4G437A257AB
Lever Arm, Auto Transmission to Disengage P Lock 		$3.12 1
50 703149
SCREW M6x16 PAN FLG TORX CHROME FRE
IN STOCK 		$0.70 4
50 4G4319A509AA/S
TRANSMISSION FLUID AUTO-1ltr 		- - Enquire
