Rear Brake Sub System

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Rear Brake Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G432810266 Rear Brake Disc $300.93 IN STOCK
Photo Part No Description Price (each) Stock
4G432N389AA Screw, M8 x 14, Flat Head Countersunk $0.25 IN STOCK
Photo Part No Description Price (each) Stock
7G432C464FA CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS $543.36 To Order
7G432C465FA CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS $543.36 To Order
7G432C465EA CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS $543.36 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
7G432C562AA Rear Brake Pad Kit $537.94 IN STOCK

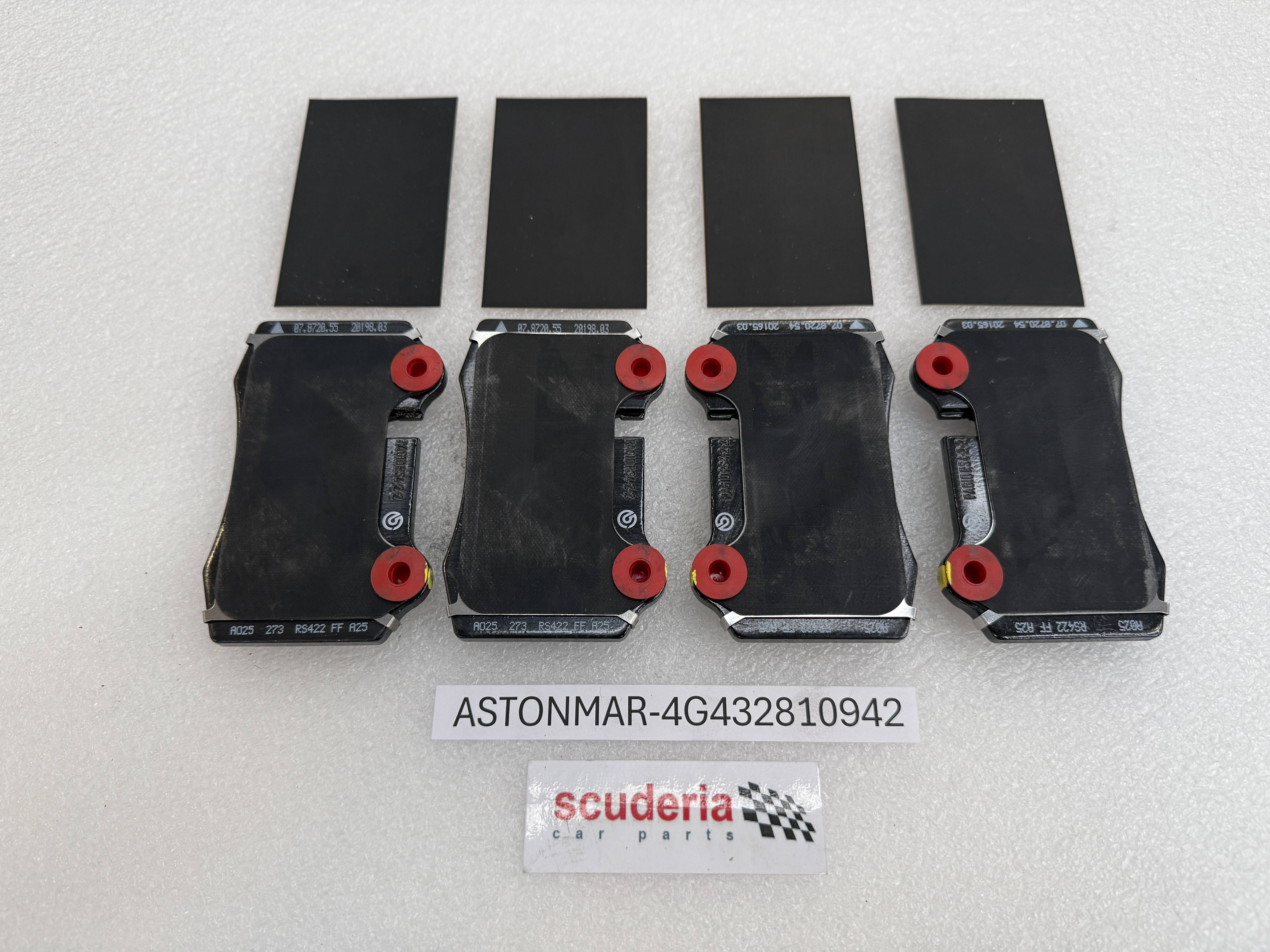

4G432810942 REAR BRAKE PADS & SHIM SET $572.69 IN STOCK
Photo Part No Description Price (each) Stock

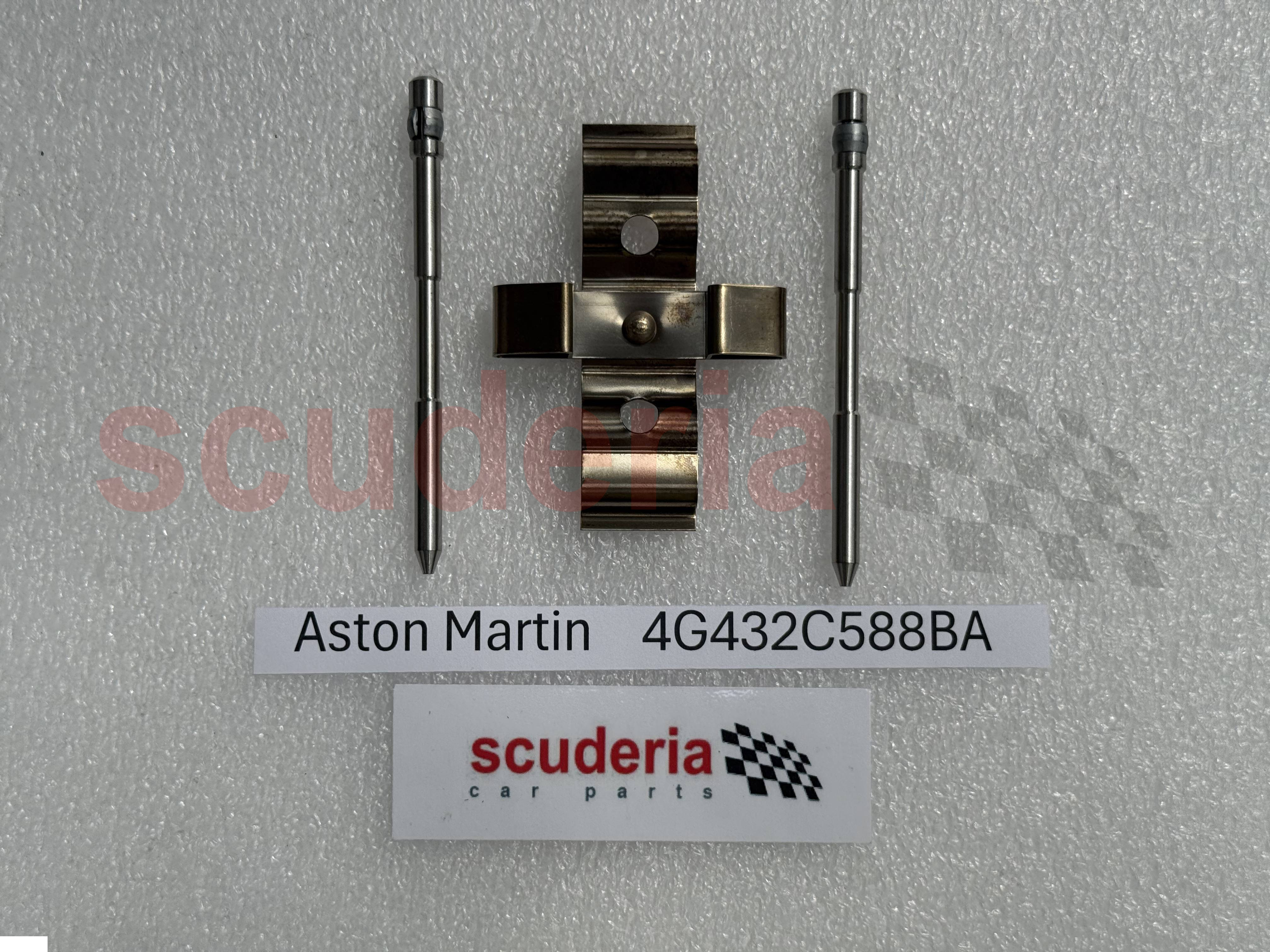

4G432C588BA Pins and Spring Kit Rear Caliper $64.68 To Order
Photo Part No Description Price (each) Stock
4G4332610AA Kit, Dust Boot, Rear Caliper $46.09 To Order
Photo Part No Description Price (each) Stock
4G432C563AA Kit, Bleed Screw $15.78 IN STOCK
4G4333693AA Cap, Bleed Screw $25.93 IN STOCK
Photo Part No Description Price (each) Stock
4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL $2.71 IN STOCK
Photo Part No Description Price (each) Stock
8G432282AB HOSE REAR WHEEL BRAKE LH $184.30 IN STOCK
8G432282BA HOSE ASSY REAR WHEEL BRAKE RH $419.72 To Order
4G432282AB HOS ASY-RR WHL BRK $365.19 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D332C029AA SHIELD - REAR BRAKE DISC LH $55.10 To Order
8D332C028AA SHIELD - REAR BRAKE DISC RH $55.10 IN STOCK
Photo Part No Description Price (each) Stock
4G4313D026AA Screw, retaining disc shield $0.59 IN STOCK
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock

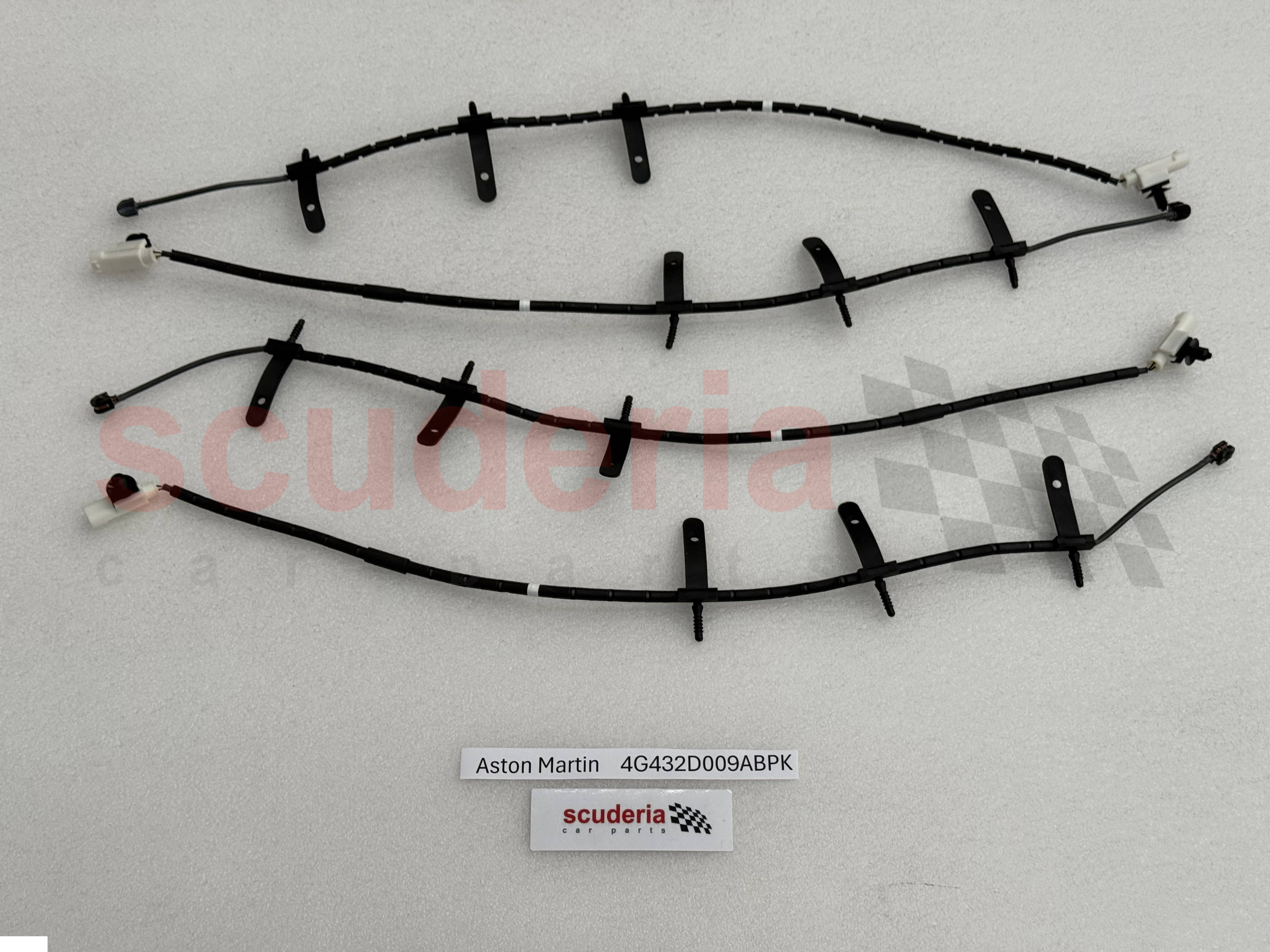

4G432D009ABPK Pad Wear Leads Rear (Pack of 4) $178.47 IN STOCK
4G432D009ABPK Pad Wear Leads Rear (Pack of 4) $178.47 IN STOCK
Photo Part No Description Price (each) Stock
3790075 Cable Tie, 290mm $0.11 IN STOCK
View All
Rear Brake Sub System of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G432810266
Rear Brake Disc
IN STOCK 		$300.93 2
2 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.25 4
3 7G432C464FA
CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS
12MY 		$543.36 1
3 7G432C465FA
CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS
12MY 		$543.36 1
3 7G432C465EA
CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS 		$543.36 1
3 7G432C465CA
CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS 		$531.30 1
3 7G432C464CA
CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS 		$531.30 1
3 7G432C465AA
CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS 		$543.36 1
3 7G432C464AA
CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS 		$543.36 1
3 7G432C465DA
CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS 		$543.36 1
3 7G432C464DA
CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS 		$543.36 1
3 4G432810942
REAR BRAKE PADS & SHIM SET
IN STOCK 		$572.69 1
3 7G432C464EA
CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS 		$543.36 2
4 7G432C562AA
Rear Brake Pad Kit
Per axle set
IN STOCK 		$537.94 1
4 4G432810942
REAR BRAKE PADS & SHIM SET
IN STOCK 		$572.69 1
5 4G432C588BA
Pins and Spring Kit Rear Caliper
Per Caliper 		$64.68 1
6 4G4332610AA
Kit, Dust Boot, Rear Caliper
Per Caliper 		$46.09 1
7 4G432C563AA
Kit, Bleed Screw
Per Caliper
IN STOCK 		$15.78 1
7 4G4333693AA
Cap, Bleed Screw
Per Caliper
IN STOCK 		$25.93 1
8 4G432C564AB
Bolt M12 x 1.5 x 80 Brk CLPR to KNL
Caliper to knuckle
IN STOCK 		$2.71 4
9 8G432282AB
HOSE REAR WHEEL BRAKE LH
08MY onwards
IN STOCK 		$184.30 1
9 8G432282BA
HOSE ASSY REAR WHEEL BRAKE RH
08MY onwards 		$419.72 1
9 4G432282AB
HOS ASY-RR WHL BRK
Up to 08MY 		$365.19 1
9 4G432282BB
HOSE ASY RR WHL BRK
Up to 08MY 		$289.76 1
10 8D332C029AA
SHIELD - REAR BRAKE DISC LH 		$55.10 1
10 8D332C028AA
SHIELD - REAR BRAKE DISC RH
IN STOCK 		$55.10 1
11 4G4313D026AA
Screw, retaining disc shield
IN STOCK 		$0.59 8
12 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
13 4G432D009ABPK
Pad Wear Leads Rear (Pack of 4)
IN STOCK 		$178.47 2
13 4G432D009ABPK
Pad Wear Leads Rear (Pack of 4)
IN STOCK 		$178.47 1
14 3790075
Cable Tie, 290mm
Lead to flex hose
IN STOCK 		$0.11 2
