Underbody

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - Underbody

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G431610879S Panel assy, floor, RH $497.60 To Order
Photo Part No Description Price (each) Stock
FD3311141AC PANEL FLOOR LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4313058AA TUNNEL REAR SIDE RH $147.91 To Order
Photo Part No Description Price (each) Stock
9G4313059AB TUNNEL REAR SIDE LH $147.91 To Order
Photo Part No Description Price (each) Stock
8G4367340AA PANEL REAR SEAT HEEL BOARD LOWER RH $66.21 To Order
Photo Part No Description Price (each) Stock
8G4367341GA PANEL REAR SEAT HEEL BOARD LOWER LH $58.24 To Order
Photo Part No Description Price (each) Stock
8G4367342AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH $55.83 To Order
Photo Part No Description Price (each) Stock
4G432010876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 $462.84 To Order
Photo Part No Description Price (each) Stock
4G432010877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 $462.84 To Order
Photo Part No Description Price (each) Stock
8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $87.63 To Order
Photo Part No Description Price (each) Stock
8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $21.25 To Order
Photo Part No Description Price (each) Stock
8G43390725AA NUT PLATE FRONT END MOUNTING INR M12 $32.15 To Order
Photo Part No Description Price (each) Stock
CG4310120AA MEMBER FLOOR SIDE FRONT $227.56 To Order
Photo Part No Description Price (each) Stock
AG43L1898AA Sill assy, outer, RH Enquire To Order
AG43C1898AA ASSEMBLY SILL OUTER RH $1,219.99 To Order
Photo Part No Description Price (each) Stock
BG43L1899AA ASSEMBLY SILL OUTER LH $1,563.41 To Order
BG43C1899AA Assembly Sill Out LH $818.21 To Order
View All

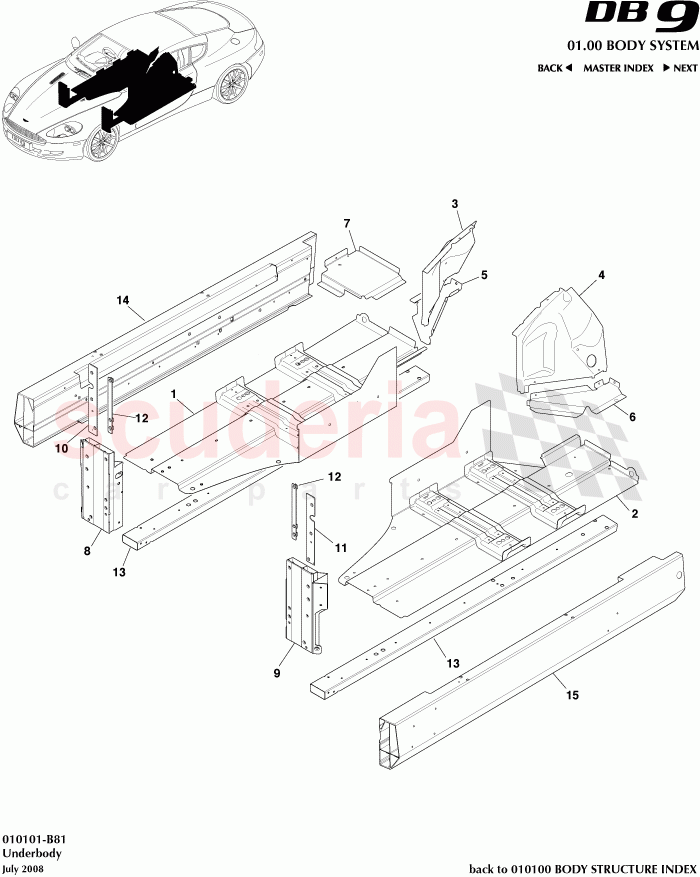

Underbody of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G431610879S
Panel assy, floor, RH
VIN stamp required, Structural Cat. A only 		$497.60 1
2 FD3311141AC
PANEL FLOOR LH
Structural Cat. A only 		- 1 Enquire
3 8G4313058AA
TUNNEL REAR SIDE RH
Structural Cat. A only 		$147.91 1
4 9G4313059AB
TUNNEL REAR SIDE LH
07MY, Structural Cat. A only 		$147.91 1
5 8G4367340AA
PANEL REAR SEAT HEEL BOARD LOWER RH
Structural Cat. A only 		$66.21 1
6 8G4367341GA
PANEL REAR SEAT HEEL BOARD LOWER LH
Structural Cat. A only 		$58.24 1
7 8G4367342AA
SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH
Structural Cat. A only 		$55.83 1
8 4G432010876
FRONT SUBFRAME UPRIGHT ASSY RH-DB9
Structural Cat. A only 		$462.84 1
9 4G432010877
FRONT SUBFRAME UPRIGHT ASSY-LH DB9
Structural Cat. A only 		$462.84 1
10 8G43434K10AA
NUTPLATE FRONT END MOUNTING OUTER RH M12
Structural Cat. A only 		$87.63 1
11 8G43434K11AA
NUTPLATE FRONT END MOUNTING OUTER LH M12
Structural Cat. A only 		$21.25 6
12 8G43390725AA
NUT PLATE FRONT END MOUNTING INR M12
Structural Cat. A only 		$32.15 2
13 CG4310120AA
MEMBER FLOOR SIDE FRONT
Structural Cat. A only 		$227.56 2
14 AG43L1898AA
Sill assy, outer, RH
VOLANTE, Structural Cat. A only 		- 1 Enquire
14 AG43C1898AA
ASSEMBLY SILL OUTER RH
COUPE, Structural Cat. A only 		$1,219.99 1
15 BG43L1899AA
ASSEMBLY SILL OUTER LH
VOLANTE, Structural Cat. A only 		$1,563.41 1
15 BG43C1899AA
Assembly Sill Out LH
COUPE, Structural Cat. A only 		$818.21 1
