Power Steering

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Power Steering

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
2485417 POWER STEERING PUMP $916.94 IN STOCK
Photo Part No Description Price (each) Stock
24121497AA OUTLET ADAPTOR - PAS PUMP $359.39 IN STOCK
Photo Part No Description Price (each) Stock
2485419 Pulley, power steering pump Enquire To Order
Photo Part No Description Price (each) Stock
699131 BOLT M8 x 70 x 1.25 $2.69 To Order
Photo Part No Description Price (each) Stock
24123664AA ASSY RACK & MTGS RHD $3,924.31 To Order
91777 ASSY RACK & MTGS LHD $2,496.41 To Order
24123664AA ASSY RACK & MTGS RHD $3,924.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
697244 BOLT 5/16 UNF x2.5/8 HEX HEAD S $12.81 To Order
Photo Part No Description Price (each) Stock
697126 WASHER 5/16 PLAIN ZINC PLATED $0.06 To Order
Photo Part No Description Price (each) Stock
2481038 WASHER-0.359 ID x 1.44 OD x 0.315 thk $1.18 To Order
Photo Part No Description Price (each) Stock
697128 NUT 5/16 UNF NYLOC THIN $0.16 To Order
Photo Part No Description Price (each) Stock
2481734 S/RACK TRACK ROD END $275.74 To Order
Photo Part No Description Price (each) Stock
701062 NUT M12-1.5 NYLOC ZP $2.10 To Order
Photo Part No Description Price (each) Stock
2481735 S/RACK TRACK ROD NUT $6.62 To Order
Photo Part No Description Price (each) Stock
86120772AB HEATSHIELD-STEERING RACK RHD $103.12 To Order
86120773AB Heatshield- Steering Rack $72.93 To Order
Photo Part No Description Price (each) Stock
697133 SCREW M8 x 20 HEX HEAD GRD 8.8 $0.80 To Order
Photo Part No Description Price (each) Stock
697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL $0.84 To Order
Photo Part No Description Price (each) Stock
86122212AB H/SHIELD GAITOR STRG RACK RHD ASSY $161.32 To Order
86122213AB Heatshield- Gaiter Steering Rack Assy Enquire To Order
Photo Part No Description Price (each) Stock
692089 SCREW M8 x 16 HEX HD GRD 8 8 ZINC PLT $0.47 To Order
Photo Part No Description Price (each) Stock
697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL $0.84 To Order
Photo Part No Description Price (each) Stock
692135 NUT M8 HEX SLK GRD 8 ZINC PLT $1.45 To Order
Photo Part No Description Price (each) Stock
699233PK TIE-STRAP HT RES-100 $87.72 To Order
Photo Part No Description Price (each) Stock
3386540 ASSY - PAS RESERVOIR $1,052.36 To Order
33124714AA ASSY SUPPORT BRACKET PAS RESERVOIR $23.73 To Order
33124713AA CLAMP BRACKET PAS RESERVOIR $35.71 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
697122 NUT M6 NYLOC $0.08 IN STOCK
Photo Part No Description Price (each) Stock
697286 Washer M6 Large OD $1.37 IN STOCK
Photo Part No Description Price (each) Stock
44121325AA OIL COOLER - PAS $323.70 To Order
Photo Part No Description Price (each) Stock
4481588 MTG BRKT-OIL COOLER $66.70 To Order
4481589 MOUNTING RUBBER $11.99 To Order
Photo Part No Description Price (each) Stock
697121 NUT/WASHER ASSY-M6 $1.36 To Order
Photo Part No Description Price (each) Stock
33125120AA ASSY HOSE HIGH PRESSURE PUMP TO RACk RHD $111.34 IN STOCK

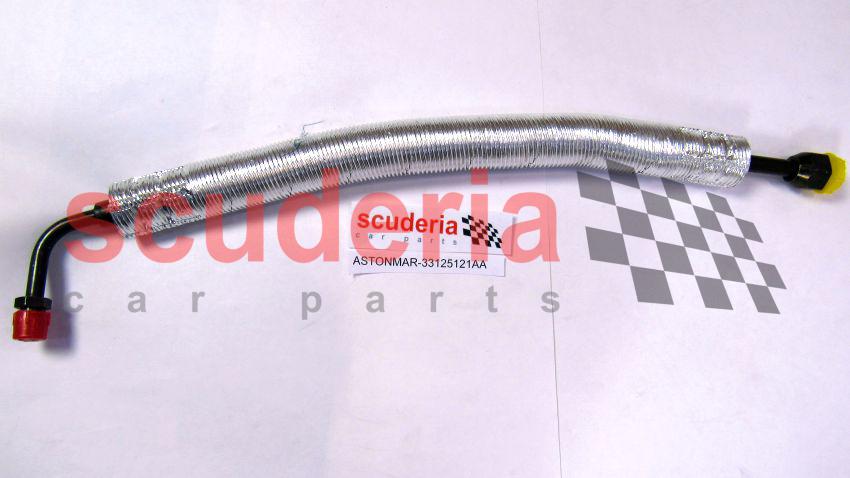

33125121AA High Pressure Hose Pump To Rack LHD $113.53 IN STOCK
Photo Part No Description Price (each) Stock
4283510 RUBBER SLEEVE- AUTO TRANS.PIPES $5.72 To Order
Photo Part No Description Price (each) Stock
33120744AB ASSY HOSE LOW PRESSURE RHD $453.91 To Order

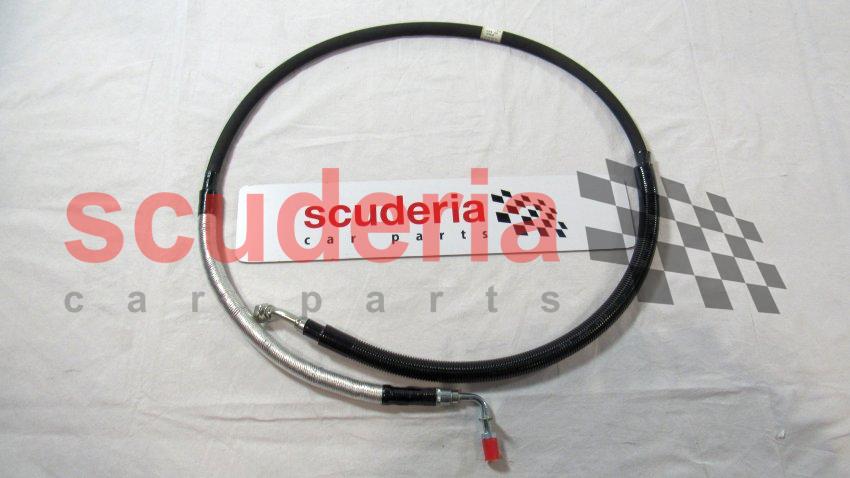

33120745AC Low Pressure Hose $258.72 IN STOCK
Photo Part No Description Price (each) Stock
699327 CLIP-HOSE SUPPORT $2.79 To Order
Photo Part No Description Price (each) Stock

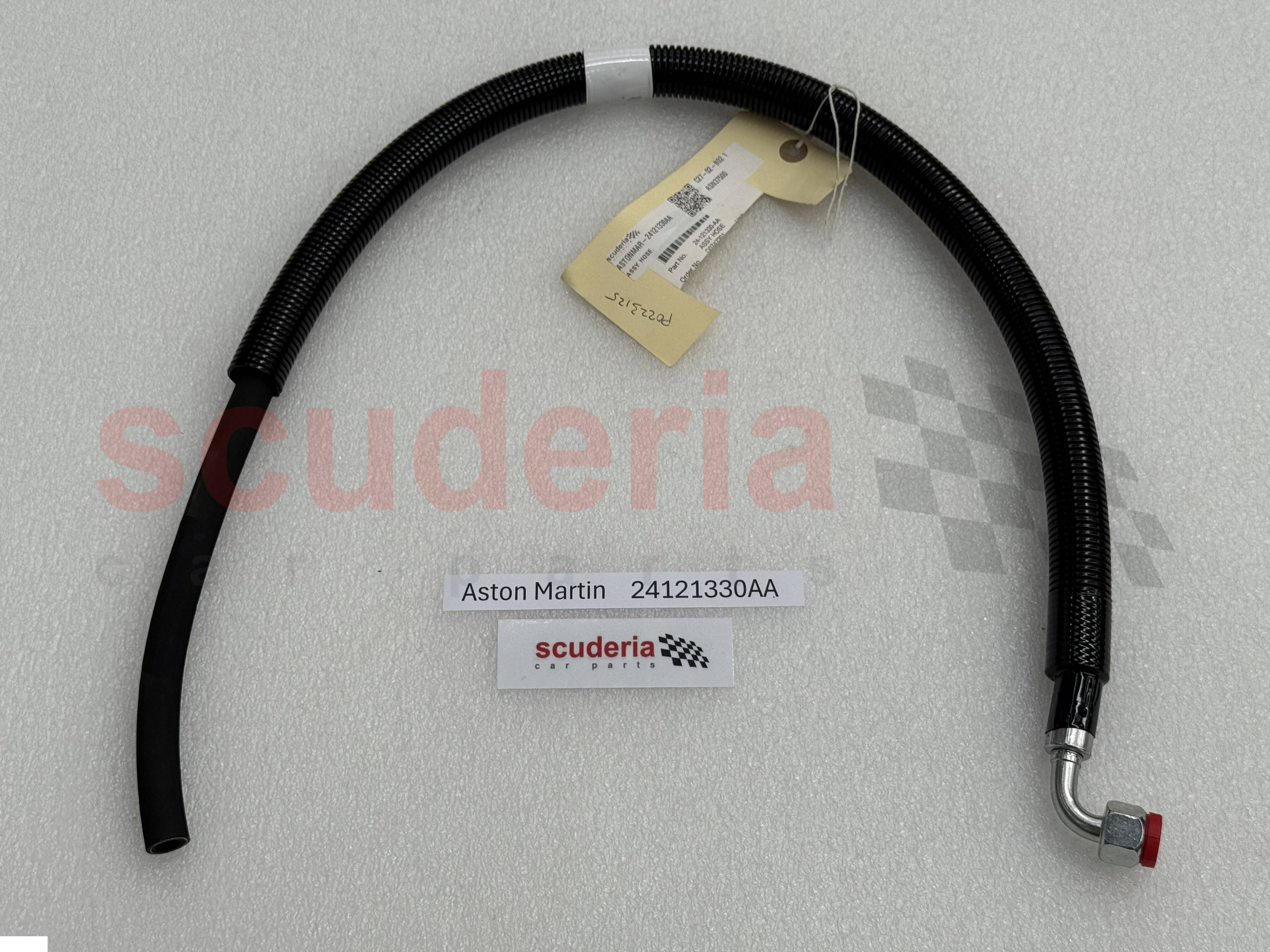

24121330AA Low Pressure Hose $167.37 IN STOCK
Photo Part No Description Price (each) Stock
114679 HOSE-CLIP S/STEEL $0.79 IN STOCK
Photo Part No Description Price (each) Stock

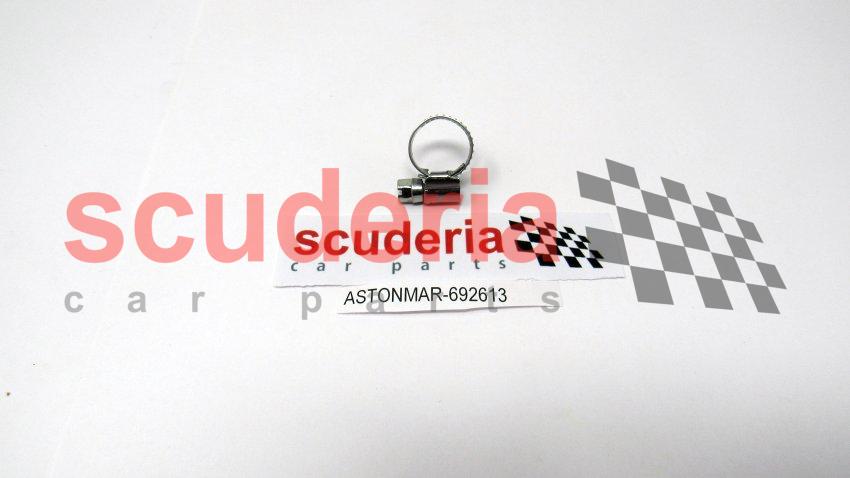

692613 Hose-Clip 10-16mm $2.35 IN STOCK
Photo Part No Description Price (each) Stock
697274PK TIE STRAP(PK OF 100) $59.26 To Order
Photo Part No Description Price (each) Stock
698944 CLIP DOUBLE PIPE 24 DIA + 16 DIA $4.02 To Order
Photo Part No Description Price (each) Stock
697615 SCREW 5/16 UNF x1/2 HEX AB ST $0.41 To Order
697615 SCREW 5/16 UNF x1/2 HEX AB ST $0.41 To Order
Photo Part No Description Price (each) Stock

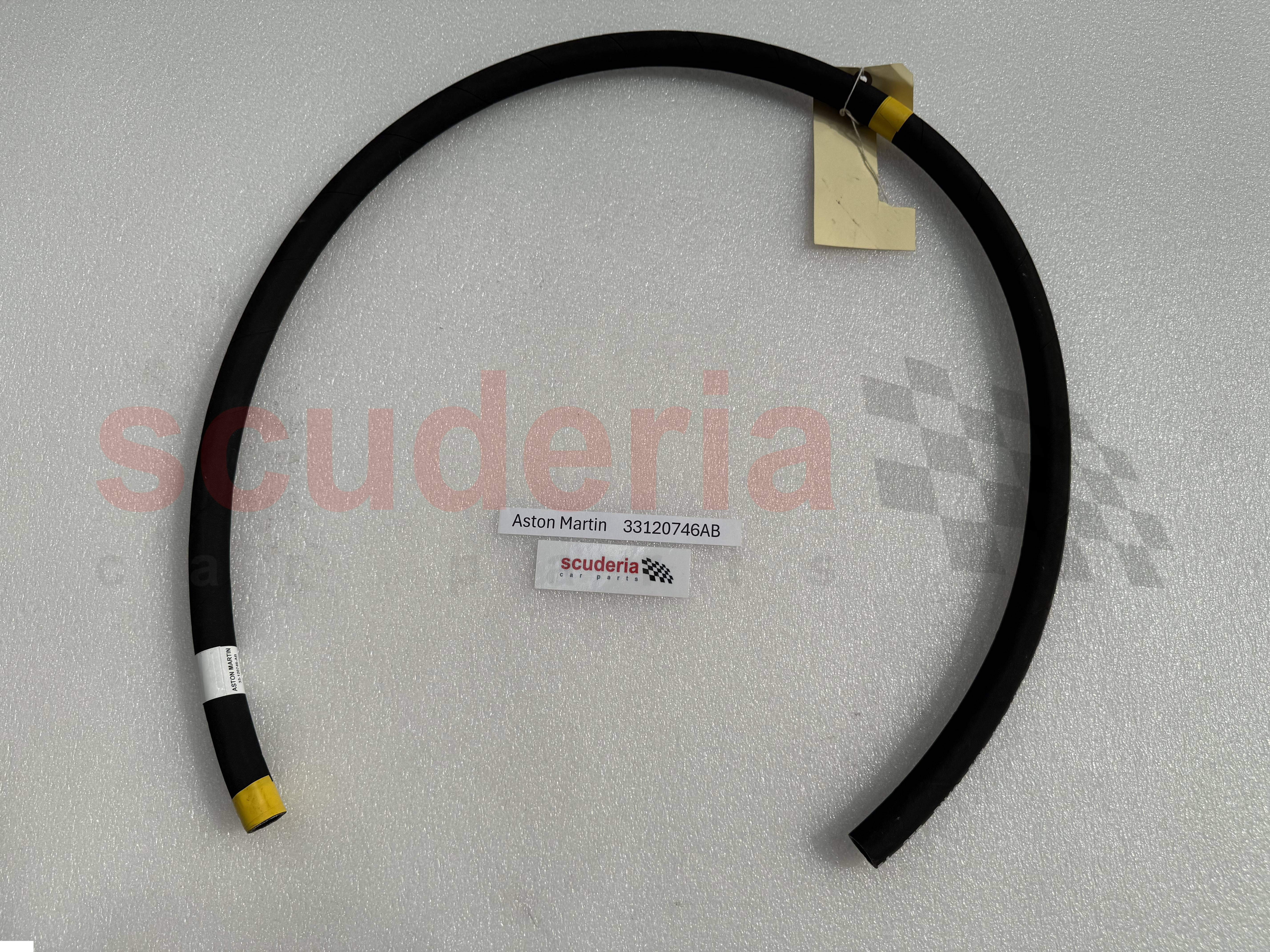

33120746AB Hose Low Pressure reservoir $137.86 IN STOCK
33123061AB CONDUIT-FLEXIBLE BLACK 25mm $14.32 IN STOCK
3790075 Cable Tie, 290mm $0.11 IN STOCK
Photo Part No Description Price (each) Stock
698943 CLIP PIPE 25 DIA $5.59 To Order
698943 CLIP PIPE 25 DIA $5.59 To Order
Photo Part No Description Price (each) Stock
697242 SCREW M8 x 10 HEX RECESS CAP HEAD $0.55 To Order
Photo Part No Description Price (each) Stock
2481033 WASHER SPECIAL- ALUMINIUM $0.16 To Order
Photo Part No Description Price (each) Stock
2485217 PIPE CLIP-DOUBLE $0.77 To Order
Photo Part No Description Price (each) Stock
2481035 ASSY-STIFFENER-RHD WELDED $158.27 To Order
2481036 ASSY-STIFFENER-LHD WELDED $112.41 To Order
Photo Part No Description Price (each) Stock
697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 $1.18 To Order
699327 CLIP-HOSE SUPPORT $2.79 To Order
697122 NUT M6 NYLOC $0.08 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
24123052AA Clip, worm Enquire To Order
Photo Part No Description Price (each) Stock
2481733 STRG RACK GAITER & CLIP KIT $146.29 To Order
Photo Part No Description Price (each) Stock
23125070AA STEERING RACK SPACER $5.22 To Order
3481380 EDGE FINISHER- DRAFLEX STRIP $6.38 To Order
2481732 COLLAR-STEERING RACK MOUNTING $13.09 To Order
View All
Power Steering of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 2485417
POWER STEERING PUMP
IN STOCK 		$916.94 1
1 2485417
POWER STEERING PUMP
IN STOCK 		$916.94 1
2 24121497AA
OUTLET ADAPTOR - PAS PUMP
IN STOCK 		$359.39 1
3 2485419
Pulley, power steering pump 		- 1 Enquire
4 699131
BOLT M8 x 70 x 1.25
P/S Pump to Cylinder block 		$2.69 4
5 24123664AA
ASSY RACK & MTGS RHD
RHD Up to (V) 300555 		$3,924.31 1
5 91777
ASSY RACK & MTGS LHD
LHD Up to (V) 300555 		$2,496.41 1
5 24123664AA
ASSY RACK & MTGS RHD
RHD From (V) 300556 		$3,924.31 1
5 91777
ASSY RACK & MTGS LHD
LHD From (V) 300556 		$2,496.41 1
6 697244
BOLT 5/16 UNF x2.5/8 HEX HEAD S 		$12.81 3
7 697126
WASHER 5/16 PLAIN ZINC PLATED 		$0.06 6
8 2481038
WASHER-0.359 ID x 1.44 OD x 0.315 thk 		$1.18 3
9 697128
NUT 5/16 UNF NYLOC THIN 		$0.16 3
10 2481734
S/RACK TRACK ROD END 		$275.74 2
11 701062
NUT M12-1.5 NYLOC ZP 		$2.10 2
12 2481735
S/RACK TRACK ROD NUT 		$6.62 2
13 86120772AB
HEATSHIELD-STEERING RACK RHD
RHD 		$103.12 1
13 86120773AB
Heatshield- Steering Rack
LHD 		$72.93 1
14 697133
SCREW M8 x 20 HEX HEAD GRD 8.8 		$0.80 2
15 697134
WASHER M8 X 25 X 1.8 PLAIN ZINC YELL 		$0.84 2
16 86122212AB
H/SHIELD GAITOR STRG RACK RHD ASSY
RHD 		$161.32 1
16 86122213AB
Heatshield- Gaiter Steering Rack Assy
LHD 		- 1 Enquire
17 692089
SCREW M8 x 16 HEX HD GRD 8 8 ZINC PLT 		$0.47 1
18 697134
WASHER M8 X 25 X 1.8 PLAIN ZINC YELL 		$0.84 2
19 692135
NUT M8 HEX SLK GRD 8 ZINC PLT 		$1.45 1
20 699233PK
TIE-STRAP HT RES-100 		$87.72 3
21 3386540
ASSY - PAS RESERVOIR
From (V) 402725 		$1,052.36 1
21 33124714AA
ASSY SUPPORT BRACKET PAS RESERVOIR
From (V) 402725 		$23.73 1
21 33124713AA
CLAMP BRACKET PAS RESERVOIR
From (V) 402725 		$35.71 1
21 HY53E804349AA
M6 X 14 SCREW HEX HD
From (V) 402725
IN STOCK 		$0.66 2
21 3385920
PAS RESERVOIR KIT DB7 VANTAGE 		$611.48 1
22 697122
NUT M6 NYLOC
IN STOCK 		$0.08 2
23 697286
Washer M6 Large OD
IN STOCK 		$1.37 2
24 44121325AA
OIL COOLER - PAS 		$323.70 2
25 4481588
MTG BRKT-OIL COOLER 		$66.70 2
25 4481589
MOUNTING RUBBER 		$11.99 2
26 697121
NUT/WASHER ASSY-M6 		$1.36 4
27 33125120AA
ASSY HOSE HIGH PRESSURE PUMP TO RACk RHD
RHD- P/S Pump to Strg Rack
IN STOCK 		$111.34 1
27 33125121AA
High Pressure Hose Pump To Rack LHD
LHD- P/S Pump to Strg Rack
IN STOCK 		$113.53 1
28 4283510
RUBBER SLEEVE- AUTO TRANS.PIPES
RHD Only 		$5.72 1
29 33120744AB
ASSY HOSE LOW PRESSURE RHD
RHD- Strg Rack to Oil Cooler 		$453.91 1
29 33120745AC
Low Pressure Hose
LHD- Strg Rack to Oil Cooler
IN STOCK 		$258.72 1
30 699327
CLIP-HOSE SUPPORT
RHD Only 		$2.79 1
31 24121330AA
Low Pressure Hose
Oil Cooler to Reservoir
IN STOCK 		$167.37 1
32 114679
HOSE-CLIP S/STEEL
IN STOCK 		$0.79 2
33 692613
Hose-Clip 10-16mm
IN STOCK 		$2.35 1
34 697274PK
TIE STRAP(PK OF 100) 		$59.26 2
35 698944
CLIP DOUBLE PIPE 24 DIA + 16 DIA 		$4.02 1
36 697615
SCREW 5/16 UNF x1/2 HEX AB ST
RHD 		$0.41 2
36 697615
SCREW 5/16 UNF x1/2 HEX AB ST
LHD 		$0.41 4
37 33120746AB
Hose Low Pressure reservoir
Reservoir to Pump
IN STOCK 		$137.86 1
37 33123061AB
CONDUIT-FLEXIBLE BLACK 25mm
Reservoir to Pump
IN STOCK 		$14.32 2
37 3790075
Cable Tie, 290mm
Reservoir to Pump
IN STOCK 		$0.11 2
38 698943
CLIP PIPE 25 DIA
LHD 		$5.59 1
38 698943
CLIP PIPE 25 DIA
RHD 		$5.59 3
39 697242
SCREW M8 x 10 HEX RECESS CAP HEAD 		$0.55 1
40 2481033
WASHER SPECIAL- ALUMINIUM 		$0.16 1
41 2485217
PIPE CLIP-DOUBLE
LHD Only 		$0.77 2
42 2481035
ASSY-STIFFENER-RHD WELDED
RHD 		$158.27 1
42 2481036
ASSY-STIFFENER-LHD WELDED
LHD 		$112.41 1
43 697119
SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8
RHD 		$1.18 1
43 699327
CLIP-HOSE SUPPORT
RHD 		$2.79 1
43 697122
NUT M6 NYLOC
RHD
IN STOCK 		$0.08 1
43 33120741AE
ASSY BRACKET MTG MISFIRE MODULE RH 		$60.89 1
44 24123052AA
Clip, worm 		- 1 Enquire
45 2481733
STRG RACK GAITER & CLIP KIT 		$146.29 1
46 23125070AA
STEERING RACK SPACER
Optional, standard on GT 		$5.22 2
46 3481380
EDGE FINISHER- DRAFLEX STRIP
Located on Engine Mnts 		$6.38 2
46 2481732
COLLAR-STEERING RACK MOUNTING 		$13.09 2
