Aston Martin DB7 Vantage - Intake Manifolds and Throttles

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
885788 INTAKE MANIFOLD ASSY $958.32 To Order
Photo Part No Description Price (each) Stock
885153 Gasket Inlet Manifold/Cylinder Head $130.01 ARRIVING SOON
Photo Part No Description Price (each) Stock
697767 SCREW M6 x 35 W/WSHR $19.65 To Order
885154 GOOSENECK-EGR RH $765.15 To Order
Photo Part No Description Price (each) Stock
885155 GOOSENECK-EGR LH $765.15 To Order
Photo Part No Description Price (each) Stock
885156 BRACKET-T/CABLE $76.50 To Order
Photo Part No Description Price (each) Stock
885157 GASKET-AIR BYPASS $17.47 IN STOCK
Photo Part No Description Price (each) Stock
885307 SoleNoid-Idle Air Control $89.23 IN STOCK
Photo Part No Description Price (each) Stock
697768 Bolt, flg, M6 x 33.25 Enquire To Order
Photo Part No Description Price (each) Stock
885160 TUBE $20.25 To Order
Photo Part No Description Price (each) Stock
697769 SCREW M6 x 23 W/WASR $0.84 To Order
Photo Part No Description Price (each) Stock
885161 Gasket - Throttle Body $28.79 IN STOCK
Photo Part No Description Price (each) Stock
697770 BOLT M6 $3.10 To Order
Photo Part No Description Price (each) Stock
885162 THROTTLE BODY ASSY $1,194.19 To Order
885163 THROTTLE BODY ASSY $969.38 To Order
Photo Part No Description Price (each) Stock
885164 GASKET THROTTLE BODY/INTAKE MANIFOLD $19.89 IN STOCK
Photo Part No Description Price (each) Stock
697770 BOLT M6 $3.10 To Order
Photo Part No Description Price (each) Stock
697769 SCREW M6 x 23 W/WASR $0.84 To Order
Photo Part No Description Price (each) Stock
8121164AE THROTTLE MECH ASSY $991.52 To Order
97125206AA GT INLET MANIFOLD BADGE $87.25 To Order
97121834AA NAME PLATE - INTAKE MANIFOLD $108.36 To Order
Photo Part No Description Price (each) Stock
8121152AC ASSY MOUNTING BRKT THROTTLE MECHANISM $291.64 To Order
8122147AC ASSY THROTTLE CAM PULLEY Enquire To Order
Photo Part No Description Price (each) Stock
8121164AE THROTTLE MECH ASSY $991.52 To Order
Photo Part No Description Price (each) Stock
8121164AE THROTTLE MECH ASSY $991.52 To Order
Photo Part No Description Price (each) Stock
8122048AA PLAIN BEARING - BRON ZE BUSH $2.92 To Order
Photo Part No Description Price (each) Stock
8121164AE THROTTLE MECH ASSY $991.52 To Order
Photo Part No Description Price (each) Stock
8121164AE THROTTLE MECH ASSY $991.52 To Order
Photo Part No Description Price (each) Stock
692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED $1.81 To Order
Photo Part No Description Price (each) Stock
692044 WASHER M4 SPRG TYPE A WRGHT STEEL ZINC PLT $0.06 To Order
Photo Part No Description Price (each) Stock
8122049AB SHAFT - THROTTLE MECHANISM $225.46 To Order
Photo Part No Description Price (each) Stock
699271 NUT M8 HEX METLOC GRD 8 ZINC PLT $0.08 To Order
Photo Part No Description Price (each) Stock
8121155AB SPACER-THROTTLE MECH $9.09 To Order
Photo Part No Description Price (each) Stock
699272 SUPPORT WASHER DIA 8 SPRING MATERS S90050 $0.65 To Order
Photo Part No Description Price (each) Stock

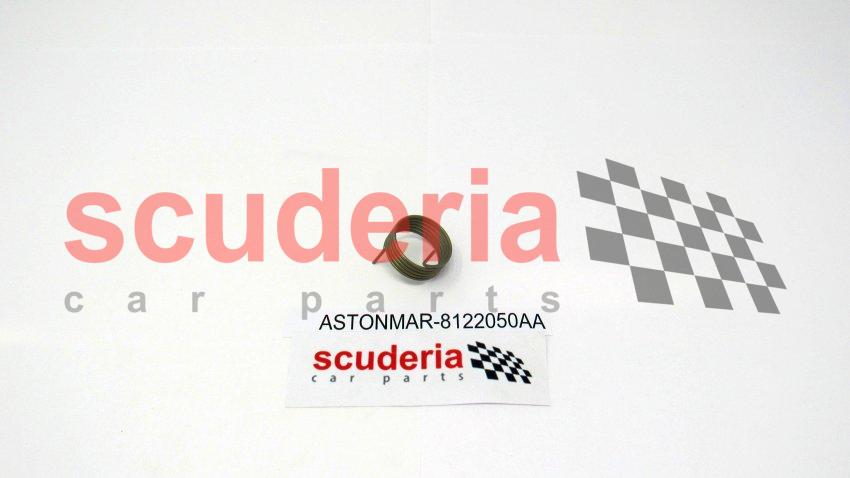

8122050AA Spring - Torsion $4.24 To Order
Photo Part No Description Price (each) Stock
698916 CIRCLIP $0.08 To Order
Photo Part No Description Price (each) Stock
693824 SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE $0.54 To Order
Photo Part No Description Price (each) Stock
692074 NUT M4 HEX GRD 8 ZINC PLT $0.11 To Order
Photo Part No Description Price (each) Stock
698923 GROMMET $5.07 To Order
Photo Part No Description Price (each) Stock
8122182AB ASSY CABLE - PEDAL ACCELERATOR RHD $914.95 To Order
8122183AB ASSY CABLE - PEDAL ACCELERATOR LHD $163.01 To Order
Photo Part No Description Price (each) Stock
8121163AB ASSY CABLE-THROTTLE BODY $218.84 To Order
Photo Part No Description Price (each) Stock
34122422AB CLIP - PCV HOSE $3.97 To Order
Photo Part No Description Price (each) Stock
885383 SENSOR-THROTTLE POSN $187.50 To Order
884204 SINGLE TRACK THROTTL POTENTIOMETER FORD: $439.49 To Order
Photo Part No Description Price (each) Stock
2981279 RETAINER-ACCELERATOR CABLE RHD $0.44 To Order
698948 CLIP - ACCELERATOR CABLE $1.81 To Order
8120917AA CLIP-CABLE RETENTION $0.58 To Order
...and 3 more part variants. See table on right for more details.
View All

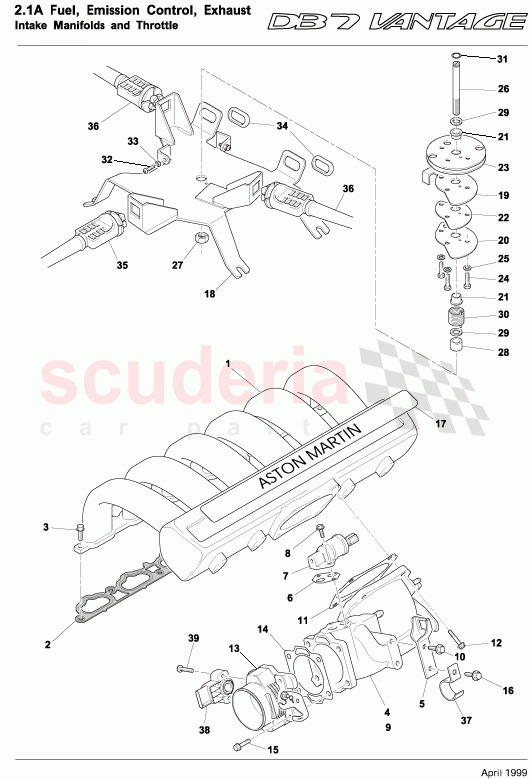

Intake Manifolds and Throttles of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 885788
INTAKE MANIFOLD ASSY 		$958.32 2
2 885153
Gasket Inlet Manifold/Cylinder Head
ARRIVING SOON 		$130.01 2
3 697767
SCREW M6 x 35 W/WSHR
Inlet manifolds to cylinder heads 		$19.65 14
3 885154
GOOSENECK-EGR RH 		$765.15 1
4 885155
GOOSENECK-EGR LH 		$765.15 1
5 885156
BRACKET-T/CABLE 		$76.50 2
6 885157
GASKET-AIR BYPASS
IN STOCK 		$17.47 2
7 885307
SoleNoid-Idle Air Control
IN STOCK 		$89.23 2
8 697768
Bolt, flg, M6 x 33.25 		- 4 Enquire
9 885160
TUBE 		$20.25 2
10 697769
SCREW M6 x 23 W/WASR
Cable brace to throttle body adaptor 		$0.84 2
11 885161
Gasket - Throttle Body
IN STOCK 		$28.79 2
12 697770
BOLT M6 		$3.10 8
13 885162
THROTTLE BODY ASSY 		$1,194.19 1
13 885163
THROTTLE BODY ASSY 		$969.38 1
14 885164
GASKET THROTTLE BODY/INTAKE MANIFOLD
IN STOCK 		$19.89 2
15 697770
BOLT M6 		$3.10 8
16 697769
SCREW M6 x 23 W/WASR 		$0.84 2
17 8121164AE
THROTTLE MECH ASSY 		$991.52 1
17 97125206AA
GT INLET MANIFOLD BADGE 		$87.25 2
17 97121834AA
NAME PLATE - INTAKE MANIFOLD 		$108.36 2
18 8121152AC
ASSY MOUNTING BRKT THROTTLE MECHANISM 		$291.64 1
18 8122147AC
ASSY THROTTLE CAM PULLEY 		- 1 Enquire
19 8121164AE
THROTTLE MECH ASSY 		$991.52 1
20 8121164AE
THROTTLE MECH ASSY 		$991.52 1
21 8122048AA
PLAIN BEARING - BRON ZE BUSH 		$2.92 2
22 8121164AE
THROTTLE MECH ASSY 		$991.52 1
23 8121164AE
THROTTLE MECH ASSY 		$991.52 1
24 692785
SCREW M4 x 16 POSI PAN HEAD ZINC PLATED 		$1.81 3
25 692044
WASHER M4 SPRG TYPE A WRGHT STEEL ZINC PLT 		$0.06 3
26 8122049AB
SHAFT - THROTTLE MECHANISM 		$225.46 1
27 699271
NUT M8 HEX METLOC GRD 8 ZINC PLT 		$0.08 1
28 8121155AB
SPACER-THROTTLE MECH 		$9.09 1
29 699272
SUPPORT WASHER DIA 8 SPRING MATERS S90050 		$0.65 2
30 8122050AA
Spring - Torsion 		$4.24 1
31 698916
CIRCLIP 		$0.08 1
32 693824
SCREW M4 x 20 CHROME PAN HEAD POZI DRIVE 		$0.54 2
33 692074
NUT M4 HEX GRD 8 ZINC PLT 		$0.11 2
34 698923
GROMMET 		$5.07 2
35 8122182AB
ASSY CABLE - PEDAL ACCELERATOR RHD
RHD 		$914.95 1
35 8122183AB
ASSY CABLE - PEDAL ACCELERATOR LHD
LHD 		$163.01 1
36 8121163AB
ASSY CABLE-THROTTLE BODY 		$218.84 2
37 34122422AB
CLIP - PCV HOSE 		$3.97 1
38 885383
SENSOR-THROTTLE POSN 		$187.50 1
38 884204
SINGLE TRACK THROTTL POTENTIOMETER FORD: 		$439.49 1
39 2981279
RETAINER-ACCELERATOR CABLE RHD 		$0.44 1
39 698948
CLIP - ACCELERATOR CABLE 		$1.81 1
39 8120917AA
CLIP-CABLE RETENTION 		$0.58 2
39 699101
SCREW 		$0.74 4
39 697622
WASHER .20 PLAIN .20 X .75 OD X .04 T 		$2.71 8
39 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 8
