Engine Electrical Components

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Engine Electrical Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G4311000AB STARTER MOTOR DRIVE RELAY $870.50 To Order
Photo Part No Description Price (each) Stock
703277 BOLT-M10x1.5x40 $0.70 To Order
695455 BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8 $2.50 To Order
692058 WASHER M10 PLAIN MED MILD STEEL ZINC PLT $0.17 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock

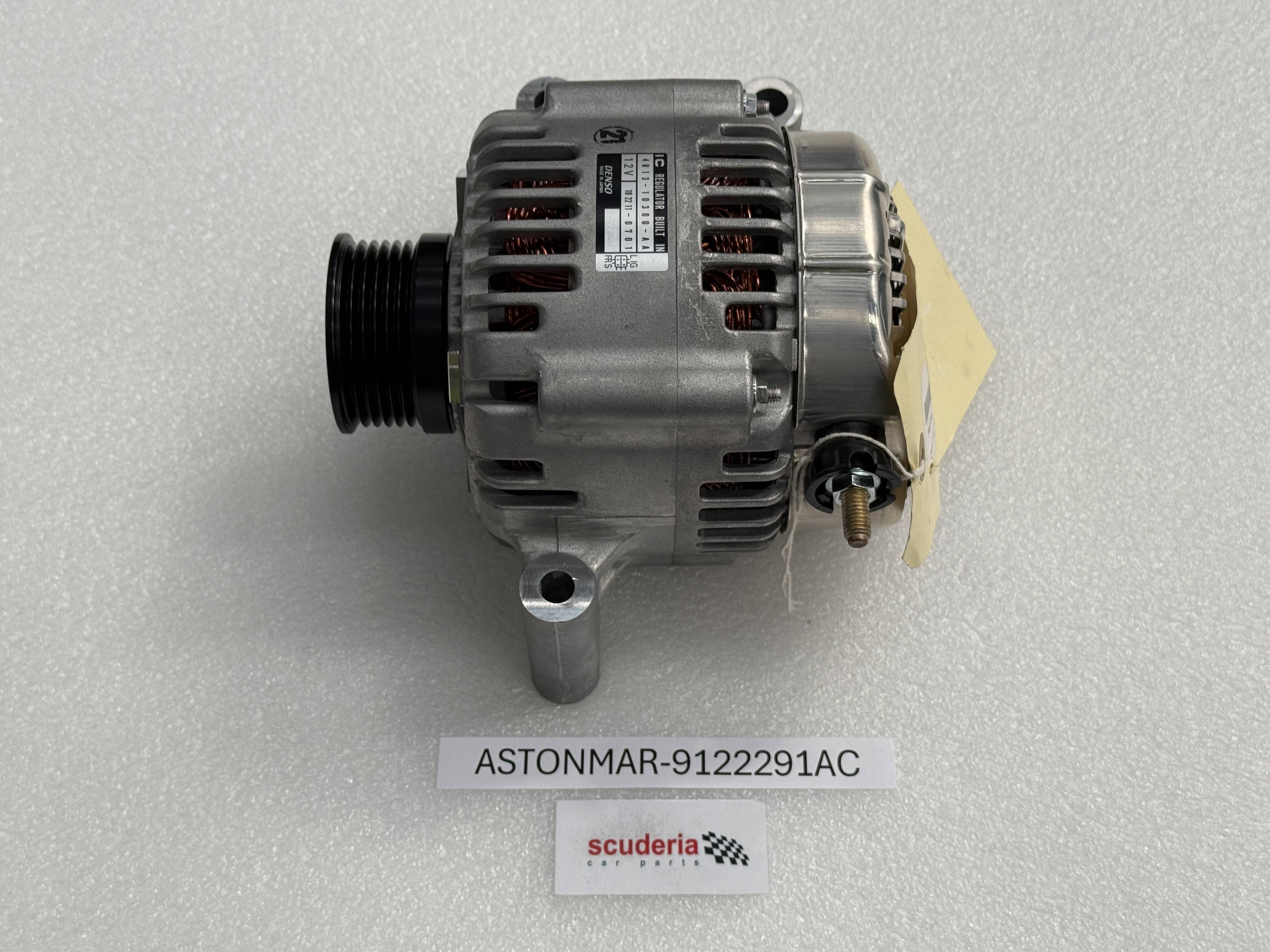

9122291AC ALTERNATOR $786.08 IN STOCK
Photo Part No Description Price (each) Stock
985125 ALTERNATOR BRACKET $164.98 To Order
Photo Part No Description Price (each) Stock
697759 Dowel, hollow, 14.0 X 17.5 Enquire To Order
Photo Part No Description Price (each) Stock
697760 BOLT M10 x 45 FLG $0.13 To Order
Photo Part No Description Price (each) Stock
697761 Bolt, flg, M10 X 156 Enquire To Order
Photo Part No Description Price (each) Stock
697762 BOLT M10 x 85.3 FLG $0.12 To Order
Photo Part No Description Price (each) Stock
785890PK Spark Plug (Pack of 4) $131.28 IN STOCK
Photo Part No Description Price (each) Stock
91701 HARNESS ASSY-ENGINE $3,470.00 To Order
3782020 EARTH ENGINE BODY $24.52 To Order
3785129 Jumper harness Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3985131 TRANSDUCER-DPFE $80.14 To Order
Photo Part No Description Price (each) Stock
86121075AC HEATSHIELD - STARTER MOTOR $36.72 To Order
Photo Part No Description Price (each) Stock
1R12371081AA HEATSHIELD - ALTERNATOR $1,178.85 To Order
1R12370806AA DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG $65.09 To Order
699233PK TIE-STRAP HT RES-100 $93.35 To Order
View All
Engine Electrical Components of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G4311000AB
STARTER MOTOR DRIVE RELAY 		$870.50 1
2 703277
BOLT-M10x1.5x40
Manual Starter motor attach 		$0.70 2
2 695455
BOLT M10x70 HEX FLG BOLT M10x70 HEX FLG SLK GRK 8.8
Auto Starter motor attach 		$2.50 2
2 692058
WASHER M10 PLAIN MED MILD STEEL ZINC PLT
Auto Starter motor attach 		$0.17 2
2 707926
NUT M10 HEX FLANGE P/T
Auto Starter motor attach
IN STOCK 		$0.92 2
2 14124439AA
STARTER MOTOR SHIM 		$7.46 1
3 9122291AC
ALTERNATOR
IN STOCK 		$786.08 1
4 985125
ALTERNATOR BRACKET 		$164.98 1
5 697759
Dowel, hollow, 14.0 X 17.5
Generator bracket to cylinder head 		- 2 Enquire
6 697760
BOLT M10 x 45 FLG
Generator bracket to cylinder head 		$0.13 3
7 697761
Bolt, flg, M10 X 156
Generator to bracket 		- 1 Enquire
8 697762
BOLT M10 x 85.3 FLG
Generator to bracket 		$0.12 2
9 785890PK
Spark Plug (Pack of 4)
IN STOCK 		$131.28 12
10 91701
HARNESS ASSY-ENGINE 		$3,470.00 1
10 3782020
EARTH ENGINE BODY 		$24.52 1
10 3785129
Jumper harness 		- 1 Enquire
10 785127
Ignition Coil and Boot Assembly - 3 Pin
ARRIVING SOON 		$169.44 12
10 CD330710073
CAPACITOR ASY-RADIO 		$16.97 2
11 3985131
TRANSDUCER-DPFE 		$80.14 2
12 86121075AC
HEATSHIELD - STARTER MOTOR 		$36.72 1
13 1R12371081AA
HEATSHIELD - ALTERNATOR 		$1,178.85 1
13 1R12370806AA
DUCT - ALTERNATOR HEATSHIELD - SIZE 40 I/D x 740mm LONG 		$65.09 1
13 699233PK
TIE-STRAP HT RES-100 		$93.35 3
