Aston Martin DB7 (1997) - Wheels and Tyres

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3686560 TYRE FRT-245/40 R18 $444.76 To Order
Photo Part No Description Price (each) Stock
91321 WHEEL 8Jx18in x 14.5 mm SPARK SILVER $433.56 To Order
Photo Part No Description Price (each) Stock
3680551 TYRE VALVE-METAL $19.56 To Order
Photo Part No Description Price (each) Stock
3680552 ASSY BALANCE WEIGHT STRIP=3x10g;6x5g=60g AIRVERT VC07 60G $7.73 To Order
Photo Part No Description Price (each) Stock
3684683 WHEEL NUT STAINLESS STEEL $36.73 IN STOCK
Photo Part No Description Price (each) Stock
3680556 Wheel cover assembly $58.76 To Order
36110884AA KIT-SMALL WHEEL CAP STANDARD WHEEL $280.43 To Order
Photo Part No Description Price (each) Stock
36111839AA KIT-SMALL WHEEL CAP (98.5MY USA) $275.42 To Order
36111840AA Small wheel cap Enquire To Order
36111829AA WHEEL-8Jx18x14.5mm (98.5MY USA) $1,073.53 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3680563 WASHER - CLAMP SCREW $5.77 To Order
View All

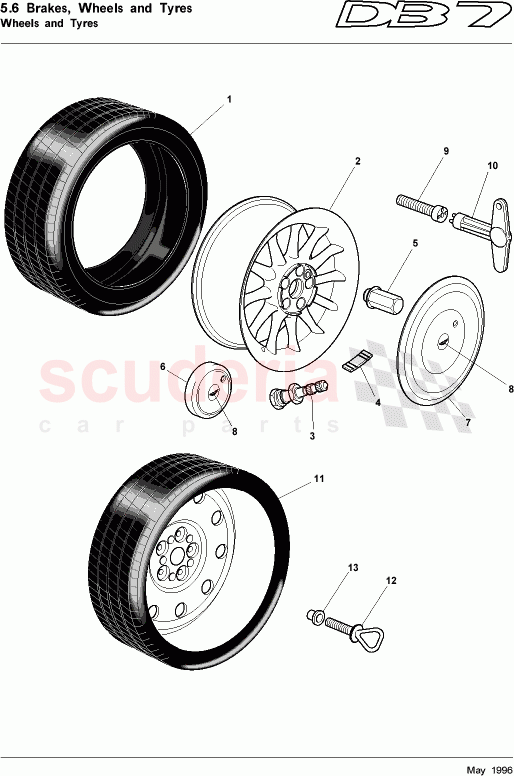

Wheels and Tyres of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9783763
LABEL-SNOW WHEEL
Affix to windscreen 		$2.64 1
- 3684643
Wheel nut
From (V) 201481 		- 20 Enquire
- 36111590AA
ASY-S/WHL CAP-SNGL-D
Dunhill cars 		$77.00 1
- 36111658AA
Wheel & tyre assembly - RH
Dunhill cars 		- 2 Enquire
- 36111657AA
Wheel & tyre assembly - LH
Dunhill cars 		- 2 Enquire
- 91475
RD WHL-8Jx18x14.5mm
Dunhill cars 		$899.41 4
- 36130021AA
Valve, rubber snap-in
Dunhill cars 		- 4 Enquire
- 7682639
SPACER BUTTON
IN STOCK 		$0.68 1
- 36110884AA
KIT-SMALL WHEEL CAP STANDARD WHEEL 		$280.43 1
- 3683757
Wheel & tyre assembly - RH - winter 		$981.62 2
- 3683758
Wheel & tyre assembly - LH - winter 		$981.62 2
- 3686560
TYRE FRT-245/40 R18 		$444.76 2
- 3685704
WHL CTR BADGE&VLV KT 		$73.77 4
- 3683759
Tyre, winter Pirelli 225/55 x 16 		$321.84 4
- 3683761
TRIM ASSY- WINTER WHEEL 		$440.70 4
- 3684022
Spring clip, wheel cover 		- 4 Enquire
- 3683762
Key - winter wheel cover 		- 4 Enquire
- 3683832
T/VALVE-SNAP IN WINTER WHEEL RUBBER COVERED 		$16.49 4
- 3683760
WHEEL - WINTER 		$868.98 4
- 4580553
Lubricant liquid tyre bead 		- - Enquire
- 705623
GREASE-RED 		$66.48 -
1 3686560
TYRE FRT-245/40 R18 		$444.76 2
2 91321
WHEEL 8Jx18in x 14.5 mm SPARK SILVER 		$433.56 4
3 3680551
TYRE VALVE-METAL
Not winter wheel 		$19.56 4
4 3680552
ASSY BALANCE WEIGHT STRIP=3x10g;6x5g=60g AIRVERT VC07 60G 		$7.73 4
5 3684683
WHEEL NUT STAINLESS STEEL
Up to (V) 201480
IN STOCK 		$36.73 20
6 3680556
Wheel cover assembly
Optional 		$58.76 4
6 36110884AA
KIT-SMALL WHEEL CAP STANDARD WHEEL 		$280.43 4
9 36111839AA
KIT-SMALL WHEEL CAP (98.5MY USA)
98.5 MY USA DB7 		$275.42 1
9 36111840AA
Small wheel cap
98.5 MY USA DB7 		- 4 Enquire
9 36111829AA
WHEEL-8Jx18x14.5mm (98.5MY USA)
98.5 MY USA DB7 		$1,073.53 4
9 36111842AA
Kit - small wheel cap
Beverley Hills 		- 1 Enquire
9 36111843AA
Small wheel cap
Beverley Hills 		- 4 Enquire
9 36111827AA
WHEEL-8Jx18 x14.5mm (BEVERLY HILLS)
Beverley Hills 		- 4 Enquire
9 36111845AA
Kit - small wheel cap
Neiman Marcus 		- 1 Enquire
9 36111846AA
Small wheel cap
Neiman Marcus 		- 4 Enquire
9 91474
RD WHL-8Jx18x14.5mm
Neiman Marcus 		$832.95 4
9 36111686AA
KIT-WHL TRM LCK BLT 		$67.34 1
9 3684780
ROAD WHEEL BADGE AND CENTRE ASSY 		$112.80 4
9 3684781
ROAD WHEEL BADGE AND ADHESIVE PAD 		$89.23 4
13 3680563
WASHER - CLAMP SCREW 		$5.77 1
