Aston Martin DB7 (1997) - Harnesses and Relays

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3784049 Harness, bulkhead $1,370.89 To Order
Photo Part No Description Price (each) Stock
3782017 HARNESS GEAR SHIFT INTERLOCK $52.01 To Order
Photo Part No Description Price (each) Stock
3784053 Harness, engine $1,721.89 To Order
Photo Part No Description Price (each) Stock
37123644AA LINK LEAD FUEL FILLER EARTH STRAP $6.37 To Order
3782020 EARTH ENGINE BODY $23.10 To Order
Photo Part No Description Price (each) Stock
3784051 HARNESS-REARWARD $5,566.11 To Order
Photo Part No Description Price (each) Stock
3784047 HARNESS-HOOD LIFT $174.15 To Order
Photo Part No Description Price (each) Stock
3781998 Harness, sill $446.69 To Order
Photo Part No Description Price (each) Stock
3784052 Harness, console $87.08 To Order
Photo Part No Description Price (each) Stock
3784155 ABS HARNESS RHD $205.07 To Order
Photo Part No Description Price (each) Stock
3784157 HARNESS-MANUAL TRANS LINK $21.63 To Order
Photo Part No Description Price (each) Stock
3782001 HARNESS BOOT LID $1,119.49 To Order
Photo Part No Description Price (each) Stock
3783334 HARNESS-HIGH MOUNTED STOP LIGHT-COUPE $18.55 To Order
Photo Part No Description Price (each) Stock
3781999 HARNESS SEAT $401.39 To Order
Photo Part No Description Price (each) Stock
3785604 LINK LEAD H/LAMP-RH $82.22 To Order
View All

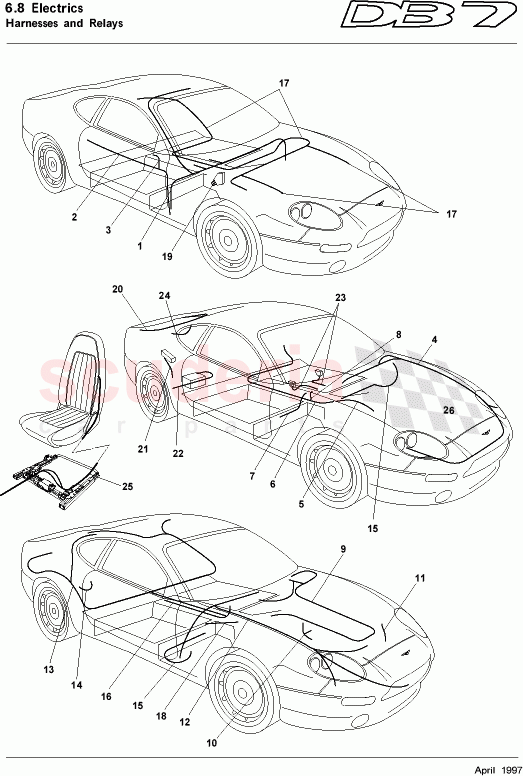

Harnesses and Relays of Aston Martin Aston Martin DB7 (1997) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 3781954
RELAY ASSY- WITH LABEL
Volante only - bulkhead mounted 		$7.20 1
- 37111777AA
HARNESS - CHMSL (COUPE)
Coupe From (V) 202473 		$21.71 1
- 3784050
HARNESS-BULKHEAD LHD
LHD Up to (V) 101620 		$2,124.18 1
- 37110514AC
HARNESS-BULKHEAD RHD
RHD From (V) 101621 		$1,365.84 1
- 37110515AA
Harness, bulkhead
LHD From (V) 101621 		- 1 Enquire
- 3784537
Harness, trunk lid
AUS, M.E., J.S.A. 		$168.29 1
- 37110556AC
HARNESS - REARWARD
From (V) 101621 		$1,037.62 1
- 37110512AA
Harness, console
From (V) 101621 		- 1 Enquire
- 37110864AB
HARNESS - ENGINE
From (V) 101711 		$1,311.57 1
- 37110513AA
HARNESS - SILL
From (V) 101621 		$40.84 2
- 37110516AC
HARNESS - SEAT
From (V) 101621 		$72.00 2
- 3781955
RELAY ASY-WITH LABEL CHANGE-OVER
Volante only 		$60.67 6
- 3781955
RELAY ASY-WITH LABEL CHANGE-OVER
Manual only 		$60.67 1
- 3784602
Harness, exhaust temperature warning
Japan only 		- 1 Enquire
- 3784222
HARNESS-HIGH MTD STOP LAMP-CONV
Volante 		$25.56 1
- 3784154
INTERIOR LIGHT LINK HARNESS
Volante 		$4.58 1
- 3784356
LOUDSPEAKER LINK LEAD-VOL
Volante 		$14.68 2
- 3782015
HARNESS REAR COURTESY CONV
Coupe 		$74.86 2
- 9784241
LABEL-FUSEBOX RH RHD
RHD 		$2.76 1
- 9784242
LABEL-FUSEBOX LH RHD
RHD 		$3.02 1
- 9784243
LABEL-FUSEBOX RH LHD
LHD 		$8.01 1
- 9784244
LABEL-FUSEBOX LH LHD
LHD 		$8.01 1
- 3784156
ABS HARNESS LHD
LHD 		$215.15 1
- 3784670
SHORTING PLUG P.B.P. 		$5.34 1
- 3784671
CONNECTOR 		$5.02 1
- 9784245
LABEL-LEFT FORWARD FUSEBOX 		$3.02 1
- 3781954
RELAY ASSY- WITH LABEL 		$7.20 1
- 3781955
RELAY ASY-WITH LABEL CHANGE-OVER 		$60.67 1
- 3784161
Controller, radiator fan 		- 1 Enquire
- 9784246
LABEL-REARWARD FUSEBOX 		$3.19 1
- 9784162
LABEL-RAD FAN CONTROLLER 		$2.76 1
- 3781959
RELAY MAIN PI 		$125.81 1
- 3782217
Harness, chassis 		- 1 Enquire
- 3781954
RELAY ASSY- WITH LABEL 		$7.20 2
- 3781956
RELAY-FUEL PUMP 		$112.00 2
- 3781954
RELAY ASSY- WITH LABEL 		$7.20 3
- 3784406
CLIP 		$1.06 -
1 3784049
Harness, bulkhead
RHD Up to (V) 101620 		$1,370.89 1
8 3782017
HARNESS GEAR SHIFT INTERLOCK 		$52.01 1
9 3784053
Harness, engine
Up to (V) 101710 		$1,721.89 1
11 37123644AA
LINK LEAD FUEL FILLER EARTH STRAP 		$6.37 1
11 3782020
EARTH ENGINE BODY 		$23.10 1
13 3784051
HARNESS-REARWARD
Up to (V) 101620 		$5,566.11 1
14 3784047
HARNESS-HOOD LIFT
Volante 		$174.15 1
15 3781998
Harness, sill
Up to (V) 101620 		$446.69 2
16 3784052
Harness, console
Up to (V) 101620 		$87.08 1
17 3784155
ABS HARNESS RHD
RHD 		$205.07 1
18 3784157
HARNESS-MANUAL TRANS LINK 		$21.63 1
20 3782001
HARNESS BOOT LID
Not AUS, M.E., J.S.A. 		$1,119.49 1
24 3783334
HARNESS-HIGH MOUNTED STOP LIGHT-COUPE
Coupe Up to (V) 202472 		$18.55 1
25 3781999
HARNESS SEAT
Up to (V) 101620 		$401.39 2
26 3785604
LINK LEAD H/LAMP-RH 		$82.22 2
