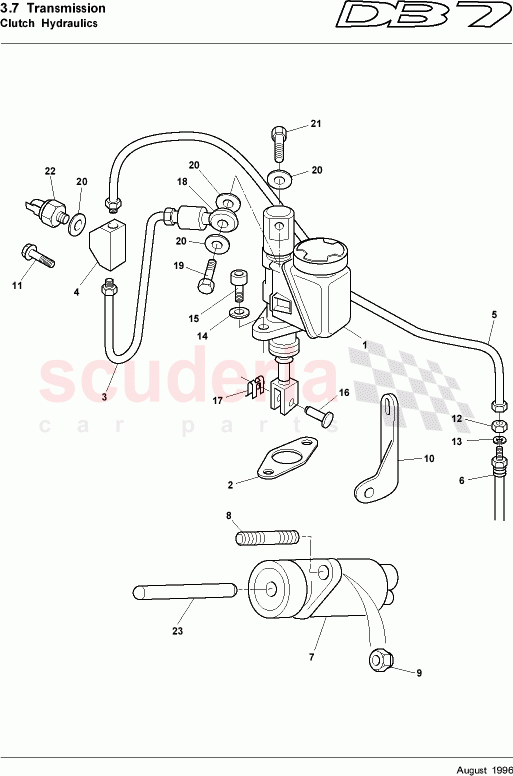

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3380473	PIPE ASSY-C/MCYL-TEE	$19.63	To Order

Photo	Part No	Description	Price (each)	Stock
	3380475	PIPE ASY-TEE TO HOSE	$75.66	To Order

Photo	Part No	Description	Price (each)	Stock
	3384324	CLUTCH PIPE SUPPORT BRACKET	$39.29	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	1190161	PIPE ASSY-C/MCYL-TEE	1190161 PIPE ASSY-C/MCYL-TEE LHD	$11.64	1
-	3380480	CLUTCH PIPE SUPPORT BRACKET LHD	3380480 CLUTCH PIPE SUPPORT BRACKET LHD LHD	$7.92	1
-	1190162	PIPE-TEE TO HOSE LHD	1190162 PIPE-TEE TO HOSE LHD LHD	$13.87	1
3	3380473	PIPE ASSY-C/MCYL-TEE	3380473 PIPE ASSY-C/MCYL-TEE RHD	$19.63	1
5	3380475	PIPE ASY-TEE TO HOSE	3380475 PIPE ASY-TEE TO HOSE RHD	$75.66	1
10	3384324	CLUTCH PIPE SUPPORT BRACKET	3384324 CLUTCH PIPE SUPPORT BRACKET RHD	$39.29	1
24	3380487	Clip edge cable 9/16" Dia	3380487 Clip edge cable 9/16" Dia	-	1	Enquire
24	9781700	LABEL - BRAKE FLUID	9781700 LABEL - BRAKE FLUID	$1.98	1
24	9781701	LABEL - BRAKE FLUID	9781701 LABEL - BRAKE FLUID	$6.08	1
24	9781702	LABEL-BRAKE FLUID	9781702 LABEL-BRAKE FLUID	$1.59	1
24	3383080	PUSH ROD	3383080 PUSH ROD	$31.95	1
24	697189	LOCKNUT HEX	697189 LOCKNUT HEX	$0.36	1
24	697608	Brake/clutch fluid	697608 Brake/clutch fluid	-	-	Enquire
