Name: Induction and Supercharger
Rating: 4.7 (1 reviews)

View All

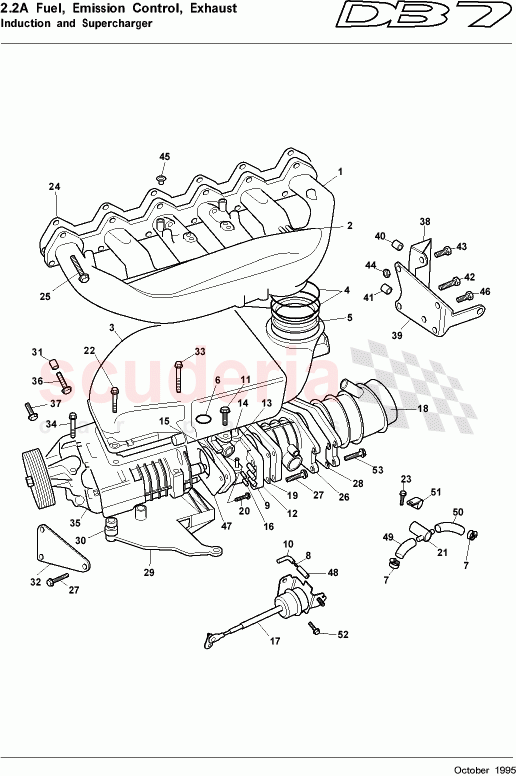

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	881607	STUB PIPE- BREATHER RESTRICTOR	$16.68	To Order
	881610	ADJUSTING SCREW	$5.90	To Order
	881608	BUTTERFLY-BYPASS	$44.00	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	$0.63	IN STOCK
	697109	BOLT M8 x 35 HEX FLANGED HEAD GRD 8.8	$0.77	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
13	880815	SUPERCHARGER INLET	880815 SUPERCHARGER INLET Part of 80-80813	$453.07	1
13	880816	SPINDLE - BYPASS	880816 SPINDLE - BYPASS Part of 80-80813	$189.24	1
13	880817	BUSH - BEARING	880817 BUSH - BEARING Part of 80-80813	$4.26	2
13	880814	LIPSEAL (CR 3060)	880814 LIPSEAL (CR 3060) Part of 80-80813	$5.31	2
15	881607	STUB PIPE- BREATHER RESTRICTOR	881607 STUB PIPE- BREATHER RESTRICTOR Part of 80-80813	$16.68	1
15	881610	ADJUSTING SCREW	881610 ADJUSTING SCREW Part of 80-80813	$5.90	1
15	881608	BUTTERFLY-BYPASS	881608 BUTTERFLY-BYPASS Part of 80-80813	$44.00	1
15	881609	SCREW 1/8 BSW C/SUNK	881609 SCREW 1/8 BSW C/SUNK Part of 80-80813	$1.98	2
25	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE Inlet manifold/cylinder head IN STOCK	$0.63	9
25	697109	BOLT M8 x 35 HEX FLANGED HEAD GRD 8.8	697109 BOLT M8 x 35 HEX FLANGED HEAD GRD 8.8	$0.77	4
28	883069	GASKET	883069 GASKET	$0.72	1
28	691462	LOCTITE 574 -SEALANT	691462 LOCTITE 574 -SEALANT	$52.06	-

Induction And Supercharger

Aston Martin DB7 (1995)
