Find Your Part

Photo Part No Description Price (each) Stock
77001-74010 Tank Assy Enquire To Order
Photo Part No Description Price (each) Stock
77196-12080 Clamp, Evaporation Vent Tube Enquire To Order
Photo Part No Description Price (each) Stock
77606-74011 Protector Sub-Assy, Fuel Tank, No 1 $295.71 To Order
Photo Part No Description Price (each) Stock
77602-74010 Band Sub-Assy, Fuel Tank, No 1 LH Enquire To Order
Photo Part No Description Price (each) Stock
77681-21020 Seat, Fuel Tank Band, LH Enquire To Order
Photo Part No Description Price (each) Stock
77601-74010 Band Sub-Assy, Fuel Tank, No 1 RH Enquire To Order
Photo Part No Description Price (each) Stock
77681-21020 Seat, Fuel Tank Band, LH Enquire To Order
Photo Part No Description Price (each) Stock
90119-10951 Bolt. W/Washer $1.84 To Order
Photo Part No Description Price (each) Stock
90179-06219 Nut, EL91 $1.14 To Order
Photo Part No Description Price (each) Stock
90467-09227 Clip $1.91 To Order
Photo Part No Description Price (each) Stock
77652-74010 Cushion, Fuel Tank, No. 2 Enquire To Order
Photo Part No Description Price (each) Stock
77651-74010 Cushion, Fuel Tank, No. 1 Enquire To Order
Photo Part No Description Price (each) Stock
77010-74011 Tube Assy, Fuel Tank Vent $191.37 To Order
Photo Part No Description Price (each) Stock
83320-74010 Gage Assy $99.80 To Order
Photo Part No Description Price (each) Stock
77144-74010 Retainer, Fuel Pump Gauge Enquire To Order
Photo Part No Description Price (each) Stock
77169-74010 Gasket, Fuel Tank Suction Tube $9.98 To Order
Photo Part No Description Price (each) Stock
77754-74010 Hose, Charcoal Canister Outlet, No.1, L=487 Enquire To Order
Photo Part No Description Price (each) Stock
77026-74010 Tube Sub-Assy, Fuel Evaporation, No. 1 Enquire To Order
Photo Part No Description Price (each) Stock
77027-74010 Tube Sub-Assy, Fuel Evaporation, No. 2 Enquire To Order
Photo Part No Description Price (each) Stock
77028-74010 Tube Sub-Assy, Fuel Emission, Rear Enquire To Order
Photo Part No Description Price (each) Stock
96132-51100 Clamp, Fuel Hose $2.14 To Order
Photo Part No Description Price (each) Stock
77197-42020 Clamp, Evaporation Vent Tube Enquire To Order
Photo Part No Description Price (each) Stock
82413-74010 Wire, Fuel Tank Enquire To Order
Photo Part No Description Price (each) Stock
77281-74010 Clamp, Fuel Hose Enquire To Order
Photo Part No Description Price (each) Stock
77024-74010 Plate Sub-Assy, Fuel Suction Enquire To Order
Photo Part No Description Price (each) Stock
23221-40010 Pump, Fuel Enquire To Order
Photo Part No Description Price (each) Stock
77652-74020 Cushion, Fuel Tank, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
77785-74010 Harness, Fuel Pump Enquire To Order
Photo Part No Description Price (each) Stock
23225-0T010 Spacer, Fuel Pump $7.42 To Order
Photo Part No Description Price (each) Stock
23280-21010 Regulator Assy, Fuel Pressure Enquire To Order
Photo Part No Description Price (each) Stock
90301-04013 O Ring, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
77175-74010 Support, Fuel Suction, No.2 Enquire To Order
Photo Part No Description Price (each) Stock
90301-08020 O Ring $4.13 To Order
Photo Part No Description Price (each) Stock
90301-08019 O Ring, Fuel Pump $4.34 To Order
Photo Part No Description Price (each) Stock
23217-40011 Filter, Fuel Pump $14.98 To Order
Photo Part No Description Price (each) Stock
77209-74010 Tube Sub-Assy, Fuel Tank Main Enquire To Order
Photo Part No Description Price (each) Stock
77241-33011 Clip, Tube Joint Enquire To Order
Photo Part No Description Price (each) Stock
77017-74010 Tube Sub-Assy, Fuel Tank Vent Enquire To Order
Photo Part No Description Price (each) Stock
77210-74030 Pipe, Fuel Tank Filler $205.52 To Order
Photo Part No Description Price (each) Stock
90119-10963 Bolt, W/Washer $1.60 To Order
Photo Part No Description Price (each) Stock
77391-12020 Ring, Fuel Inlet Box Enquire To Order
Photo Part No Description Price (each) Stock
77291-52010 Shield, Fuel Tank Filler Pipe Enquire To Order
Photo Part No Description Price (each) Stock
77300-52030 Cap Assy, Fuel Tank $23.48 To Order
Photo Part No Description Price (each) Stock
77350-74011 Lid Assy, Fuel Filler Opening Enquire To Order
Photo Part No Description Price (each) Stock
77366-52010 Spring, Fuel Filler Opening Lid Hinge Enquire To Order
Photo Part No Description Price (each) Stock
90269-06013 Rivet, Fuel Filler Opening Lid, MCV20 $0.46 To Order
Photo Part No Description Price (each) Stock
77035-74020 Cable Sub Assy, Fuel Lid Lock Control, RHD Enquire To Order
Photo Part No Description Price (each) Stock
77377-52020 Retainer, Fuel Filler Opening Lid Lock Enquire To Order
Photo Part No Description Price (each) Stock
77306-52030 Lever Sub Assy, Fuel Lid Lock Opening, RHD $33.43 To Order
Photo Part No Description Price (each) Stock
64648-12020 Grommet, Luggage Door Lock Opening Enquire To Order
Photo Part No Description Price (each) Stock
90159-60602 Screw, with Washer $0.85 To Order
Photo Part No Description Price (each) Stock
77333-74020 Clamp, Fuel Lid Lock Control Cable, No.2, RHD Enquire To Order
Photo Part No Description Price (each) Stock
77333-74010 Clamp, Fuel Lid Lock Control Cable, No.1 Enquire To Order
Photo Part No Description Price (each) Stock
82711-2A250 Clamp, Fuel Lid Lock Control Cable Enquire To Order
Photo Part No Description Price (each) Stock
77333-74030 Retainer, Fuel Filler Opening Lid Lock Enquire To Order

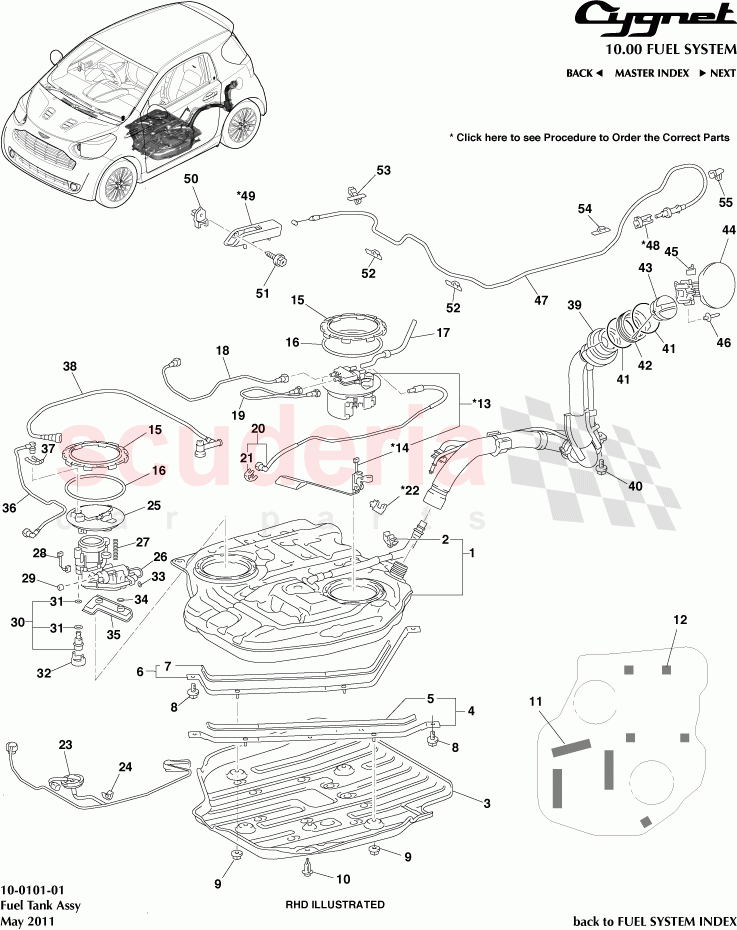

# Part Details Price
(each)
Qty on
Diagram
Add to
Cart
- 77010-74012
Tube Assy, Fuel Tank Vent
*From 04/2011
$191.73 1
- 83320-74011
Gage Assy
*From 05/2011
$100.16 1
- 77197-74010
Clamp, Evaporation Vent Tube
*From 12/2010
- 1 Enquire
- 77035-74010
Cable Sub Assy, Fuel Lid Lock Control, LHD
- 1 Enquire
- 77377-75010
Retainer, Fuel Filler Opening Lid Lock
*From 08/2010
- 1 Enquire
- 77306-52050
Lever Sub Assy, Fuel Lid Lock Opening, RHD
*From 09/2010
- 1 Enquire
- 77306-52040
Lever Sub Assy, Fuel Lid Lock Opening, LHD
*11/2008 to 09/2010
$33.43 1
- 77306-52060
Lever Sub Assy, Fuel Lid Lock Opening, LHD
*From 09/2010
- 1 Enquire
1 77001-74010
Tank Assy
- 1 Enquire
2 77196-12080
Clamp, Evaporation Vent Tube
- 1 Enquire
3 77606-74011
Protector Sub-Assy, Fuel Tank, No 1
$295.71 1
4 77602-74010
Band Sub-Assy, Fuel Tank, No 1 LH
- 1 Enquire
5 77681-21020
Seat, Fuel Tank Band, LH
- 1 Enquire
6 77601-74010
Band Sub-Assy, Fuel Tank, No 1 RH
- 1 Enquire
7 77681-21020
Seat, Fuel Tank Band, LH
- 1 Enquire
8 90119-10951
Bolt. W/Washer
$1.84 4
9 90179-06219
Nut, EL91
$1.14 4
10 90467-09227
Clip
$1.91 2
11 77652-74010
Cushion, Fuel Tank, No. 2
- 3 Enquire
12 77651-74010
Cushion, Fuel Tank, No. 1
- 5 Enquire
13 77010-74011
Tube Assy, Fuel Tank Vent
*12/2009 to 03/2011
$191.37 1
14 83320-74010
Gage Assy
*11/2008 to 04/2011
$99.80 1
15 77144-74010
Retainer, Fuel Pump Gauge
- 2 Enquire
16 77169-74010
Gasket, Fuel Tank Suction Tube
$9.98 2
17 77754-74010
Hose, Charcoal Canister Outlet, No.1, L=487
- 1 Enquire
18 77026-74010
Tube Sub-Assy, Fuel Evaporation, No. 1
- 1 Enquire
19 77027-74010
Tube Sub-Assy, Fuel Evaporation, No. 2
- 1 Enquire
20 77028-74010
Tube Sub-Assy, Fuel Emission, Rear
- 1 Enquire
21 96132-51100
Clamp, Fuel Hose
$2.14 1
22 77197-42020
Clamp, Evaporation Vent Tube
*05/2010 to 11/2010
- 1 Enquire
23 82413-74010
Wire, Fuel Tank
- 1 Enquire
24 77281-74010
Clamp, Fuel Hose
- 1 Enquire
25 77024-74010
Plate Sub-Assy, Fuel Suction
- 1 Enquire
26 23221-40010
Pump, Fuel
- 1 Enquire
27 77652-74020
Cushion, Fuel Tank, No.2
- 1 Enquire
28 77785-74010
Harness, Fuel Pump
- 1 Enquire
29 23225-0T010
Spacer, Fuel Pump
$7.42 1
30 23280-21010
Regulator Assy, Fuel Pressure
- 1 Enquire
31 90301-04013
O Ring, No.1
- 2 Enquire
32 77175-74010
Support, Fuel Suction, No.2
- 1 Enquire
33 90301-08020
O Ring
$4.13 1
34 90301-08019
O Ring, Fuel Pump
$4.34 1
35 23217-40011
Filter, Fuel Pump
$14.98 1
36 77209-74010
Tube Sub-Assy, Fuel Tank Main
- 1 Enquire
37 77241-33011
Clip, Tube Joint
- 1 Enquire
38 77017-74010
Tube Sub-Assy, Fuel Tank Vent
- 1 Enquire
39 77210-74030
Pipe, Fuel Tank Filler
$205.52 1
40 90119-10963
Bolt, W/Washer
$1.60 1
41 77391-12020
Ring, Fuel Inlet Box
- 2 Enquire
42 77291-52010
Shield, Fuel Tank Filler Pipe
- 1 Enquire
43 77300-52030
Cap Assy, Fuel Tank
$23.48 1
44 77350-74011
Lid Assy, Fuel Filler Opening
- 1 Enquire
45 77366-52010
Spring, Fuel Filler Opening Lid Hinge
- 1 Enquire
46 90269-06013
Rivet, Fuel Filler Opening Lid, MCV20
$0.46 2
47 77035-74020
Cable Sub Assy, Fuel Lid Lock Control, RHD
- 1 Enquire
48 77377-52020
Retainer, Fuel Filler Opening Lid Lock
*11/2008 to 07/2010
- 1 Enquire
49 77306-52030
Lever Sub Assy, Fuel Lid Lock Opening, RHD
*11/2008 to 09/2010
$33.43 1
50 64648-12020
Grommet, Luggage Door Lock Opening
- 1 Enquire
51 90159-60602
Screw, with Washer
$0.85 1
52 77333-74020
Clamp, Fuel Lid Lock Control Cable, No.2, RHD
- 2 Enquire
53 77333-74010
Clamp, Fuel Lid Lock Control Cable, No.1
- 1 Enquire
54 82711-2A250
Clamp, Fuel Lid Lock Control Cable
- 1 Enquire
55 77333-74030
Retainer, Fuel Filler Opening Lid Lock
- 1 Enquire
