Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy
- 44610-74030 - Booster Assy, Brake, AUTO 1 Enquire
- 47264-68010 - Clevis, Brake Master Cylinder Push Rod
*From 12/2010
1 Enquire
- 44763-74011 - Tube
*From 08/2010
1 Enquire
- 47201-74031 - Cylinder Sub-Assy, Brake, AUTO 1 Enquire
- 47220-74030 - Reservoir Sub-Assy, AUTO 1 Enquire

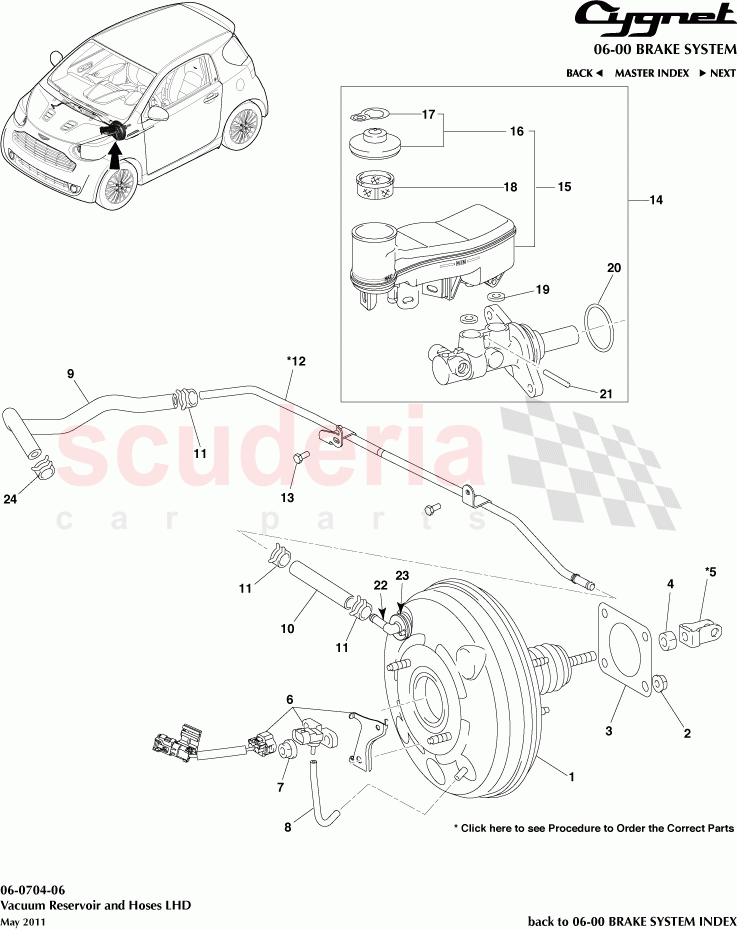

1 44610-74060 - Booster Assy, Brake, MANUAL 1 Enquire
2 90179-08038 - Nut, Brake Booster 4 $1.07
3 44785-16020 - Gasket, Brake Booster 1 Enquire
4 94120-41000 - Nut 1 $0.94
5 47264-63020 - Clevis, Brake Master Cylinder Push Rod
*To 11/2010
1 Enquire
6 89420-74010 - Sensor Assy, Vacuum, MAN 1 Enquire
7 94151-20600 - Nut, Flange 2 $0.75
8 44776-74020 - Hose, Brake Booster, MAN 1 Enquire
9 44774-74030 - Hose, Union to Check Valve 1 $31.85
10 44772-74020 - Hose, Check Valve to Brake Booster 1 Enquire
11 96133-41500 - Clip, Union to Check Valve 3 Enquire
12 44763-74010 - Tube
*To 07/2010
1 $46.71
13 91621-60614 - Screw 2 $2.02
14 47201-74051 - Cylinder Sub-Assy, Brake, MAN 1 Enquire
15 47220-74050 - Reservoir Sub-Assy, MAN 1 Enquire
16 47230-20140 - Cap Assy, Brake Master Cylinder Reservoir Filler 1 Enquire
17 47287-20010 - Lable, Brake Fluid Information 1 Enquire
18 47299-25010 - Strainer, Brake Master Cylinder Reservoir 1 Enquire
19 90029-48001 - Grommet, Master Cylinder Reservoir 2 Enquire
20 90015-AH002 - O Ring, Brake master Cylinder 1 Enquire
21 90029-15803 - Ring Pin, Brake Master Cylinder 1 Enquire
22 44730-12070 - Valve Assy, Vacuum Check, Brake 1 Enquire
23 90480-24439 - Grommet, Check Valve 1 Enquire
24 90467-16014 - Clip, Union to Check Valve 1 Enquire
