Find Your Part
# Part Qty on
Diagram
Price
(each)
Buy

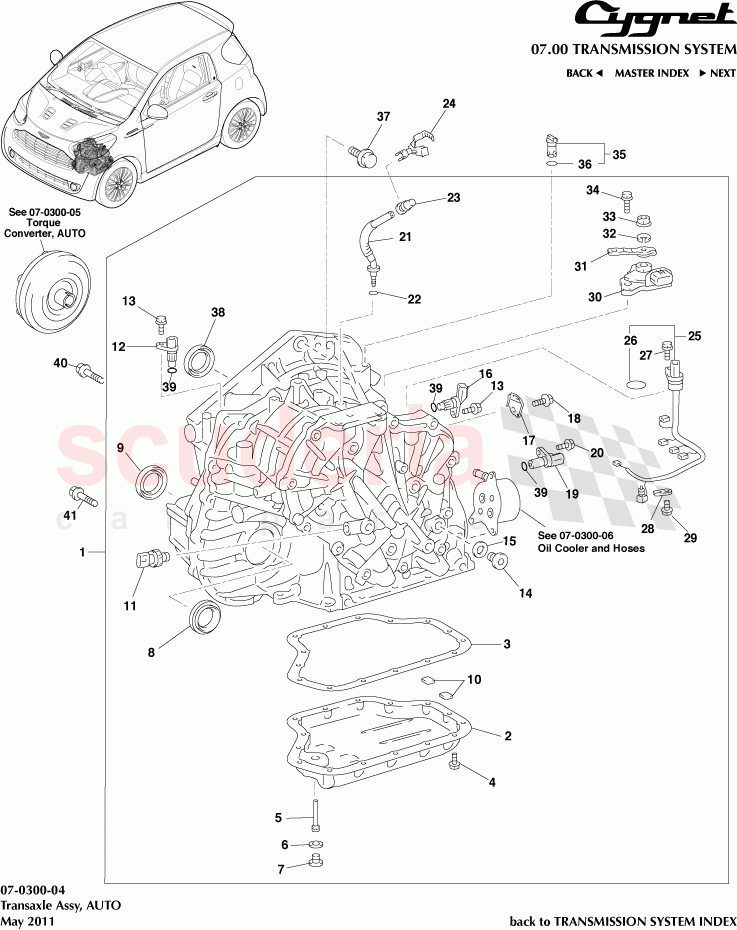

1 30400-74032 - Transaxle Assy, Continously Variable, K4 1 Enquire
2 35106-74020 - Pan Sub-Assy, Transaxle Oil (CVT) 1 Enquire
3 35168-74010 - Gasket, Transaxle Oil Pan (CVT) 1 Enquire
4 90119-06173 - Bolt, Transaxle Oil Pan 15 $0.69
5 35125-74010 - Tube, Transmission Oil Filler, No.1 1 Enquire
6 90430-12008 - Gasket, Drain Plug 1 Enquire
7 90341-12034 - Plug Sub-Assy, Drain (CVT) 1 Enquire
8 90311-34022 - Seal, Type T Oil, No.1 (CVT) 1 $13.66
9 90311-34023 - Seal, Type T Oil, No.2 (CVT) 1 Enquire
10 35394-48010 - Magnet, Oil Cleaner (CVT) 2 Enquire
11 89637-63010 - Sensor, Oil Pressure 1 Enquire
12 89413-28010 - Sensor, Transmission Revolution, No.2 1 Enquire
13 90119-06957 - Bolt, W/Washer 2 $0.82
14 90341-18061 - Plug, Straight 2 $4.55
15 90430-18008 - Gasket, Drain P F392 1 $1.13
16 89413-12020 - Sensor, Transmission Revolution, No,1 1 Enquire
17 82715-74360 - Bracket, Wiring 1 $4.01
18 91671-80816 - Bolt, Flange 1 Enquire
19 89413-60020 - Sensor, Transmission Revolution, No.3 1 Enquire
27 90105-W0032 - Bolt, Flange 1 $0.75
21 35012-74010 - Hose Sub-Assy, Transmission Breather 1 Enquire
22 90301-06010 - O Ring, Breather Plug 1 Enquire
23 90930-03149 - Plug, Breather, No.1 (CVT) 1 Enquire
24 90464-00888 - Clamp 1 $3.64
25 82125-74010 - Wire, Transmission 1 Enquire
26 90301-21009 - O Ring 1 $3.30
28 35482-73010 - Clamp, Temperature 1 $3.72
29 91551-80612 - Bolt, Flange F207 1 $0.98
30 84540-74010 - Switch Assy, Neutral Start, AUTO 1 Enquire
31 35572-74010 - Lever, Transmission Control Shaft 1 Enquire
32 94512-00800 - Washer, Spring 1 $0.95
33 94110-50800 - Nut 1 $1.51
34 91651-40620 - Bolt, W/Washer 2 $0.94
35 35150-44010 - Plug Assy, Transmission Case 1 Enquire
36 90301-09173 - O Ring, Transmission Case Plug 1 Enquire
37 90105-W0046 - Bolt, Transaxle and Engine Setting 2 $2.08
38 90311-42039 - Seal, Type T Oil, (CVT Oil Pump) 1 Enquire
39 90301-11008 - O Ring, Transmission Revolution 1 Enquire
40 91552-81045 - Bolt, Flange CF09 2 $1.51
41 90105-10540 - Bolt, Flange 5 $1.16
