Aston Martin Cygnet - Rear Suspension Spring and Damper Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4823174020 Spring, Coil, Rear LH $89.31 To Order
Photo Part No Description Price (each) Stock
482570D010 Insulator, Rear Coil Spring, Upper LH $13.21 To Order
Photo Part No Description Price (each) Stock
482580D050 Insulator, Rear Coil Spring, Lower LH $13.78 To Order
Photo Part No Description Price (each) Stock
4853074040 Absorber Assy, Shock, Rear LH $61.99 To Order
Photo Part No Description Price (each) Stock
90119W0124 Bolt, Flange $3.29 To Order
Photo Part No Description Price (each) Stock
9017810022 Nut, Flange $2.01 To Order
Photo Part No Description Price (each) Stock
487500D050 Support Assy, Rear Suspension LH $52.38 To Order
Photo Part No Description Price (each) Stock
487520D010 Stopper, Rear Suspension Support $14.72 To Order
Photo Part No Description Price (each) Stock
487550D070 Support, Rear Suspension $21.83 To Order
Photo Part No Description Price (each) Stock
9020110320 Washer, Plate $7.75 To Order
Photo Part No Description Price (each) Stock
9413061000 Nut $1.74 To Order
Photo Part No Description Price (each) Stock
4855352010 Cap, Rear Shock Absorber LH $6.98 To Order
View All

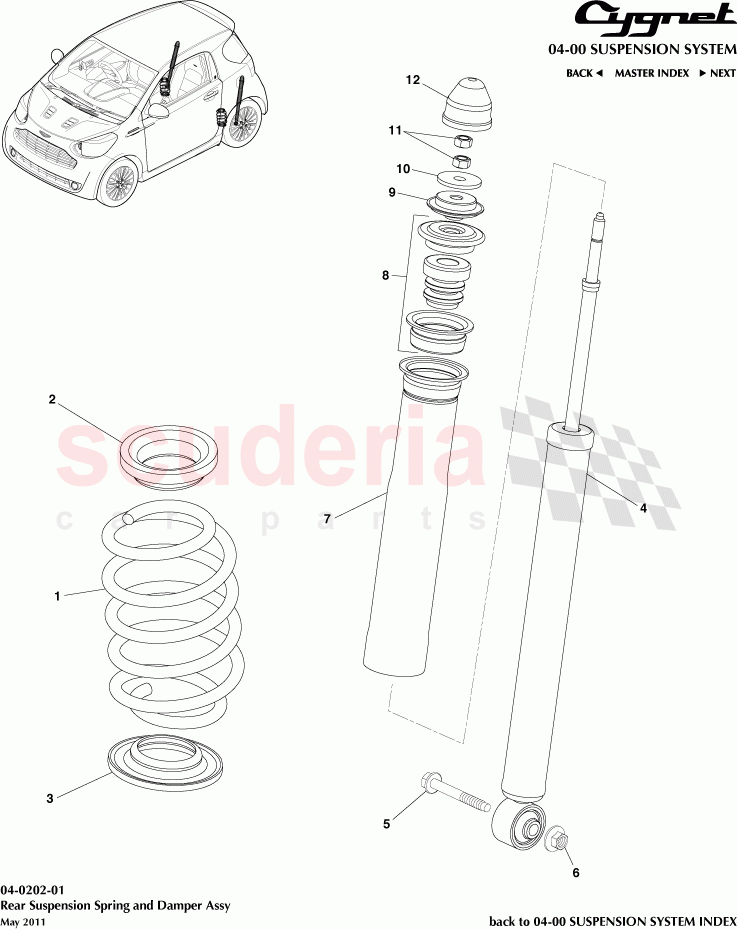

Rear Suspension Spring and Damper Assembly of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4823174020
Spring, Coil, Rear LH 		$89.31 1
- 482570D010
Insulator, Rear Coil Spring, Upper LH 		$13.21 1
- 482580D050
Insulator, Rear Coil Spring, Lower LH 		$13.78 1
- 4853074040
Absorber Assy, Shock, Rear LH 		$61.99 1
- 487500D050
Support Assy, Rear Suspension LH 		$52.38 1
- 4855352010
Cap, Rear Shock Absorber LH 		$6.98 1
1 4823174020
Spring, Coil, Rear LH 		$89.31 1
2 482570D010
Insulator, Rear Coil Spring, Upper LH 		$13.21 1
3 482580D050
Insulator, Rear Coil Spring, Lower LH 		$13.78 1
4 4853074040
Absorber Assy, Shock, Rear LH 		$61.99 1
5 90119W0124
Bolt, Flange
One per side 		$3.29 2
6 9017810022
Nut, Flange
One per side 		$2.01 2
7 487500D050
Support Assy, Rear Suspension LH 		$52.38 1
8 487520D010
Stopper, Rear Suspension Support
One per side 		$14.72 2
9 487550D070
Support, Rear Suspension 		$21.83 1
10 9020110320
Washer, Plate 		$7.75 1
11 9413061000
Nut
Two per side 		$1.74 4
12 4855352010
Cap, Rear Shock Absorber LH 		$6.98 1
