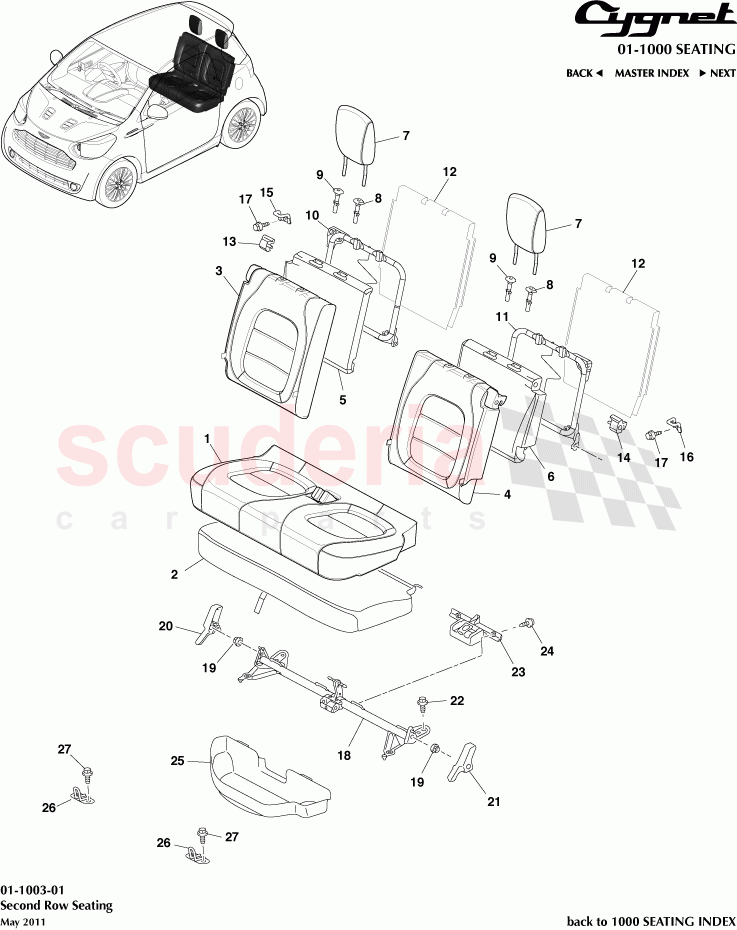

# Part Qty on
Diagram
Price
(each)
Buy
1 AY2Y-63804-ADW - Seat Cushion Cover Assy, Rear 1 $1,798.11
2 AY2Y-A63840-AA - Pad, Rear Seat Cushion 1 Enquire
3 AY2Y-644B22-ADW - Seat Squab Cover Assy, Rear RHS 1 Enquire
4 AY2Y-644B23-ADW - Seat Squab Cover Assy, Rear LHS 1 Enquire
5 AY2Y-64624-AA - Pad, Rear Seat Squab, RH 1 Enquire
6 AY2Y-64625-AA - Pad, Rear Seat Squab, LH 1 Enquire
7 AY2Y-50109-ABW - Headrest Assy, Rear 2 $1,357.27
8 71930-44020-C0 - Support, Rear Headrest, with Lock 2 $14.88
9 71931-47010-C0 - Support, Rear Headrest, without Lock 2 $0.42
10 71017-74010 - Frame Sub Assy, Rear Seat Back RH 1 Enquire
11 71018-74010 - Frame Sub Assy, Rear Seat Back LH 1 Enquire
12 71147-74010 - Silencer, Rear Seat Spring 2 Enquire
13 72630-74010-C0 - Lock assy, Rear Seat Back RH 1 Enquire
14 72640-74010-C0 - Lock assy, Rear Seat Back LH 1 Enquire
15 72601-74020 - Striker Sub Assy, Rear Seat Back Lock, RH 1 Enquire
16 72602-74010 - Striker Sub Assy, Rear Seat Back Lock, LH 1 Enquire
17 91671-80820 - Bolt, Transmission Control Cable Bracket 2 Enquire
18 73705-74010 - Bracket Sub Assy, Cross Anchor 1 Enquire
19 90179-10087 - Nut 2 $1.35
20 71778-74010-C0 - Cover, Rear Seat Side Hinge Male, RH 1 Enquire
21 71779-74010-C0 - Cover, Rear Seat Side Hinge Male, LH 1 Enquire
22 90119-10945 - Bolt & Washer 6 Enquire
23 73311-74010-C0 - Cover, Rear Seat Belt Buckle Upper 1 Enquire
24 90167-40044 - Screw, Pan Tapping AE90 2 $0.94
25 78950-74010 - Tray Sub Assy, Rear Seat Under 1 Enquire
26 72607-74010 - Striker Sub Assy, Rear Seat Cushion Lock 2 Enquire
27 91673-80616 - Bolt, Flange, W/Washer 2 $0.75
