Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B823021AD012 BONNET $17,283.65 To Order
47B823021M012 BONNET $17,283.65 To Order
47B823033MGRU BONNET $53,419.15 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4T0827301B HINGE $220.03 To Order
4T0827302B HINGE $220.03 To Order
Photo Part No Description Price (each) Stock
47B823179 LOCK REINFORCEMENT $171.11 To Order
Photo Part No Description Price (each) Stock
4T0853745A LAMBORGHINI EMBLEM $424.79 To Order
Photo Part No Description Price (each) Stock
47B823535A BOWDEN CABLE $126.62 To Order
Photo Part No Description Price (each) Stock
47B823531B BOWDEN CABLE $88.01 To Order
Photo Part No Description Price (each) Stock
420810773 THROTTLE CONTROL ELEMENT $113.97 To Order
Photo Part No Description Price (each) Stock
47B823359A GAS FILLED STRUT $105.58 To Order
Photo Part No Description Price (each) Stock
8W0823661D RELEASE LEVER $4.27 To Order
Photo Part No Description Price (each) Stock
4M0823509C LID LOCK WITH MICRO- SWITCH $152.98 To Order
Photo Part No Description Price (each) Stock
47B823728 SEAL FOR BONNET $269.58 To Order
Photo Part No Description Price (each) Stock
4B0823481 STOP BUFFER $4.39 IN STOCK
Photo Part No Description Price (each) Stock
N10609204 HEXAGON COLLAR NUT $2.08 IN STOCK
Photo Part No Description Price (each) Stock
N10006706 HEXAGON HEAD BOLT (COMBI) $2.70 IN STOCK
Photo Part No Description Price (each) Stock
895827439D BALL STUD $8.40 IN STOCK
Photo Part No Description Price (each) Stock
WHT006115 BELT RIVET $1.33 To Order
Photo Part No Description Price (each) Stock
N91186001 BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING $2.26 IN STOCK
Photo Part No Description Price (each) Stock
420955997 GROMMET $2.76 IN STOCK
Photo Part No Description Price (each) Stock
N90839902 DOMED CAP NUT $2.65 To Order
Photo Part No Description Price (each) Stock
N90739704 PANEL SCREW $0.90 IN STOCK
Photo Part No Description Price (each) Stock
3D0971838K CABLE TIES WITH BRACKET $1.15 IN STOCK
Photo Part No Description Price (each) Stock
N90937701 CABLE TIES $1.57 IN STOCK
Photo Part No Description Price (each) Stock
N90997501 HOSE BRACKET $0.62 To Order
Photo Part No Description Price (each) Stock
47B877665 STOP BUFFER $14.80 To Order
47B805803H STOP BUFFER $48.02 To Order
View All

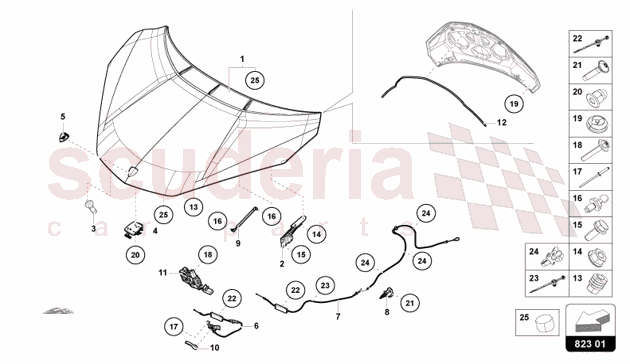

FRONT of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B823021AD012
BONNET
NOT FOR CHINA SOUTH KOREA AND JAPAN-PRIMED 		$17,283.65 1
1 47B823021M012
BONNET
NOT FOR CHINA SOUTH KOREA AND JAPAN-PRIMED 		$17,283.65 1
1 47B823033MGRU
BONNET
NOT FOR SOUTH KOREA, CHINA AND JAPAN - CARBON LOOK MATT-PRIMED 		$53,419.15 1
1 47B823033NGRU
BONNET
NOT FOR SOUTH KOREA, CHINA AND JAPAN - CARBON SHINY-PRIMED 		$50,153.71 1
1 47B823033M001
CARBON MATT
NOT FOR SOUTH KOREA, CHINA AND JAPAN - CARBON LOOK MATT 		$55,976.37 1
1 47B823033N001
CARBON
NOT FOR SOUTH KOREA, CHINA AND JAPAN - CARBON SHINY-SHINY 		$52,641.97 1
1 47B823021P012
BONNET
ONLY FOR SOUTH KOREA, CHINA AND JAPAN-PRIMED 		$17,496.79 1
1 47B823033FGRU
BONNET
CARBON MATT - ONLY FOR SOUTH KOREA, CHINA AND JAPAN-PRIMED 		$47,728.13 1
1 47B823033GGRU
BONNET
CARBON SHINY - ONLY FOR SOUTH KOREA, CHINA AND JAPAN-PRIMED 		$47,728.13 1
1 47B823021AF012
BONNET
ONLY FOR SOUTH KOREA, CHINA AND JAPAN-PRIMED 		$17,283.65 1
1 47B823033F001
CARBON MATT
CARBON MATT - ONLY FOR SOUTH KOREA, CHINA AND JAPAN 		$50,285.34 1
1 47B823033G001
CARBON
CARBON SHINY - ONLY FOR SOUTH KOREA, CHINA AND JAPAN-SHINY 		$50,228.94 1
2 4T0827301B
HINGE
LEFT 		$220.03 1
2 4T0827302B
HINGE
RIGHT 		$220.03 1
4 47B823179
LOCK REINFORCEMENT 		$171.11 1
5 4T0853745A
LAMBORGHINI EMBLEM
FRONT 		$424.79 1
6 47B823535A
BOWDEN CABLE 		$126.62 1
7 47B823531B
BOWDEN CABLE 		$88.01 1
8 420810773
THROTTLE CONTROL ELEMENT 		$113.97 1
9 47B823359A
GAS FILLED STRUT 		$105.58 1
10 8W0823661D
RELEASE LEVER 		$4.27 1
11 4M0823509C
LID LOCK WITH MICRO- SWITCH 		$152.98 1
12 47B823728
SEAL FOR BONNET 		$269.58 1
13 4B0823481
STOP BUFFER
IN STOCK 		$4.39 (38.4% off) 1
14 N10609204
HEXAGON COLLAR NUT
M8
IN STOCK 		$2.08 (71.7% off) 1
15 N10006706
HEXAGON HEAD BOLT (COMBI)
M8X22
IN STOCK 		$2.70 1
16 895827439D
BALL STUD
IN STOCK 		$8.40 1
17 WHT006115
BELT RIVET
3,2X14 		$1.33 (81.5% off) 1
18 N91186001
BOLT, HEX. HD. WITH SHOULDER, SELF-LOCKING
M6X35
IN STOCK 		$2.26 1
19 420955997
GROMMET
IN STOCK 		$2.76 (32.7% off) 1
20 N90839902
DOMED CAP NUT 		$2.65 1
21 N90739704
PANEL SCREW
5X22
IN STOCK 		$0.90 (87.6% off) 1
22 3D0971838K
CABLE TIES WITH BRACKET
IN STOCK 		$1.15 (84.1% off) 1
23 N90937701
CABLE TIES
4.6X193 OUTER
IN STOCK 		$1.57 (21.5% off) 1
24 N90997501
HOSE BRACKET
6/4,8-6 BLACK 		$0.62 (91.5% off) 1
25 47B877665
STOP BUFFER
APPLY WITH 3M ACRYLIC PLUS TAPESERIES PT1000-ORDER ONLY WITH 47B823021M/P 		$14.80 1
25 47B805803H
STOP BUFFER
ORDER ONLY WITH 47B823021AD/AF 		$48.02 1
26 47B823195
SUPPORT
ORDER ONLY FOR WATER JET NOZZLE 85H955987B 		$125.39 1
26 47B823196
SUPPORT
ORDER ONLY FOR WATER JET NOZZLE 85H955988B 		$125.39 1
27 47B823351
BRACKET 		$177.39 1
28 8Y0823529
RELEASE ELEMENT 		- 1 Enquire
